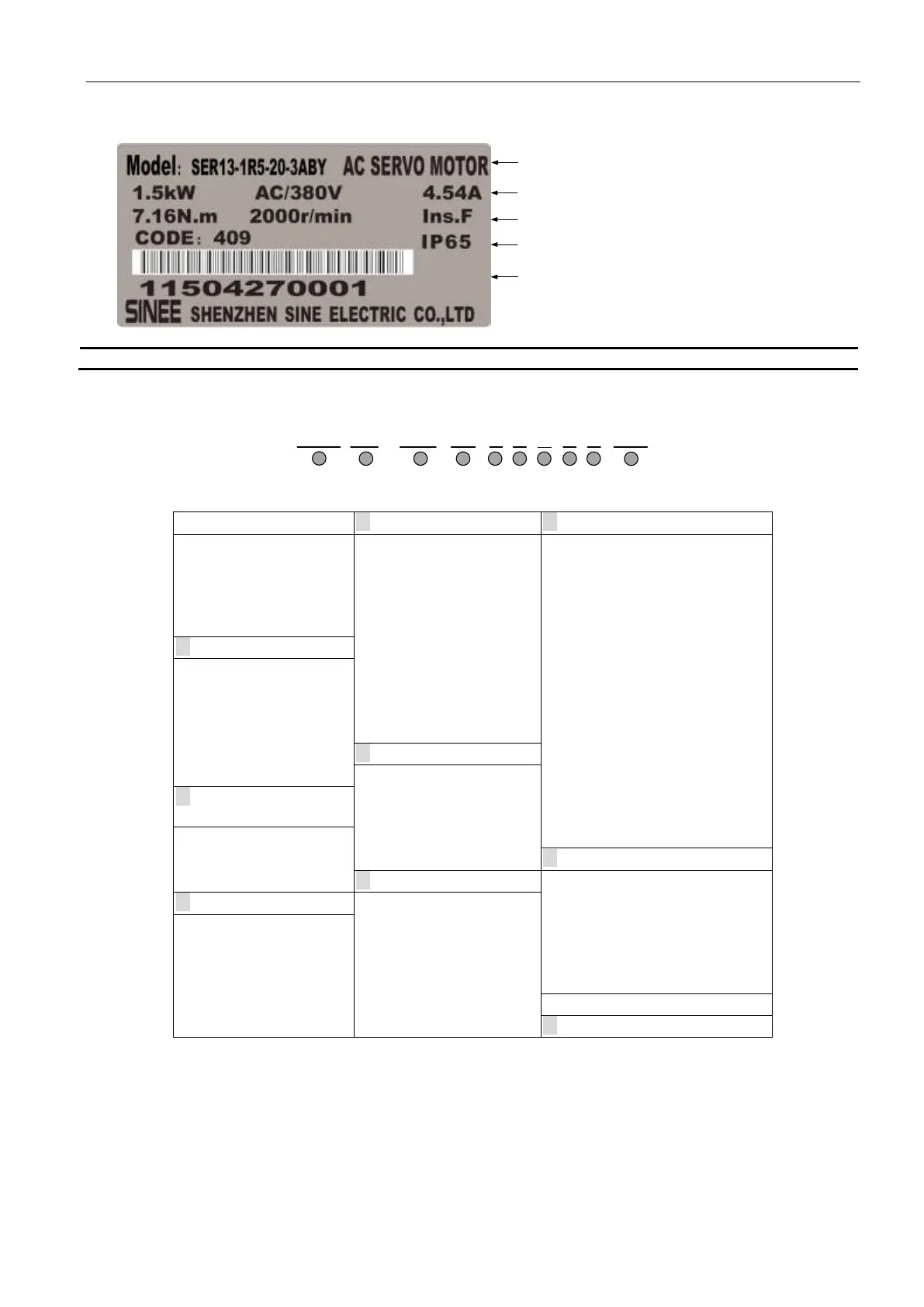

1.2 Servo motor
1.2.1 Description of the nameplate
Motor type
Rated output power Rated input voltage Rated current
Rated torque Rated speed Insulation class
Barcode and Serial number
Motor code Protection grade
Note: The actual wording on the nameplate may be different from above picture
1.2.2 Model Description
SER 08 - 0R7- 30 - 2
A
1
A
Y
2 3 4 6 75 8 9
-
XX
10
1
① product series
② Motor flange size
③ Rated motor output power
SER：standard servo motor
04：40mm
0R1：100W
SES：high performance servo
motor
06：60mm
0R2：200W
08：80mm
0R4：400W
09：86mm
0R7：750W
④ Rated motor speed
11: 110mm
1R0：1000W
10：1000rpm
13：130mm
1R5：1500W
15：1500rpm
18：180mm
2R0：2000W
20：2000rpm
25：2500rpm
3R0：3000W
30：3000rpm
⑦ Inertia type
4R5：4500W
A：Low inertia
5R6：5600W
⑤ Voltage class
B：Medium inertia
7R5：7500W
011: 11000W
2：220V
C：High inertia
3：380V
⑨ Optional
⑧ Shaft end
Null：No option
⑥ Encoder type
X: shaft without keyway
1：with brake（DC24V）
A：2500ppr
Y：Shaft with U-shaped slot and
screw hole
2：with oil seal
B：17bit incremental
C: 17 bit absolute
Z：Shaft with double-circle slot
and screw hole
3：with brake and oil sea
F：23bit absolute
⑩ Special specifications
*: Some varieties may be double round keyway, but except the 130 flange motor, the width and height of the key are the same as
those of the U keyway. See Chapter 10.
The above 10 types of servo motor elements are not optional, please refer to the selection guide or consult
the company.
