*3：Motor with brake, if not listed separately in ( ), increase their rotational inertia by 0.02Kg.cm2.
Note: the value in ( ) is for the motor with brake.

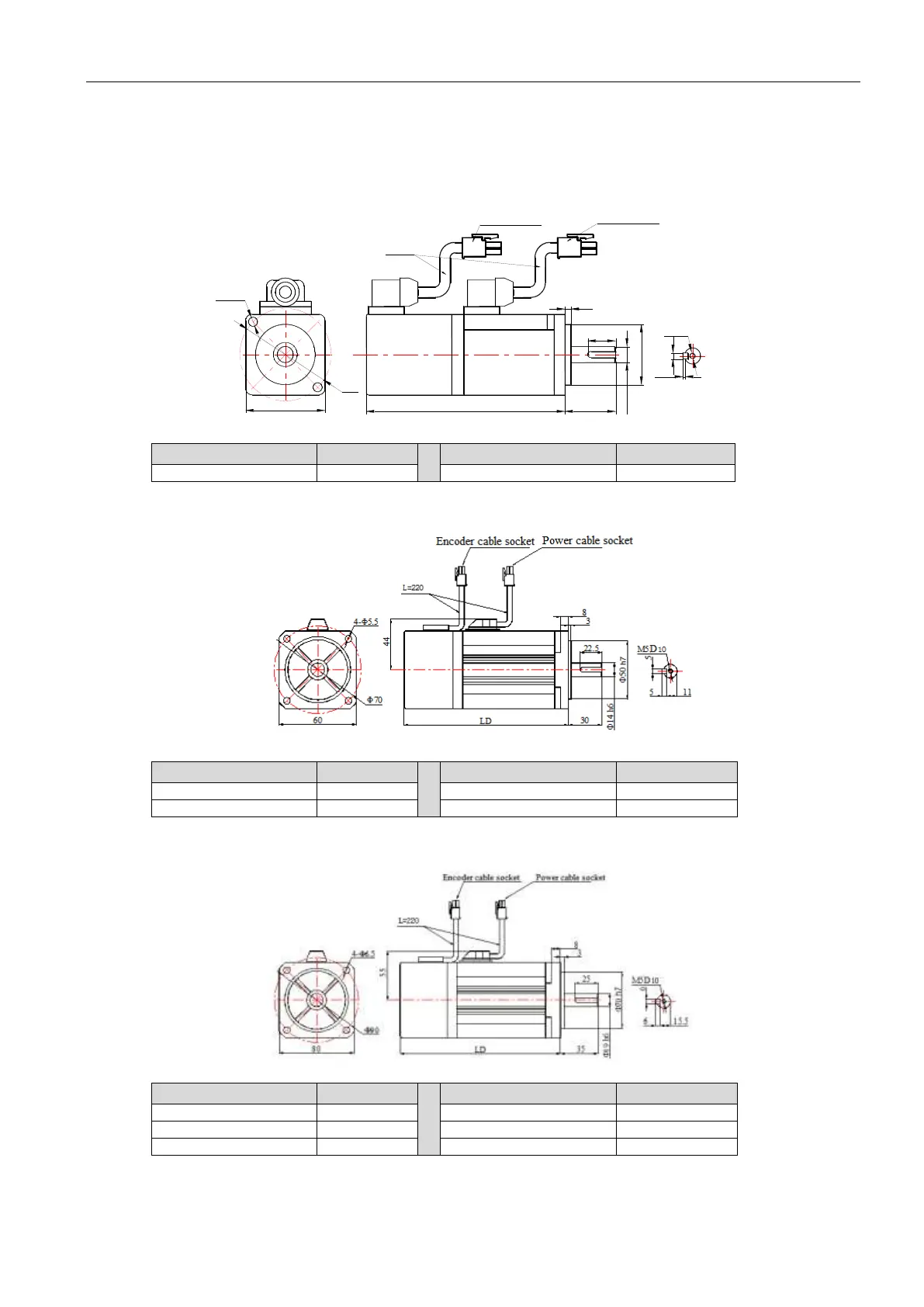

8.4 Servo motor dimensions
8.4.1 40 flange servo motor, installation sizes in：mm
LD
M3深6
30
40
46
2-4.5
14
3
25.5
8 h7
1.2
3
L=220
动力线缆插座
编码器线缆插座
LD Sizes vary with different models：
Motor model
LD
Motor model
LD
SES04-0R1-30-2□AY
100.5mm
SES04-0R1-30-2□AY1
133.5mm
8.4.2 60 flange servo motor, installation sizes in: mm
LD Sizes vary with different models：
Motor model
LD
Motor model
LD
SER06-0R2-30-2□AY
113.5mm
SER06-0R2-30-2□AY1
147.0mm
SER06-0R4-30-2□AY
133.0mm
SER06-0R4-30-2□AY1
168.0mm
8.4.3 80 flange servo motor, installation sizes in：mm
LD Sizes vary with different models：
Motor model
LD
Motor model
LD
SER08-0R7-30-2□AY
142.5mm
SER08-0R7-30-2□AY1
173.0mm
SER08-0R7-20-2□AY
171.5mm
SER08-0R7-20-2□AY1
203.0mm
SER08-1R0-30-2□AY
171.5mm
SER08-1R0-30-2□AY1
203.0mm
8.4.4 86 flange servo motor, installation sizes in: mm
