EA180 Servo Drive Manual
77

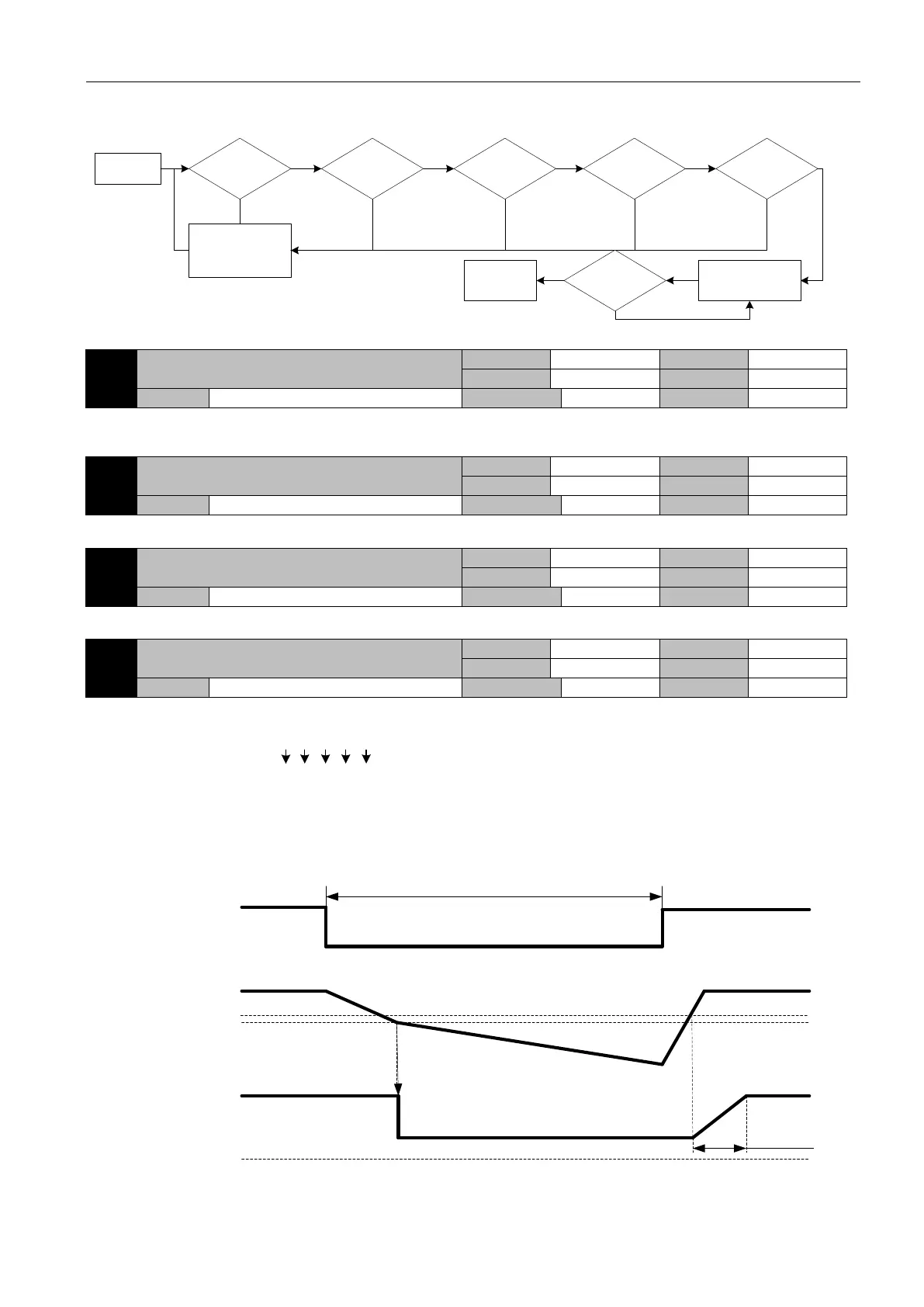

Motor blocking judgement logic:
Motor output torque
is limited to P8-17
Motor speed <
P8-15
Duration > P8-
16
Output torque >
P8-14
P8-15=0
N
Y
Continuous output
as per current torque
command
Drive
running
NN N
YYY
Speed command
far more than
P8-15
Y
N
Satisfy overload
protection?
Alarm
N
Y
P8-15
The speed of motor stall judgment
Initial value
50
Commu.addr.
080FH
Unit
rpm
Valid time
Immediately
Range
0~500(0: turn off stall judgement)
Data size
16bit
Control mode
P S T
Parameter function: when opening the motor block protection, set the maximum motor speed at which to determine whether the
motor is in a locked state.
P8-16
The time of motor stall judgment
Initial value
100
Commu.addr.
0810H
Unit
ms
Valid time
Immediately
Range
50~2000
Data size
16bit
Control mode
P S T
Parameter function: when the motor block protection is started, a duration is set to judge at which whether the motor is locked.
P8-17
Motor Stall Restriction Torque
Initial value
100.0
Commu.addr.
0811H
Unit
%
Valid time
Immediately
Range
0.0~150.0
Data size
16bit
Control mode
P S T
Parameter function: when the motor block protection is started, the maximum torque is set to judge if the motor is blocked.
P8-18
Function switch 1
Initial value
00100B
Commu.addr.
0812H
Unit
-
Valid time
Immediately
Range
00000B~11111B
Data size
16bit
Control mode
P S T
Parameter function
bit0bit1bit2bit3
bit4
000 0 0
bitX=0：function closed
bitX=1：function opened
P8-18 bit0: torque limiting function when the main circuit voltage drops
bit0=0: turn off the torque limit function when the main circuit voltage drops, P8-22 and P8-23 are invalid
bit0=1: turn on the torque limit function when the main circuit voltage drops. When the bus voltage is detected to be less than 80%
of the rated value, the motor output torque will be limited to the value set by P8-22. This function is combined with the
instantaneous power outage function to continue operation when the supply voltage is low, so as to avoid shutdown due to an alarm.
Mains supply
Bus voltage
Torque limiting
By torque limit, delay in bus
voltage drop
Bus voltage rises after
power restored
P8-23 setting value
P8-22 setting value
Mains circuit power
switched off time
310
250
0
%
Torque limiting
start
P8-18 bit1: instantaneous power outage maintenance function
bit1=0: turn off the instantaneous power outage maintenance function
