SM ALFOplus2 - Dual Odus, 2 Hybrid and DP Antenna; Dual Odus and DP Antenna

MN.00356.E - 003 21
5.6.3 Dual ODUs, 2 hybrid and DP antenna
The following configurations can be obtained by a DP antenna, not integrated, and 2 hybrids as in Fig.10:
2+2 AP SW/HSBY prot, 2+2 XPIC SW/HSBY prot, 2+2 XPIC FD prot, 4+0 XPIC.

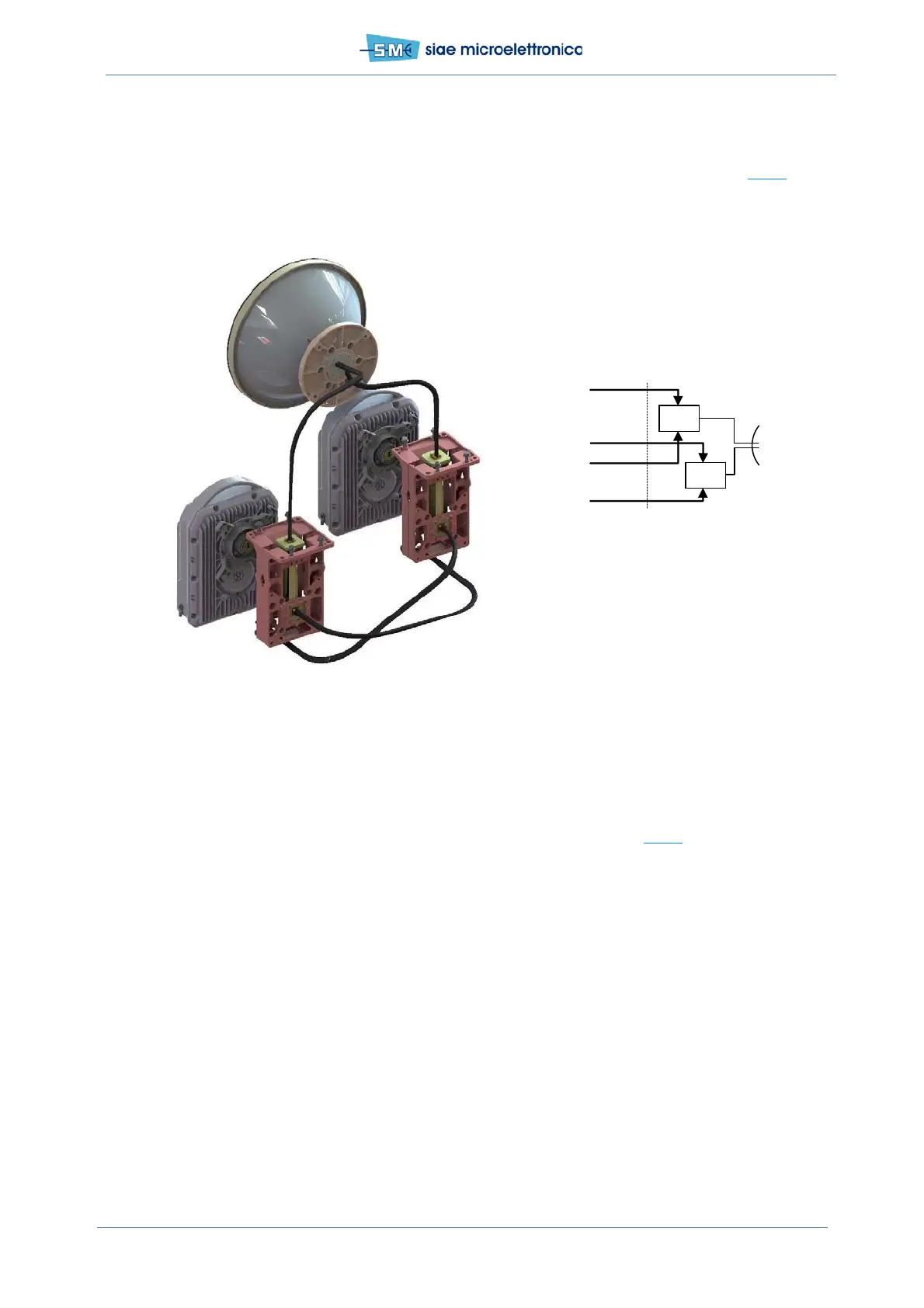

Fig.10 - Configuration with 2 external hybrids and a not integrated DP antenna
5.6.4 Dual ODUs and DP antenna
The following configurations can be obtained by a not integrated DP antenna as in Fig.11: 2+2 AP FD prot,
4+0 AP.
HYB
HYB
H
V
