• rotate 30° clockwise the ODU to hook each slots on the relevant bolt
• when each slot is firmly hooked on the relevant bolt, tighten each bolt (use 15mm spanner,
torque=46mm).

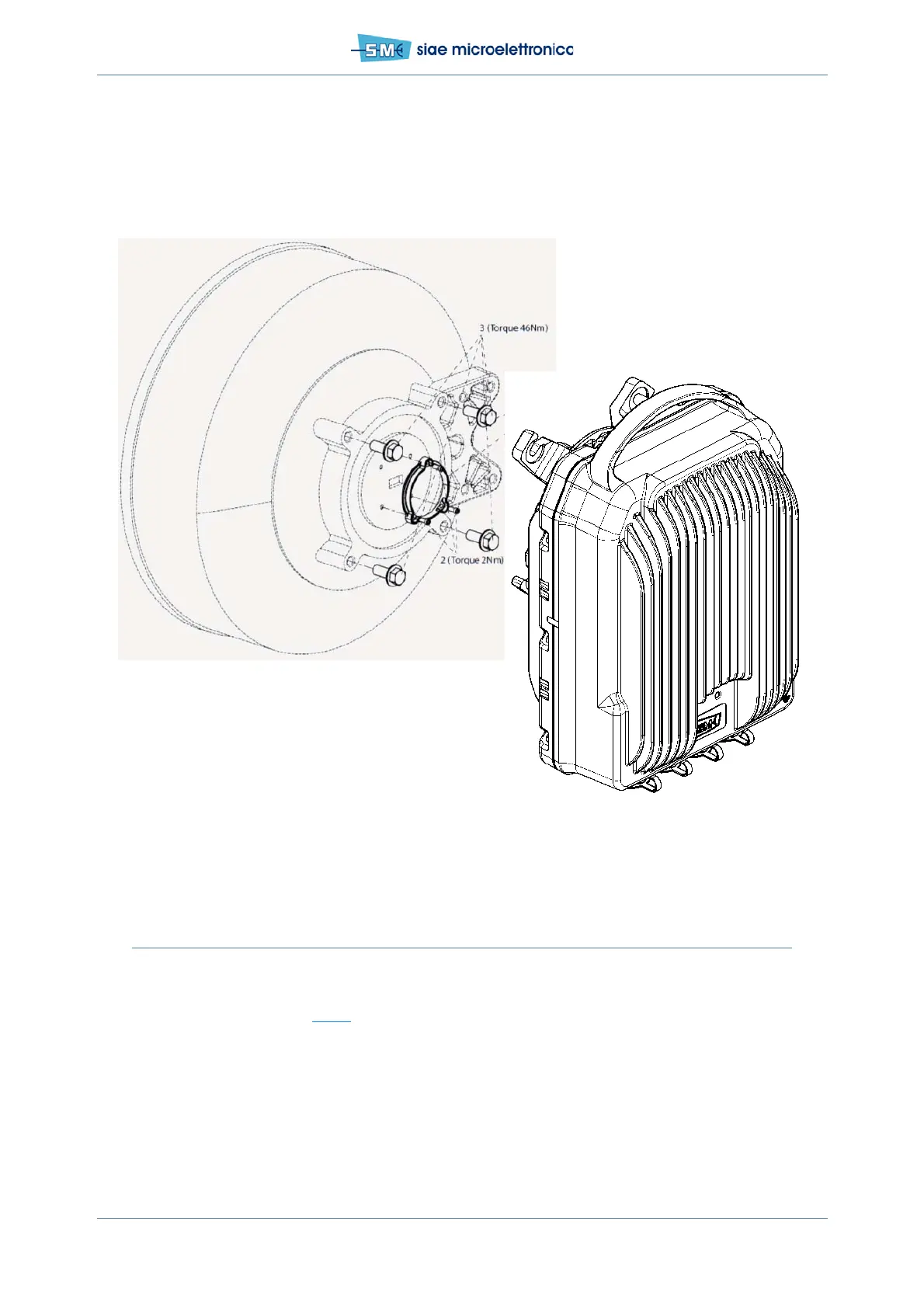

Fig.21 – Installation of single flange ALFOplus2 over the antenna
7.10 ODU INSTALLATION – OMT OUTPUT FLANGE
Only for OMT ALFOplus2 the mounting flange is the Z22011 with closed slot in upper position according to
the position of the pole (see Fig.22
).
Use centring ring and relevant screws and the 4 M10 bolts to install the mounting flange on the ALFOplus2.
