9 BRIDGE MODE (WEBLCT AND CLI)
9.1 BRIDGE MODE
• Customer Bridge CB (ETHERTYPE 0x8100)
• Provider Bridge PCB (ETHERTYPE 0x9100 or 0x88A8)
• Provider Edge Bridge PEB (ETHERTYPE any).
In WEBLCT select Base Band menu, Ethernet, Bridge Mode Conf.:
• Select the Bridge Mode: Customer Bridge
• Click Apply and Confirm
...the ALFOplus2 restarts automatically (traffic affecting).

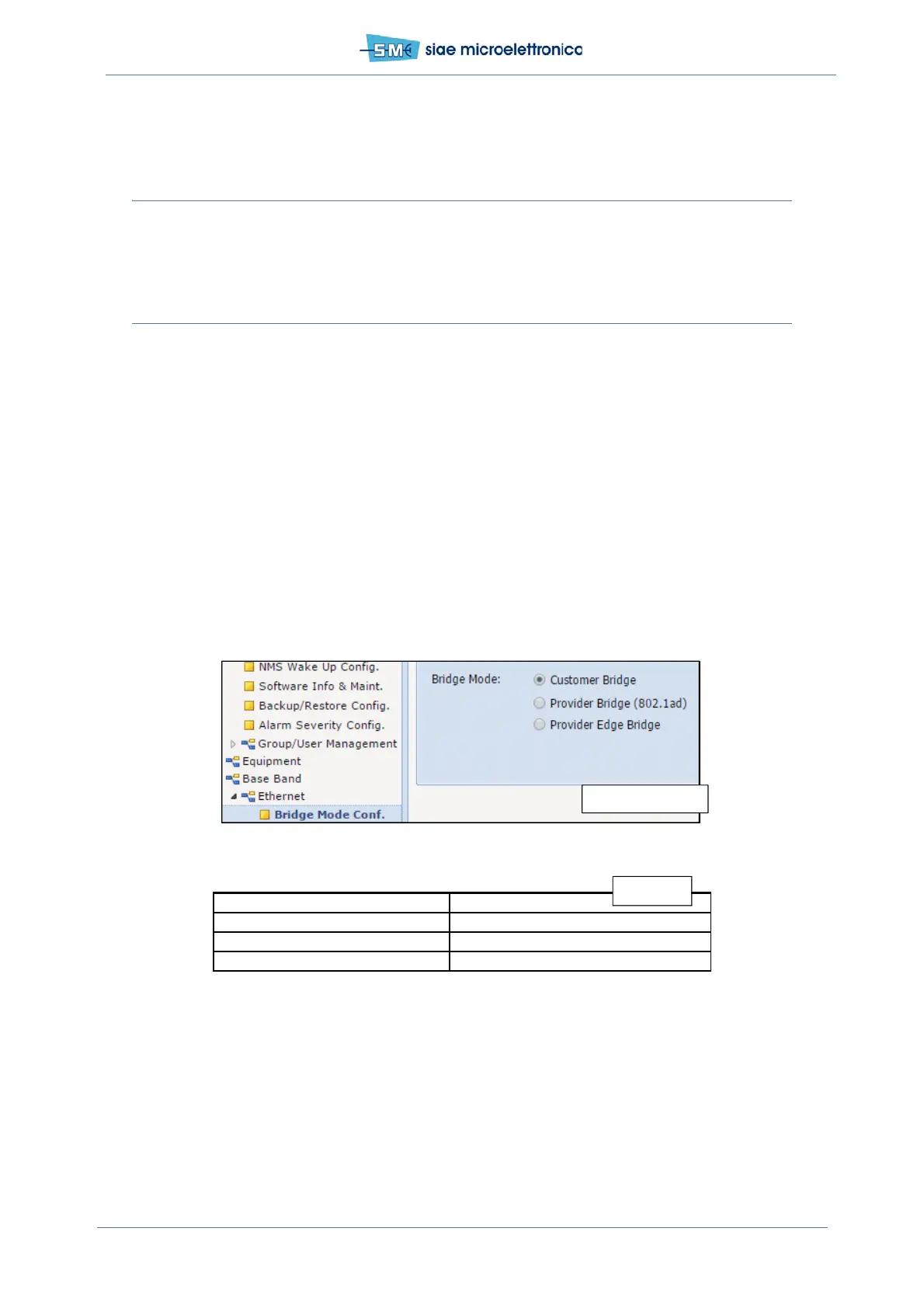

Fig.39 - Bridge mode setting (Customer Bridge is default)
Via CLI
Via WEBLCT
Command
Purpose
SM-OS# c t; bridge-mode customer
SM-OS# c t; bridge-mode provider-core
SM-OS# c t; bridge-mode provider-edge
#Enable Customer Bridge (802.1q)
#Enable Provider Bridge (802.1ad)
# Enable Provider Edge Bridge
