6.3 LOOPS
To check the correct operation a set of local and remote loops are made available. The commands are for-
warded by the WebLCT program. The loop is a manual operation that can be activated for a timeout period
specified by operator (0-172800sec.). The available loop facilities are:
• loopback on Ethernet LAN PORT (1)
• loopback on TRx port (2)
• I/Q loop: activation command of I/Q loop operates on both branch; RF transmission is squelched
(3).

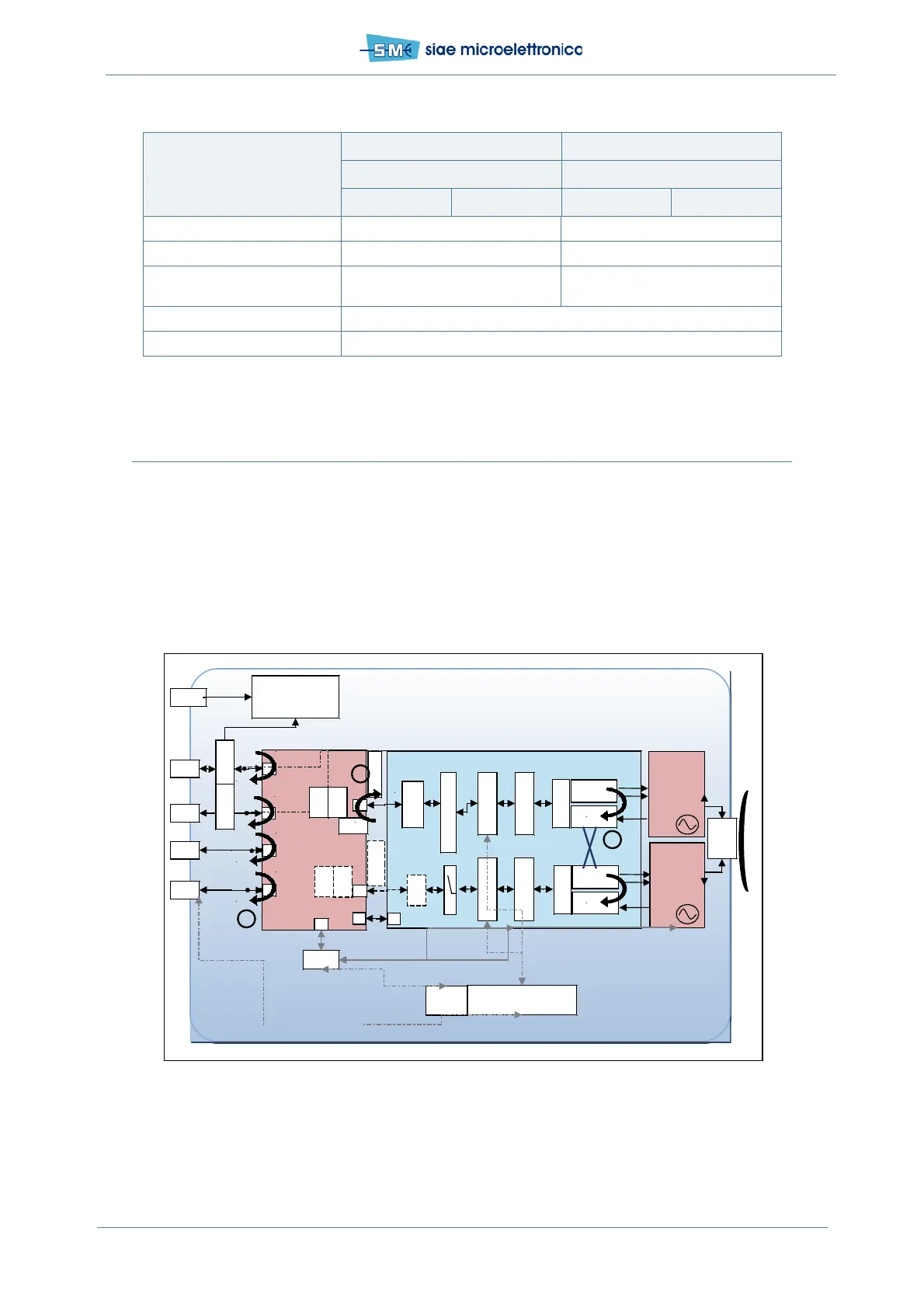

Fig.15 - Available loops
Receive sensitivity -17 dBm -22 dBm
Average receive power max 0 dBm 0 dBm
Compliance 1000BaseSX
IEEE 802.3z
2500BaseX
IEEE 802.3z
Transceiver type Pluggable
Connector type LC
Parameter
Gigabit 2.5 Gbps
Multi Mode Multi Mode
50/125 m 62.5/125 m 50 m 62.5/125 m
Frame Processing & Modem
Eth. Switch
(Packet Process)
LAN4
LAN3
LAN1
LAN2
Power
µP
POE
Main DC/DC,
Aux DC/DC
Radio1
Radio2
HC
I/Q
IF
Framer
Split/combine
TXmod
RXdem
MD-Ch1
RF-unit1
TX/RX
channel1
RF-unit2
TX/RX
channel2
HC
I/Q
IF
Framer
TXmod
RXdem
MD-Ch2
Ant.
module
QoS
Frag
QoS
Frag
OL1
OL2
Protection
Protection
Cntr Ch
data, prot. protocol
ACM/ATPC
To/From other ODU
POE
TRX
1
2
3
