SM ALFOplus2 - PCB Example

86 MN.00356.E - 003
- Bridge Port Type Customer Bridge
• push Apply and confirm.

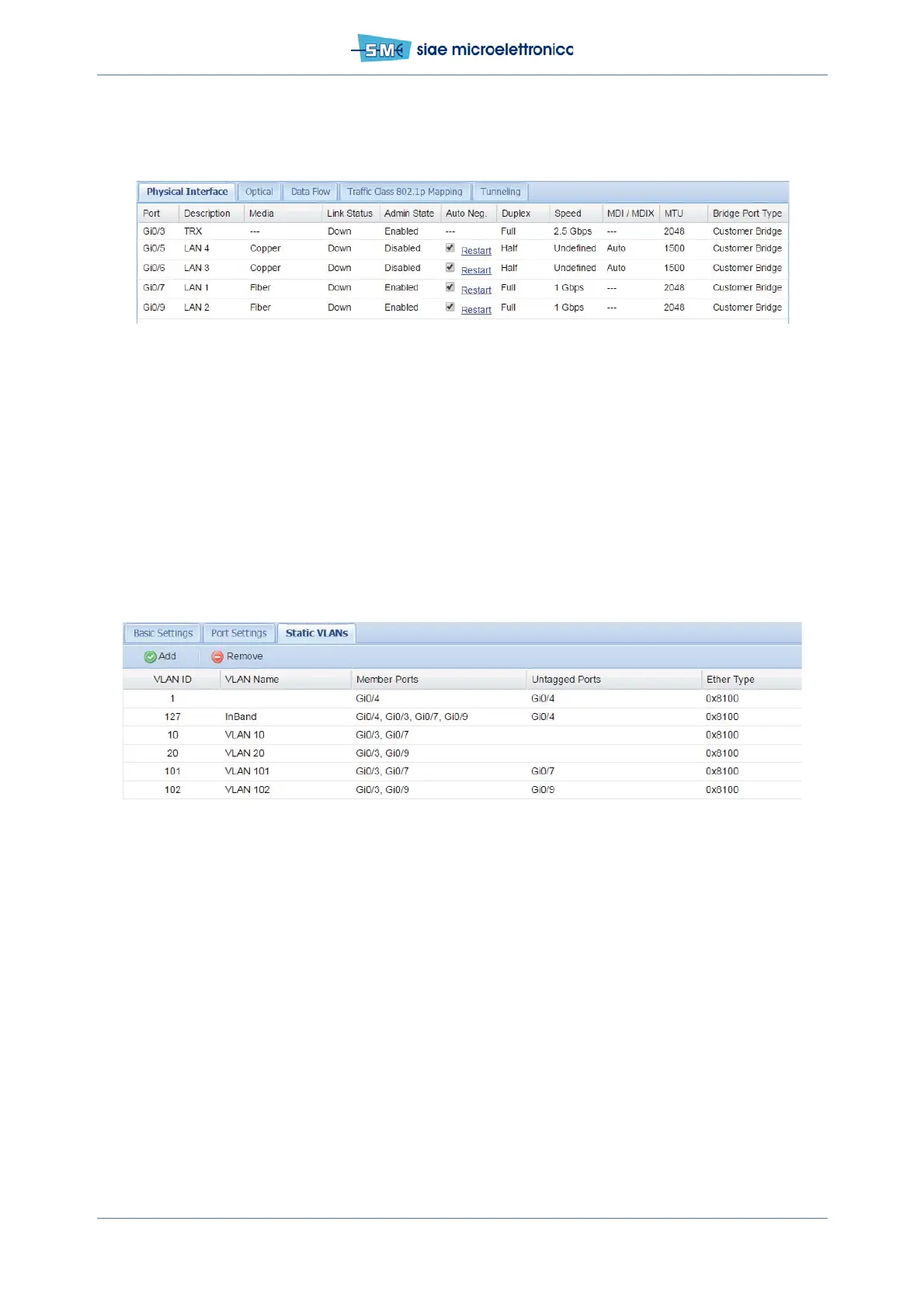

Fig.56 - Port status
12.2.3 CB example configuration by WEBLCT: TRAFFIC VLAN CREATION
In WEBLCT select Base Band menu, Ethernet and VLAN:
• select Static VLANs card and click Add: Static VLAN Configuration window is open
• set VLAN ID, VLAN name, Member Ports, Untagged Ports (among the previous) and Ether Type
used, Click Apply and confirm
• now the new VLAN can be used for traffic
• repeat for all VLANs.
Fig.57 - CB VLAN creation
12.2.4 CB example configuration by WEBLCT: PORT SETTINGS
In WEBLCT select Base Band menu, Ethernet and VLAN
• select adjacent card: Port Settings
• set the following parameters:
- Acceptable Frame Types All
- Ingress Filtering Enabled
- PVID Port Default (example: 101, 102)
- Default User priority Port Default (example: 6)
• push Apply and confirm.
