SM ALFOplus2 - Commissioning Measures for Ethernet Traffic; Firmware Update

92 MN.00356.E - 003
- Auto Neg. selected or not
- MDI/MDIX Auto
- MTU 46Byte up to 12266Byte (can be done with port disabled only)
- Bridge Port Type Customer Network (port-based)
• push Apply and confirm.

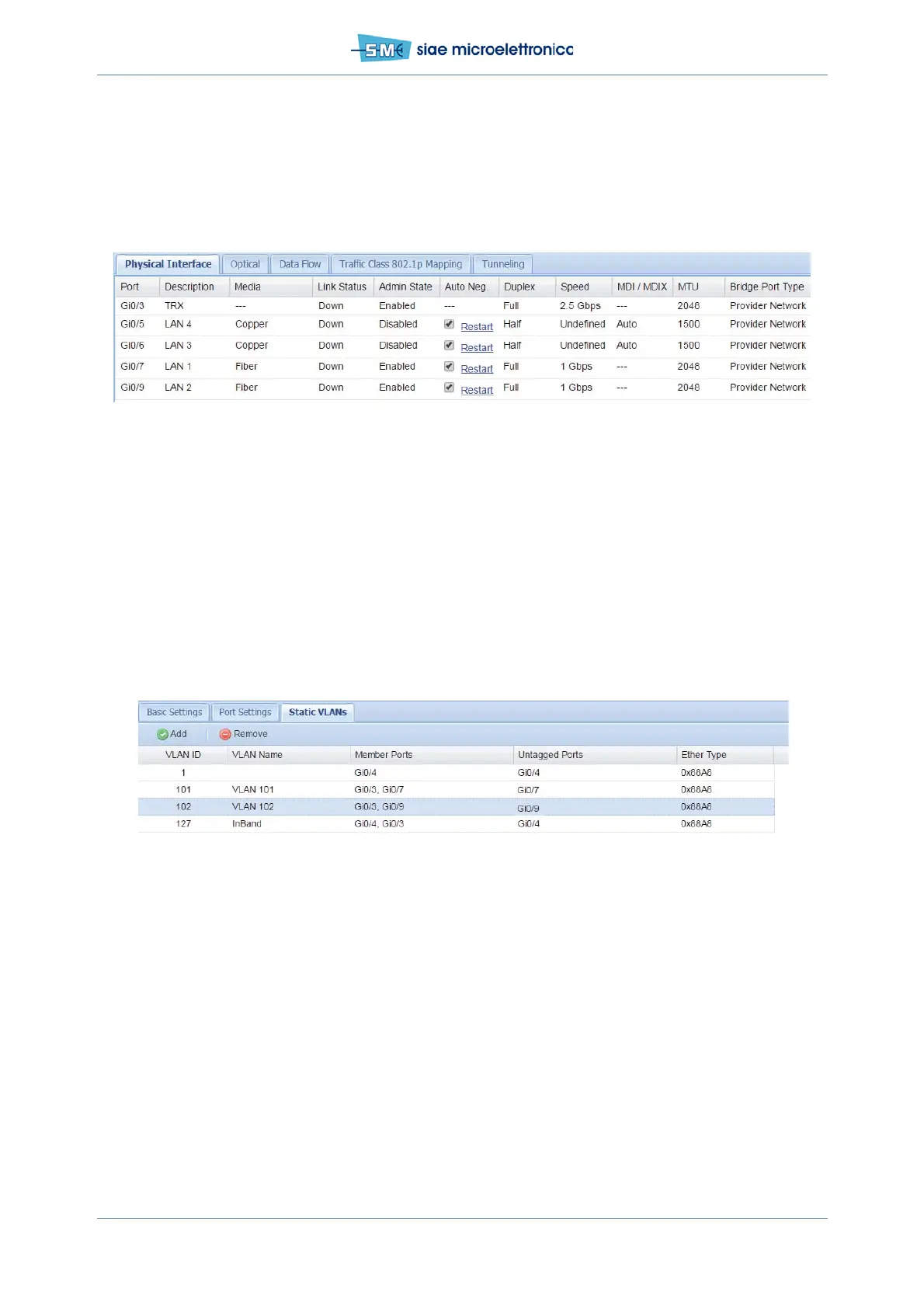

Fig.64 - PEB Port status
12.3.3 PEB example configuration by WEBLCT: TRAFFIC VLAN CREATION
In WEBLCT select Base Band menu, Ethernet and VLAN
• select Static VLANs card and click Add: Static VLAN Configuration window is open
• set VLAN ID, VLAN name, Member Ports, Untagged Ports (among the previous) and Ether Type
(0x88A8), Click Apply and confirm
• now the new VLAN can be used for traffic
• repeat for all VLANs.
Fig.65 - PEB VLAN creation
12.3.4 PEB example configuration by WEBLCT: PORT SETTINGS
In WEBLCT select Base Band menu, Ethernet and VLAN
• select adjacent card: Port Settings
• Set the following parameters:
- Acceptable Frame Types UnTagged and Priority Tagged
- Ingress Filtering Enabled
- PVID Port Default (example: 101, 102)
- Default User priority Port Default (example: 6)
• push Apply and confirm.
