7.12.2 RJ45 connector

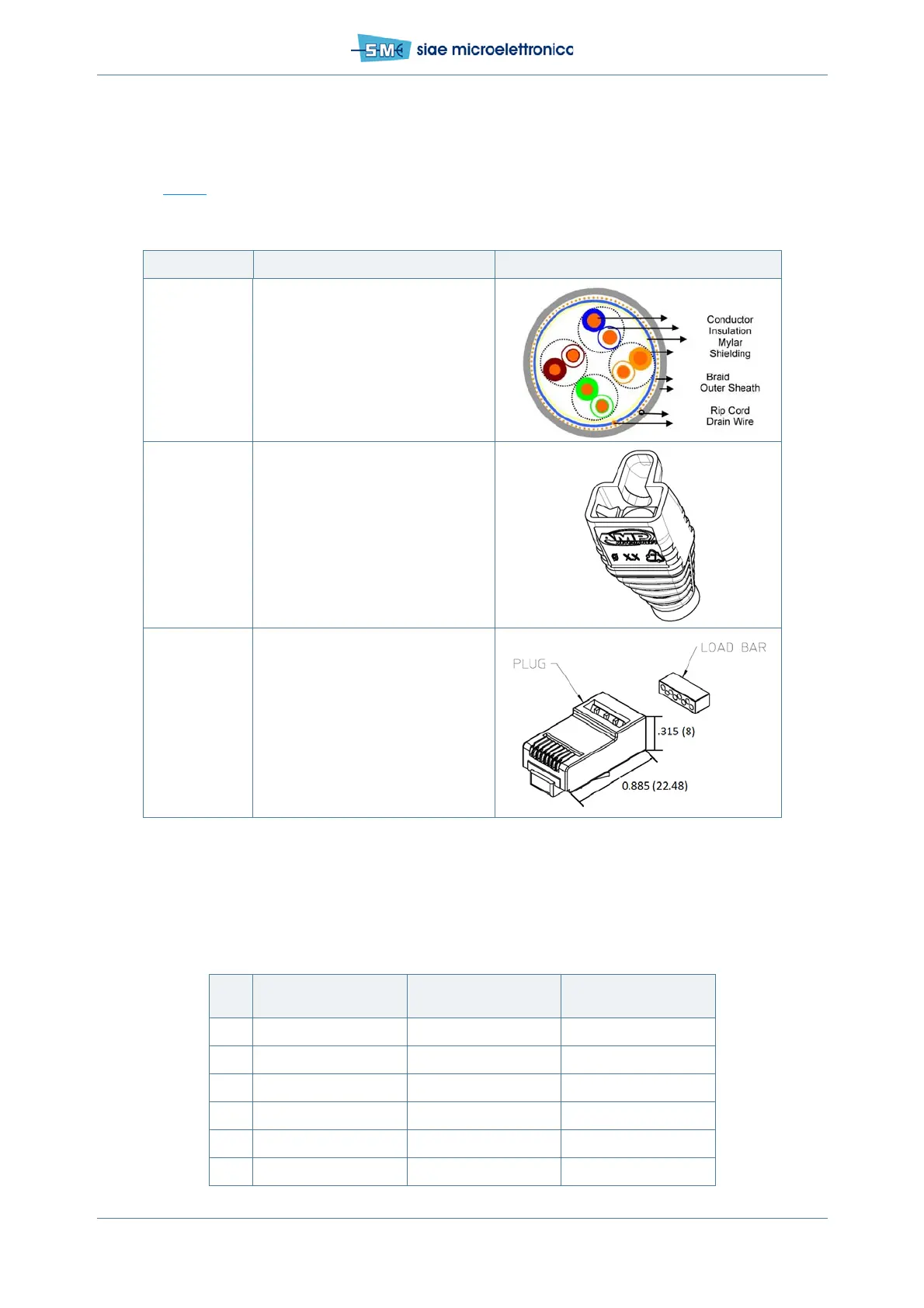

The electrical RJ45 connection to ALFOplus2 is guaranteed only with coded connector. Part to be assembled
(see Tab.12
).
Tab.12 - Part to be assembled
1000Base-T Gigabit Ethernet cables and connectors
Please be aware that modifying Ethernet cables improperly may cause loss of network connectivity. Please
follow colours of wiring.
Tab.13 - Wiring 1000Base-T
SIAE code Description View
M02472
Data cable SF/UTP CAT5e for outdoor
(AWG24) 100 Ohm
M05184
Indoor RJ45 boot protection black
=6mm
P03192 Indoor RJ45 shielded plug
Pin
Assignment
1000Base-T
T568A
Colour wire
T568B
Colour wire
1BI_DA+ WHT/GRN WHT/ORG
2 BI_DA- GRN ORG
3 BI_DB+ WHT/ORG WHT/GRN
4BI_DC+ BLU BLU
5BI_DC- WHT/BLU WHT/BLU
6 BI_DB- ORG GRN
