SM ALFOplus2 - Cb Example; CB Example Configuration by WEBLCT; CB Example Configuration by WEBLCT: PORT STATUS

MN.00356.E - 003 85
12.2 CB EXAMPLE
Units in Customer Bridge mode: the transmitted traffic is untagged and/or known C-tagged.

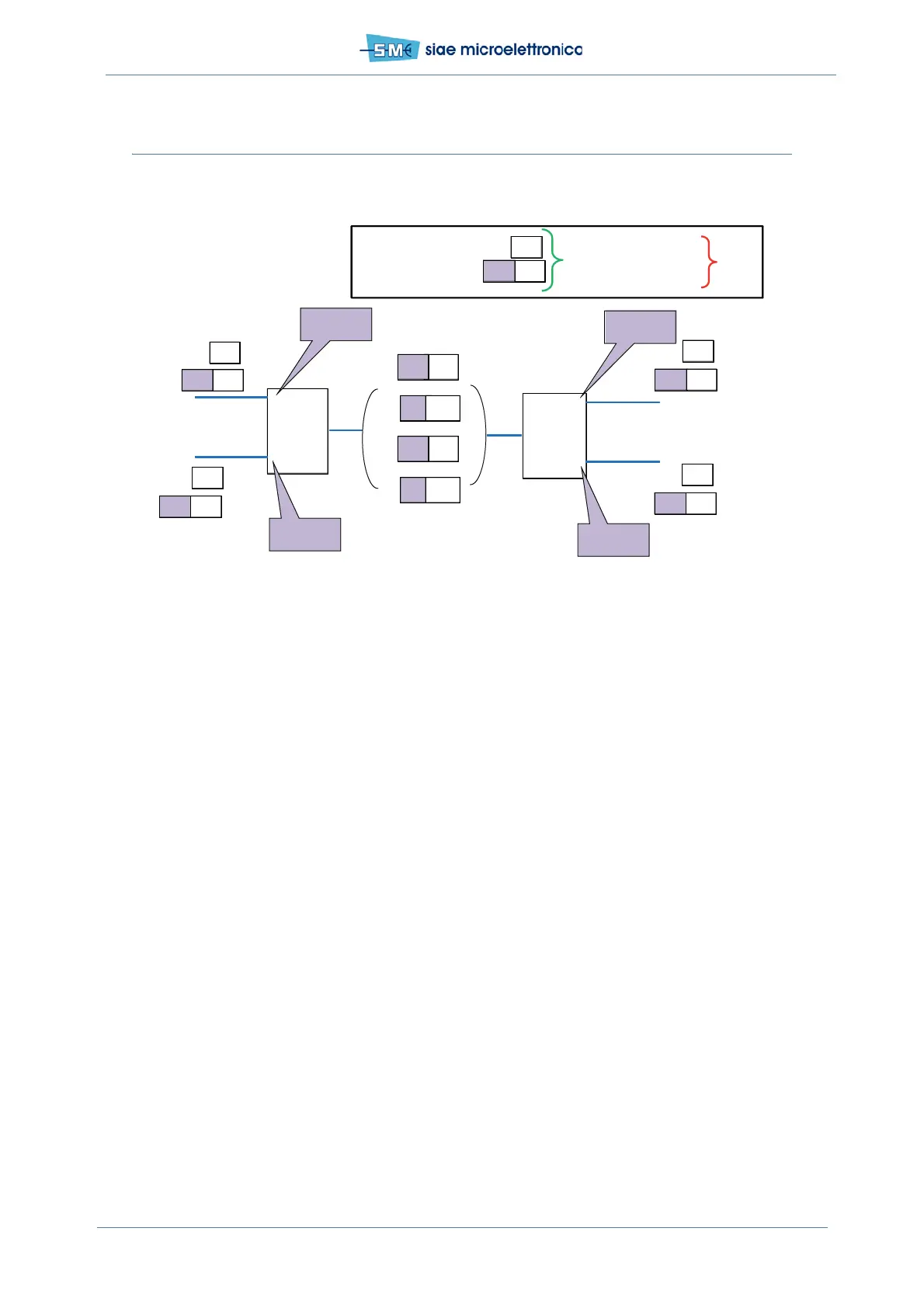

Fig.55 - Configuration for untagged and known C-tagged traffic in Customer Bridge mode
This traffic configuration can be set via:
•WEBLCT
•CLI.
See following paragraphs.
12.2.1 CB example configuration by WEBLCT
Using the WEBLCT with the units in Customer Bridge mode:
•Port Status
• Traffic VLAN creation
• Port Settings.
12.2.2 CB example configuration by WEBLCT: PORT STATUS
In WEBLCT select Base Band menu, Ethernet and Port Manager:
• select Phisical Interface
• set the following parameters
- Admin State Enabled
-Auto Neg. selected
- MDI/MDIX Auto
- MTU 46Byte up to 12266Byte (can be done with port disabled only)
TRX
1
2
1
2
CB
C
10 -p 2
Def VID=101
DEF p=6
C
10-p2
CB
C
101 -p6
Def VID=101
DEF p=6
C
10-p2
Untagged traffic
Known C -tagged (VID and p)
C
20-p 2
C
20-p 2
C
2
0 -p 2
C
102 -p6
Def VID=102
DEF p=6
Def VID=102
DEF p=6
A
A
A
B
B
B
C
C
C
D
D
D
OK Dropped
C -tag g ed ≠ Vid10, Vid 20
S -tagged traffic
CBP
CBP
CBP
CBP
C
10-p2
TRX
