28 MN.00356.E - 003

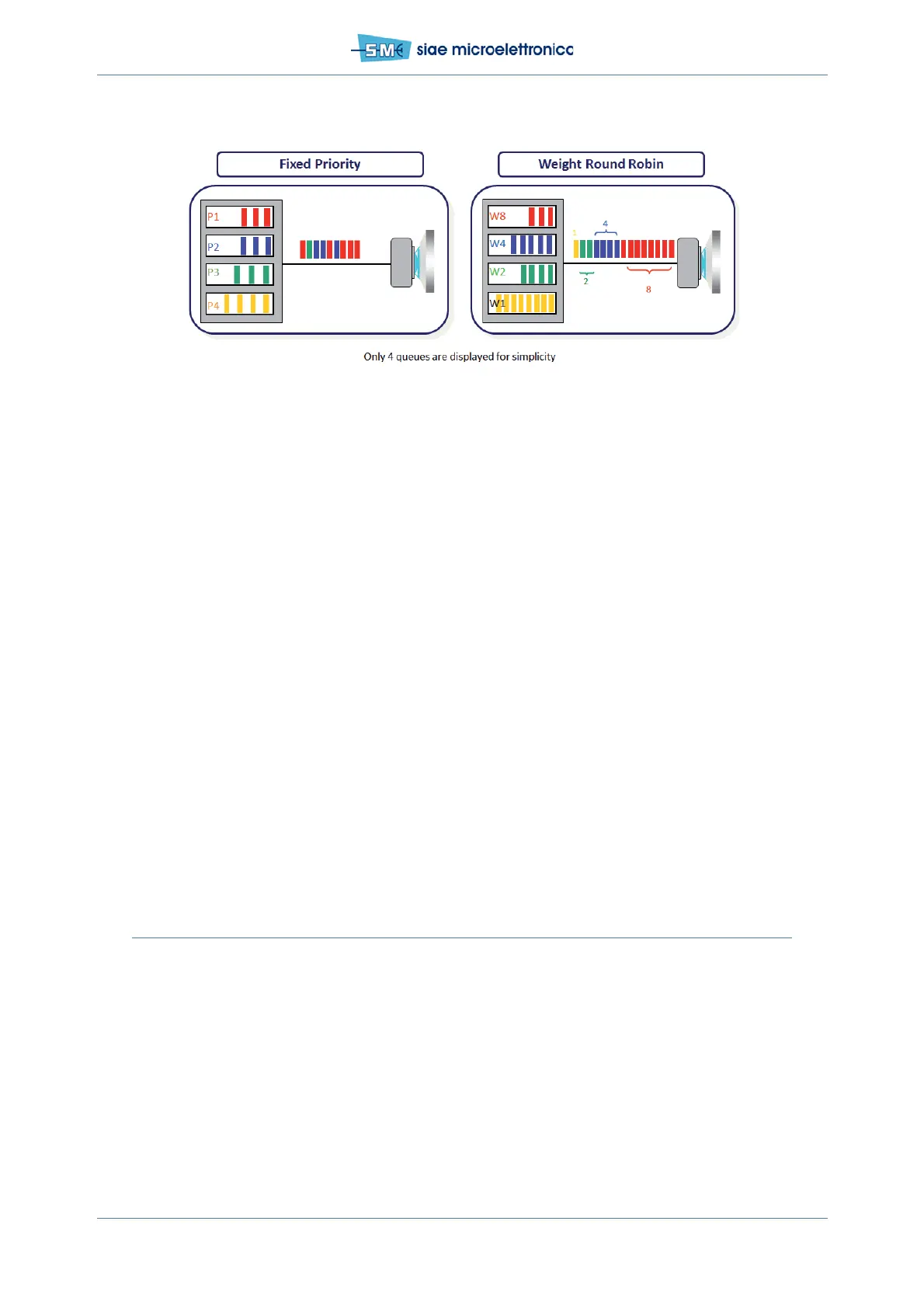

Fig.13
5.8.8 Egress Shaping
Egress Shaping is used to control rate of traffic sent on network interface. traffic lower than or equal to the
specified rate is sent, traffic that exceeds the rate is dropped or delayed. Rate limiting is performed by
policing (discarding excess packets), queuing (delaying packets in transit) or congestion control (manipu-
lating the protocol’s congestion mechanism).
The rate limiting which allows shaping traffic inserted inside the network is also implemented per egress
port or per queue.
5.8.9 Egress Manipulation
The egress manipulation function allows modifying the format of the outcoming frames.
The egress VLAN can be removed on the basis of the following criteria:
•Port Based
• Port and C-tag based.
5.9 SECURITY
Following security protocols are implemented in ALFOplus2:
•SNMP V3
• security management (SSH, SFTP)
• secure HTTP access (HTTPS)
• AES-CTR (128/256 configurable) traffic encryption (optional).
