SM ALFOplus2 - CB Example Configuration by CLI

MN.00356.E - 003 87

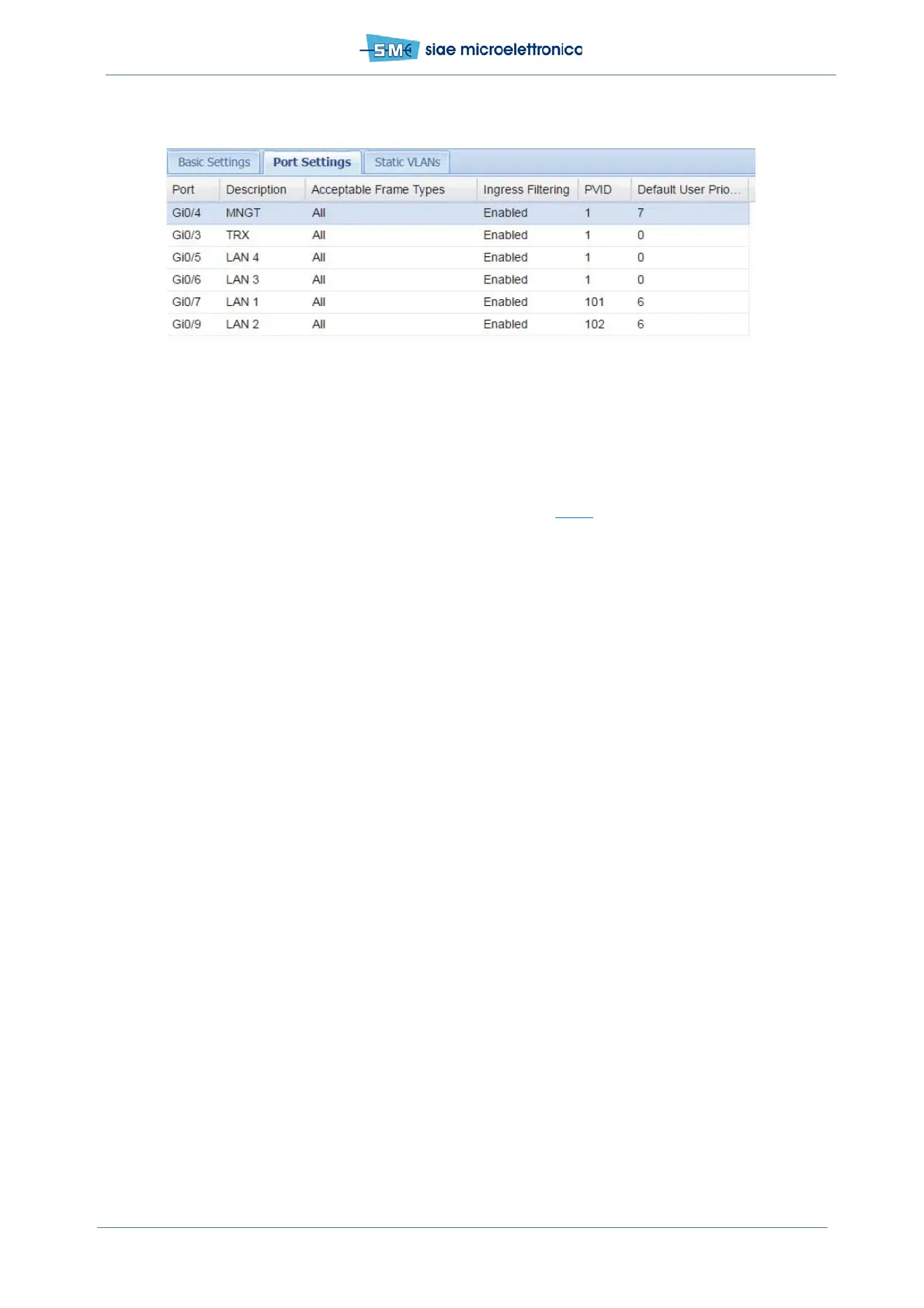

Fig.58 - CB Port setting
12.2.5 CB example configuration by CLI
This is the script for the setting of traffic configuration described in Fig.55.
SM-OS# c t
#Enable customer bridge
SM-OS(config)# Bridge mode customer
#Pipe1 for untagged traffic on LAN1
SM-OS(config)# vlan 101
SM-OS(config-vlan)# ports gigabitethernet 0/3 gigabitethernet 0/7 untagged gigabitethernet 0/7 name
Vlan101
SM-OS(config-vlan)# exit
SM-OS(config)# interface gigabitethernet 0/7
SM-OS(config-if)# shutdown; switchport pvid 101; switchport priority default 6; switchport ingress-filter;
mtu 2048; negotiation; no shutdown
SM-OS(config-if)# exit
SM-OS(config)# vlan 10
SM-OS(config-vlan)# ports gigabitethernet 0/7 gigabitethernet 0/3 name Vlan10
SM-OS(config-vlan)# exit
#Pipe2 for untagged traffic on LAN2
SM-OS(config)# vlan 102
SM-OS(config-vlan)# ports gigabitethernet 0/3 gigabitethernet 0/9 untagged gigabitethernet 0/9 name
Vlan102
SM-OS(config-vlan)# exit
SM-OS(config)# interface gigabitethernet 0/9
SM-OS(config-if)# shutdown; switchport pvid 102; switchport priority default 6; switchport ingress-filter;
mtu 2048; negotiation; no shutdown
SM-OS(config-if)# exit
SM-OS(config)# vlan 20
SM-OS(config-vlan)# ports gigabitethernet 0/9 gigabitethernet 0/3 name Vlan20
SM-OS(config-vlan)# exit
