MN.00356.E - 003 55

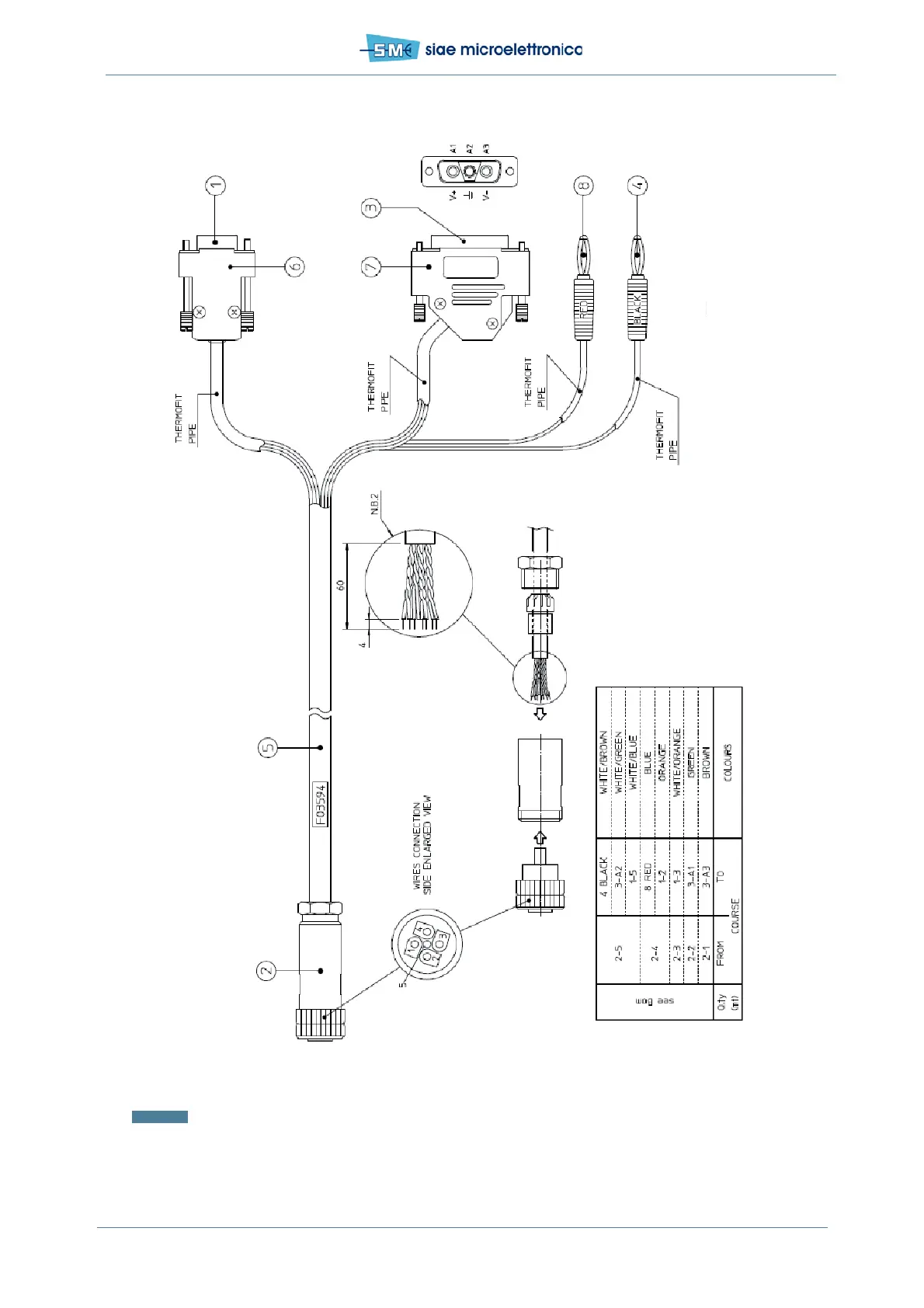

Fig.28 - F03594 cable for lab use only

Warning: ALFOplus2 don’t use connectors 8 and 4 of F03594. Protect them.
