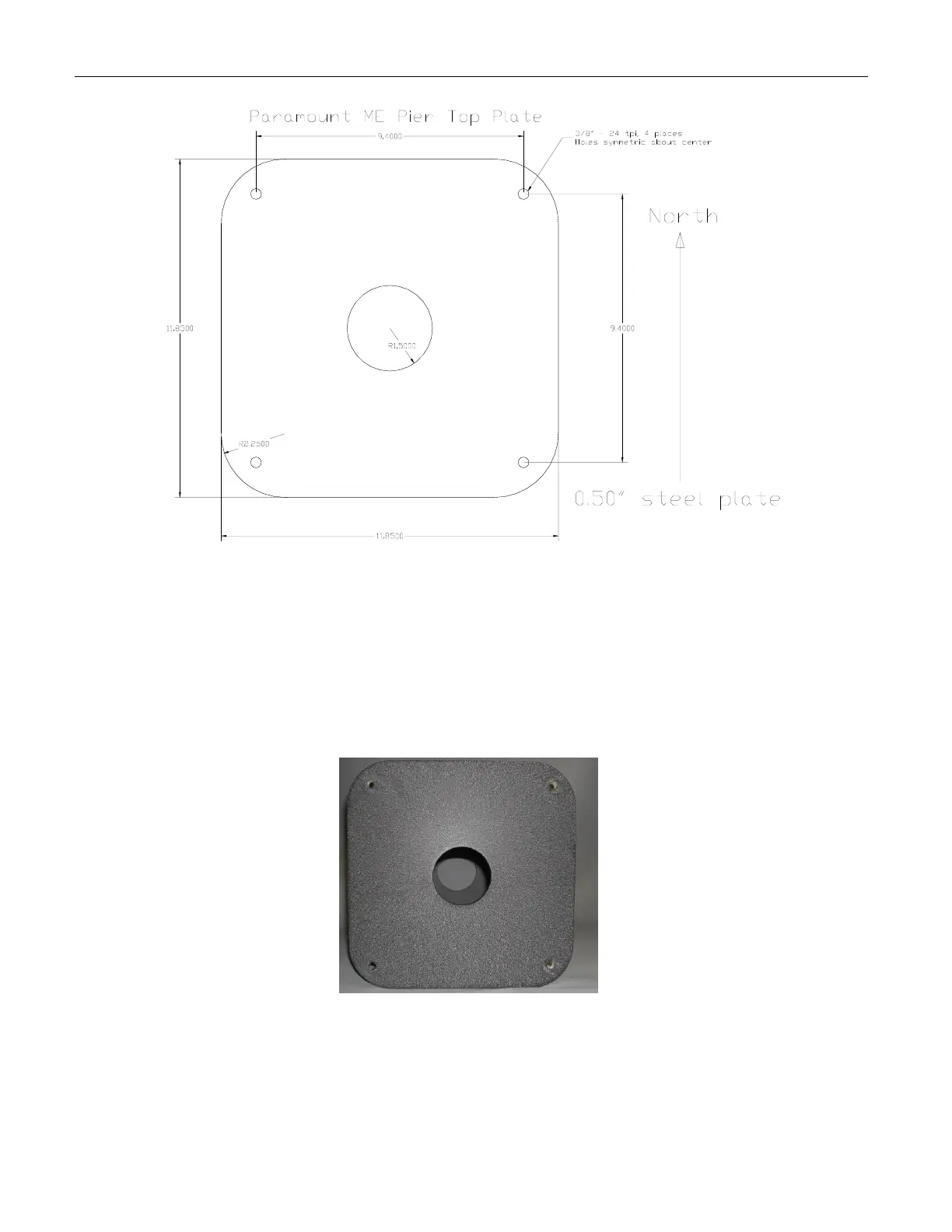

Figure 70: Pier Top Plate dimensions.
Pier Top Plate
The Paramount ME Pier Top Plate is slightly larger than the Base Plate. It is constructed
out of 0.50-inch thick steel plate and is drilled in the corners to accept the Paramount ME.
North is indicated in the above drawing. However, since the 9.40-inch hole pattern is
symmetric about the center of the pier, and multiple of 90-degrees will also work.
Figure 71: Photograph of pier top plate.
