Paramount ME User’s Guide
96
Primary Mounting Holes
There are two sets of three mounting holes. The Primary mounting holes can be used for
adapting to piers that have a large, flat top. There are built in “washers” on the bottom of
these holes in case the mounting surface is not perfectly flat.
Old Pattern (Paramount S Compatible)
A second set of three holes (see XFigure 63X) matches the mounting pattern of the Paramount
GT-1100 and GT-1100S models. They can be used to adapt the older style piers to the
Paramount ME.

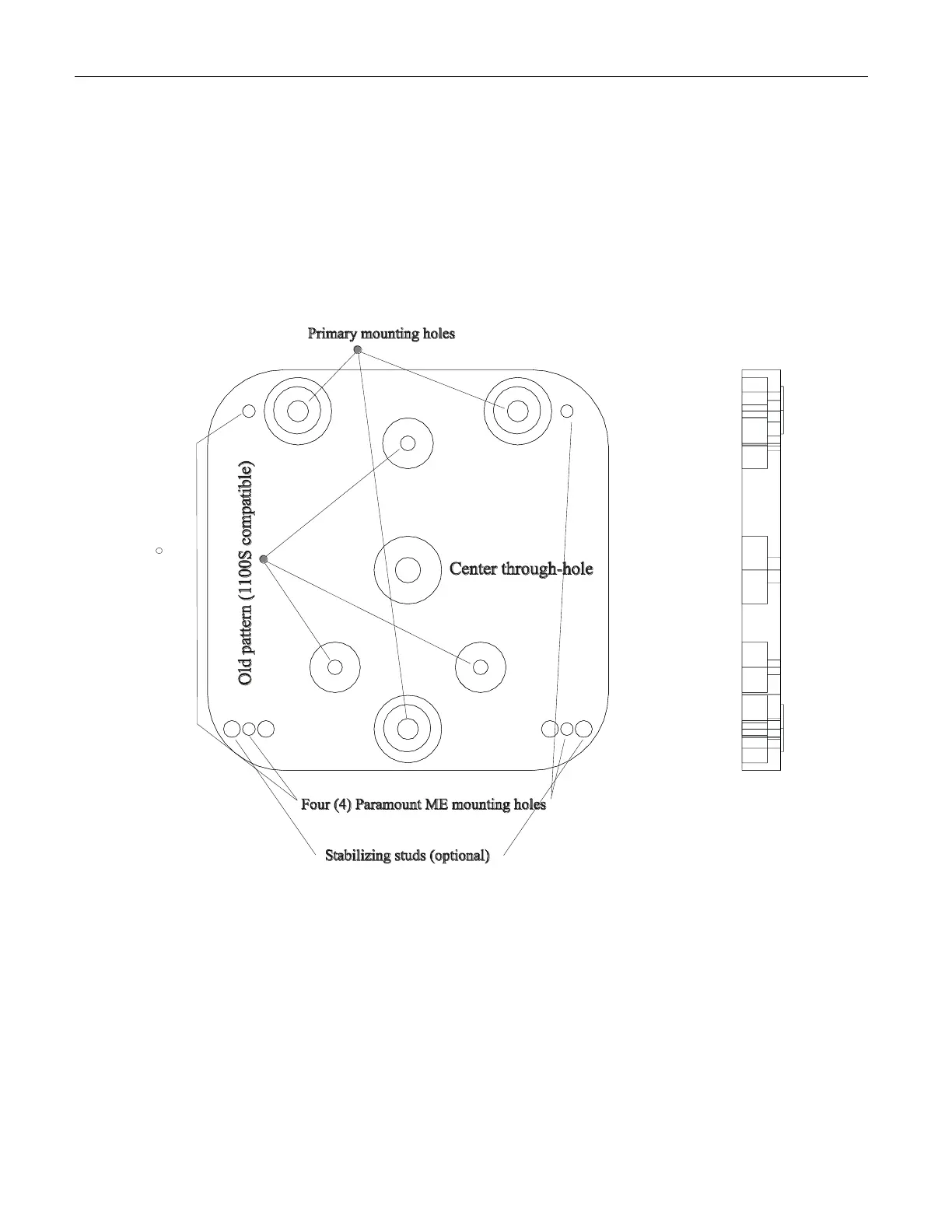

Figure 63: Description of the Wedge to Pier Adaptor hole patterns.
