Paramount ME User’s Guide
99

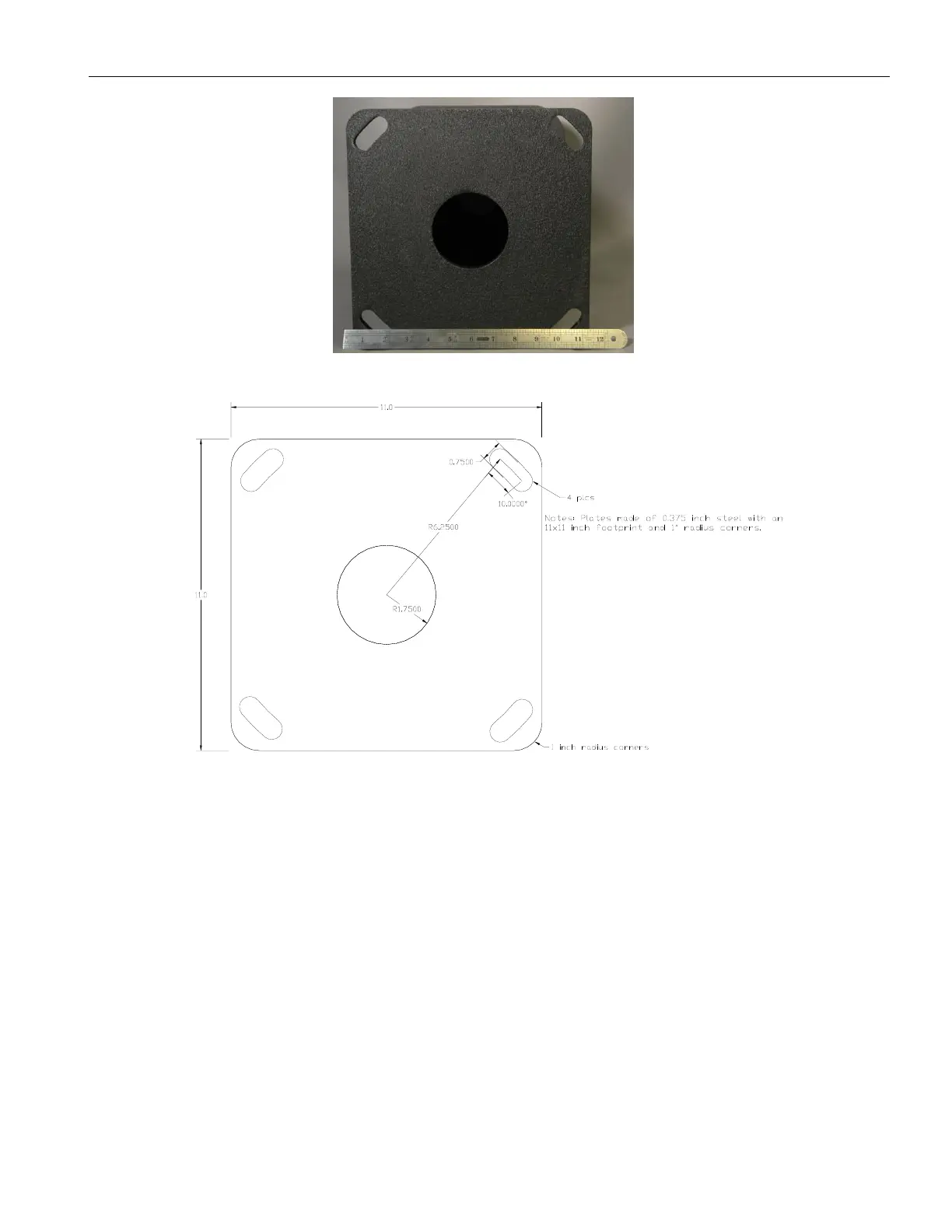

Figure 68: Photograph of pier base plate. Note slotted holes.
Figure 69: Dimensions of pier base plate.
Pier Base Plate
XFigure 69X shows the footprint of the Paramount ME pier. The pier can be mounted using
four 0.50-inch J-bolts placed in concrete. Software Bisque recommends that the base
plate remain in contact with the cement surface to minimize damping times.
