Paramount ME User’s Guide
103
Description
Part Number
Quantity per
Package
5.5 mm O.D./2.1 mm I.D. DC power
plug
274-1569
2
3.5 mm phono plug (mono)
274-286
2
RJ12 modular phone plug
279-421
10
DB9P (male)
276-1537
1
DB9S (female)
276-1538
1
DB9 hood (used with DB9P and DB9S)
276-1539
1
DB9 female-to-female cable, 6 ft.
26-152
1
DB25 male-to-male cable, 6 ft.
26-249
1
DB9P-DB25S adaptor
26-287
1
Auxiliary Port 1 and 2 Fuse Replacement
The Adaptor Panel is equipped with two 3A Slo-Blo fuses for the Aux 1 and Aux 2 ports. If
there is no continuity between the Aux Port (1 or 2) on the Adaptor Panel and the Aux Port
(1 or 2) on the Instrument Panel, the fuse should be replaced.
To access these fuses, remove the fuse panel on the Adaptor Panel. Use a pair of needle
nose pliers to remove the fuses from the Adaptor Panel.

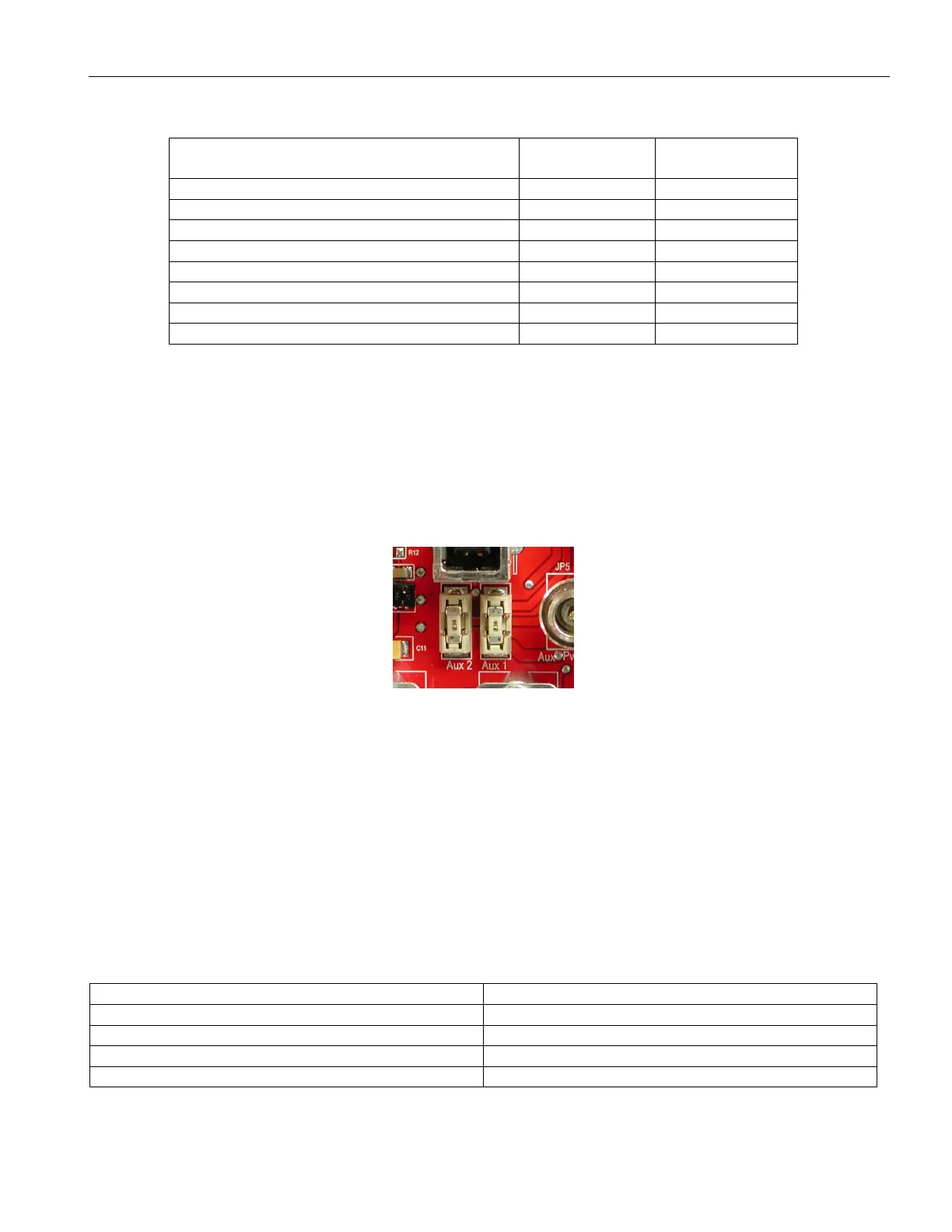

Figure 75: Location of fuses on the MKS 4000.
Slo-Blo Subminiature Fuses Part Numbers
Littlefuse 3A Slo-Blo subminiature fuses can be purchased online.
Littelfuse part number (manufacturer): 0452003.MR
Digi-key.com (www.digikey.com) part number: F1347CT-ND
Mouser Electronics (www.mouser.com) part number: 576-0452003.MR.
Camera Power Cable Pin Out Specifications
The wiring pin outs for the 5-pin DIN Camera Power connector on the Instrument Panel
and Adaptor Panel are below.
5-Pin DIN Connector
Molex 8-pin Connector
1
7
2
5
3,5
3
4
1
