Paramount ME User’s Guide
104
The camera power input is the 5-Pin DIN round connector mounted to the front of the
electronic board and is labeled JP3 on the board; the Molex 8-pin connector is the white
connector mounted to the backside of the electronic board and is labeled JP7.

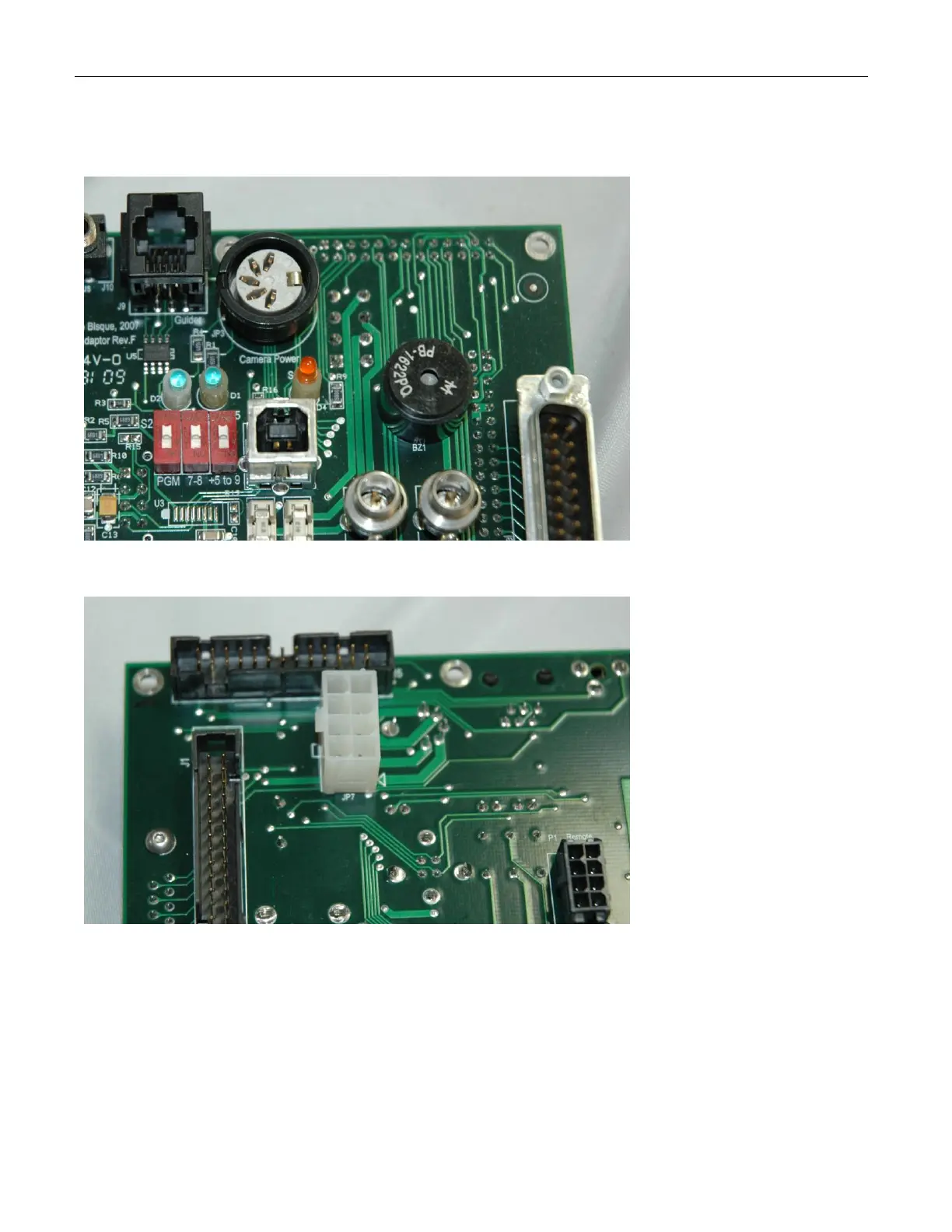

Figure 76: Camera Power 5-pin DIN connector on the Adaptor Panel.
Figure 77: 8-pin Molex connector on the back of the Adaptor Panel.
