Paramount ME User’s Guide

118

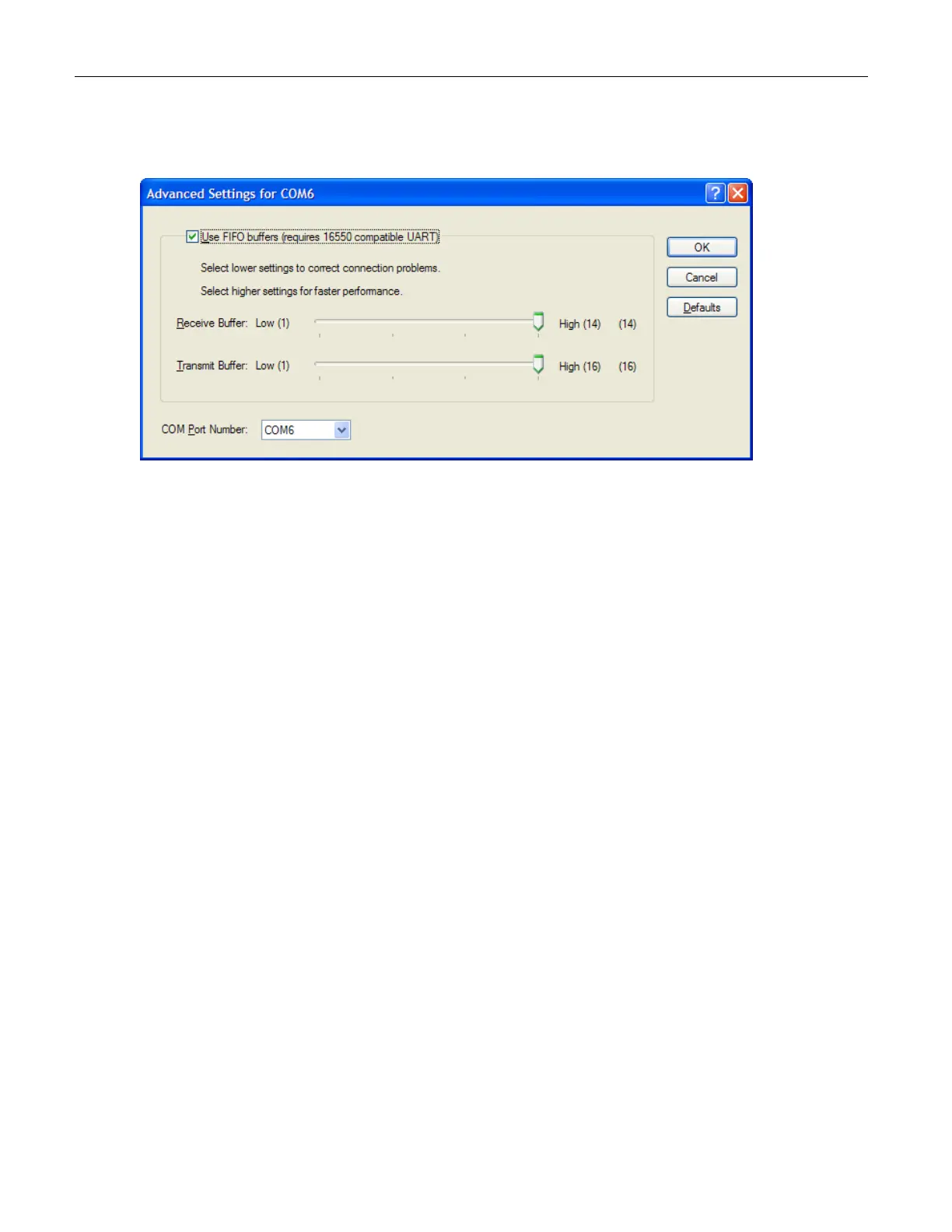

4. On the Advanced Settings for COM N dialog box, from the COM Port Number list,

select the desired COM port to use for the MKS 4000 USB port.
