SolarEdge StorEdge SE7600A-USS Installation Guide

9. UnscrewthetwoconduitnutssecuringtheStorEdgeConnectionUnittotheexternalconduits.
10. ReleasethebracketsecuringtheStorEdgeConnectionUnittothewall.
11. CarefullyremovetheStorEdgeConnectionUnitwithitsmountingbracketfromthewall.
Installing a New StorEdge Connection Unit
1. OpentheStorEdgeConnectionUnitcover.
2. PositionthenewStorEdgeConnectionUnitbelowtheinverterandfromtheinsideoftheinverter
grabtheACandDCwiresextendingfromtheunitconduits,asshownbelow:

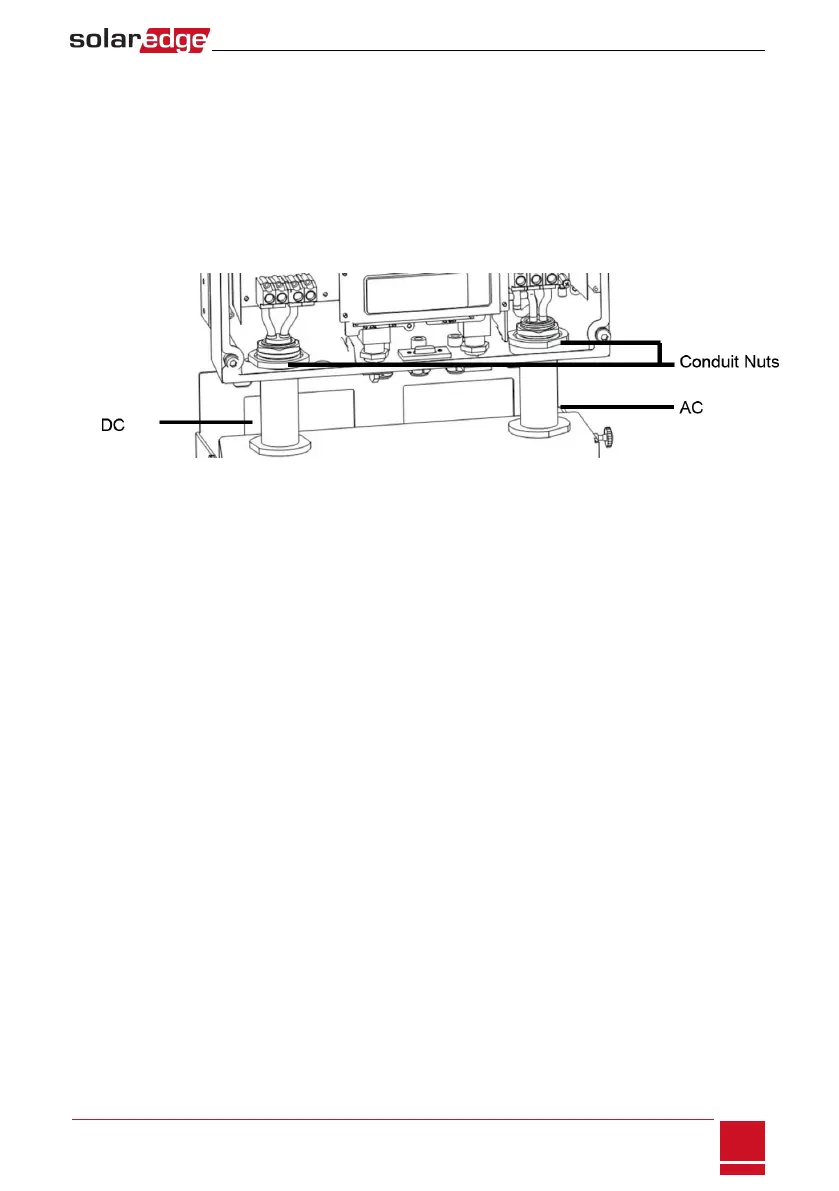

Figure 43: Inserting the AC and DC conduits
3. AttachtheStorEdgeConnectionUnitwithitsbrackettothewallandslightlyclosethescrews.Donot
overtighten.
4. ForRGMinverters-InsertthemeterRS485cablethroughtheDCsideconduitoftheStorEdge
ConnectionUnitandconnecttotheinvertercommunicationboard.
5. ReconnectthecablefromtheinverterdigitalboardtotheStorEdgeConnectionUnit.
6. Reconnectalltheexternalwiresandferritebeads..
7. Securelyscrewthetwoconduitnutsontotheconduitendsintheinverter.Verifyproperconduit
sealing.
8. ClosetheStorEdgeConnectionUnitcover.Attachthecoverandsecureitbytighteningthesixscrews
withatorqueof1.2N*m/0.9ft.*lb.

Appendix B: Replacing and Adding System Components
SolarEdge-StorEdge Installation Guide MAN-01-00262-1.0
93
