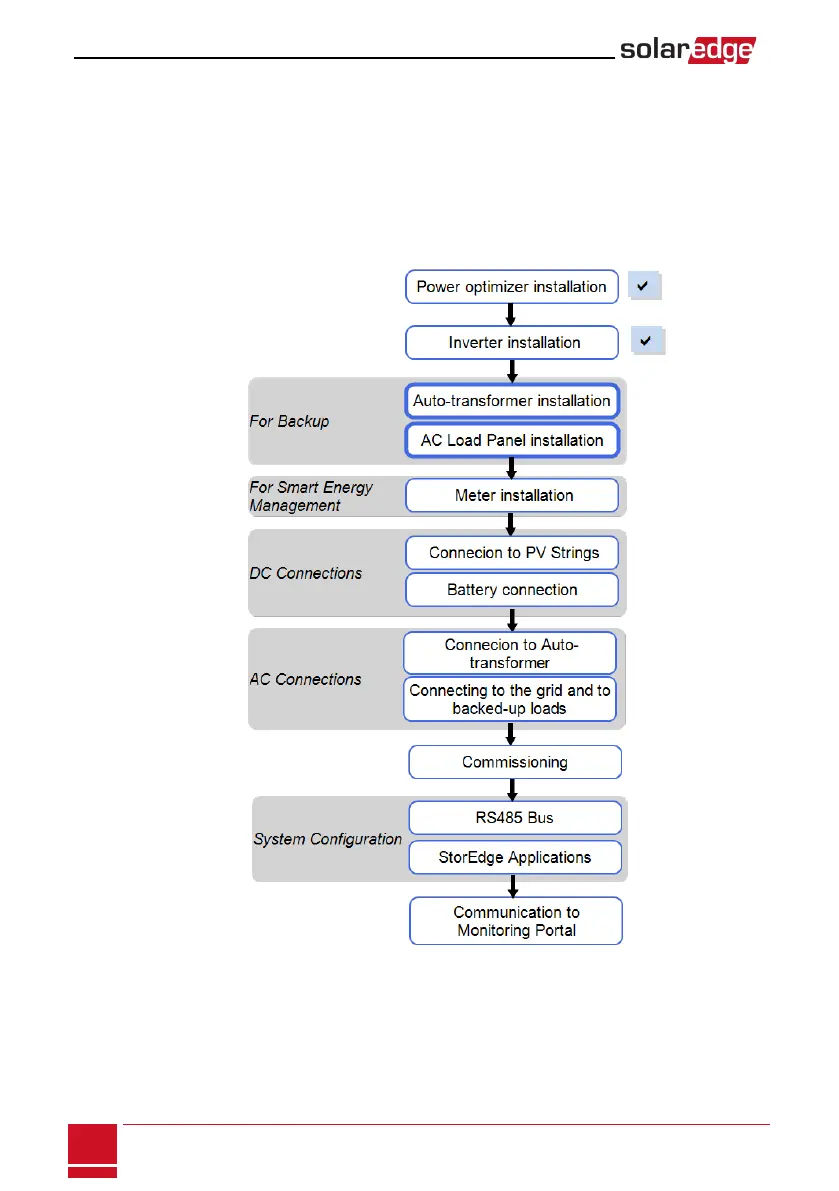

SolarEdge StorEdge SE7600A-USS Installation Guide

Chapter 4: Auto-transformer and Backed-up
Loads Panel Installation (for Backup Only)
Theauto-transformerisusedforbackuppoweronly,andisnotmandatoryifusingSmartEnergy
Managementapplicationsonly.
Theauto-transformerconnectstotheACsideoftheinverter.SincetheinverterACconnectionsareon
itsrightside,itisrecommendedtopositiontheauto-transformertotherightoftheinvertertosimplify
wiring.

