Operation on LCD
P/P
n
cos
φ
0.9
0.9
0.2
0.5
1.0
Capacitive
Inductive

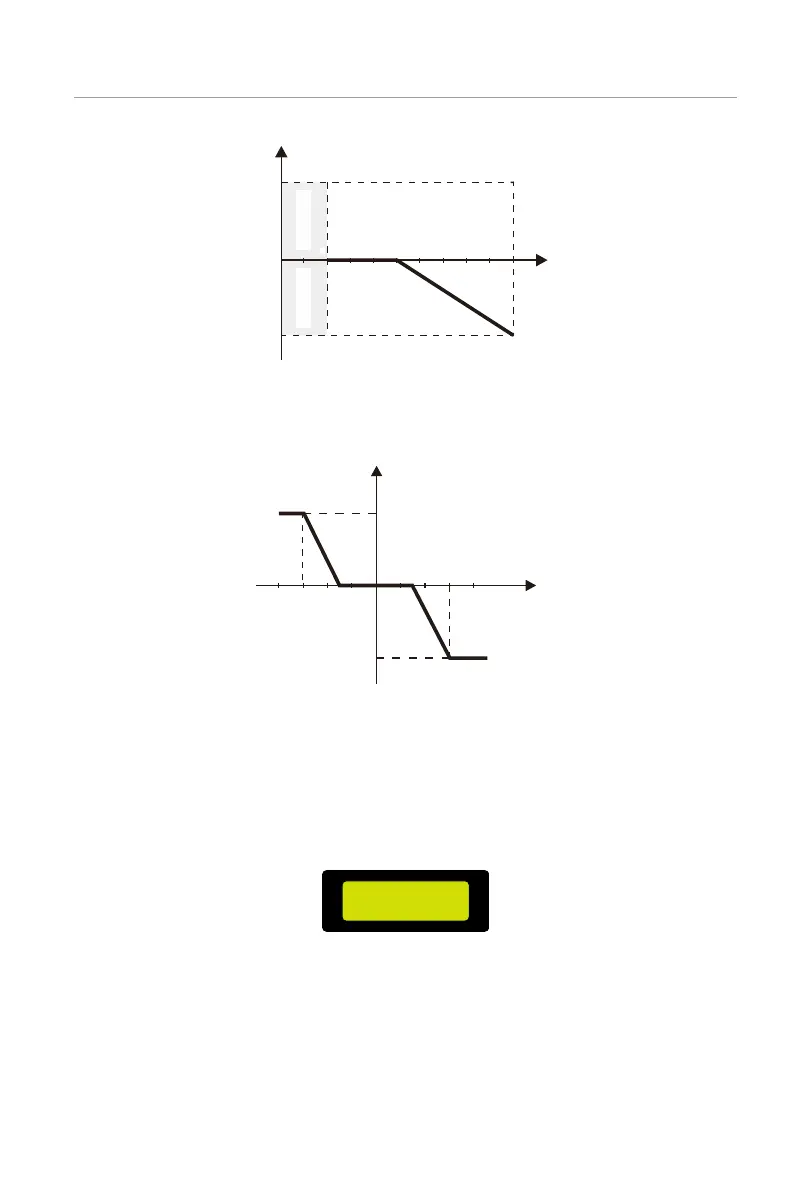

Figure 9-63 Curve C
• Reactive power control, reactive power standard curve Q= f(V).
Q
V
Qmax
-Qmax
V2s
V1s
V1i
V2i
V2s=1.10Vn
V1s=1.08Vn=QuVlowRate
V2i=0.90Vn
V2i=0.92Vn=QuVlowRate
Figure 9-64 Curve Q=f(V)
Setting DRM Function (applied to NZS4777.2)
The DRM function is a demand response method required by the NZS4777.2
standard and is only applicable to NZS4777.2.
Default setting: Disable.
====DRM Function====
> Function Control
> Disable <
Figure 9-65 Enabling DRM function
Setting Parallel Setting
The inverter provides the parallel connection function. Up to 10 inverters can be connected
in one system with an X3-PBOX-60kW-G2 or X3-PBOX-150kW-G2. Up to 3 inverters can
be connected in one system if no X3-PBOX device is equipped. one inverter will be set as
the “Master inverter” to control the other "Slave inverters" in the system via P1/P2 port.
