190
Operation on SolaX App and Web
NOTICE!
•
The screenshots in this chapter correspond to the SolaX Cloud App V4.2.8
.
10.3
Operation Guide on SolaX Cloud W
eb
Open a browser and enter www.solaxcloud.com to complete r
egistration,login, add site
and other related operations according to the guidelines of user guide.

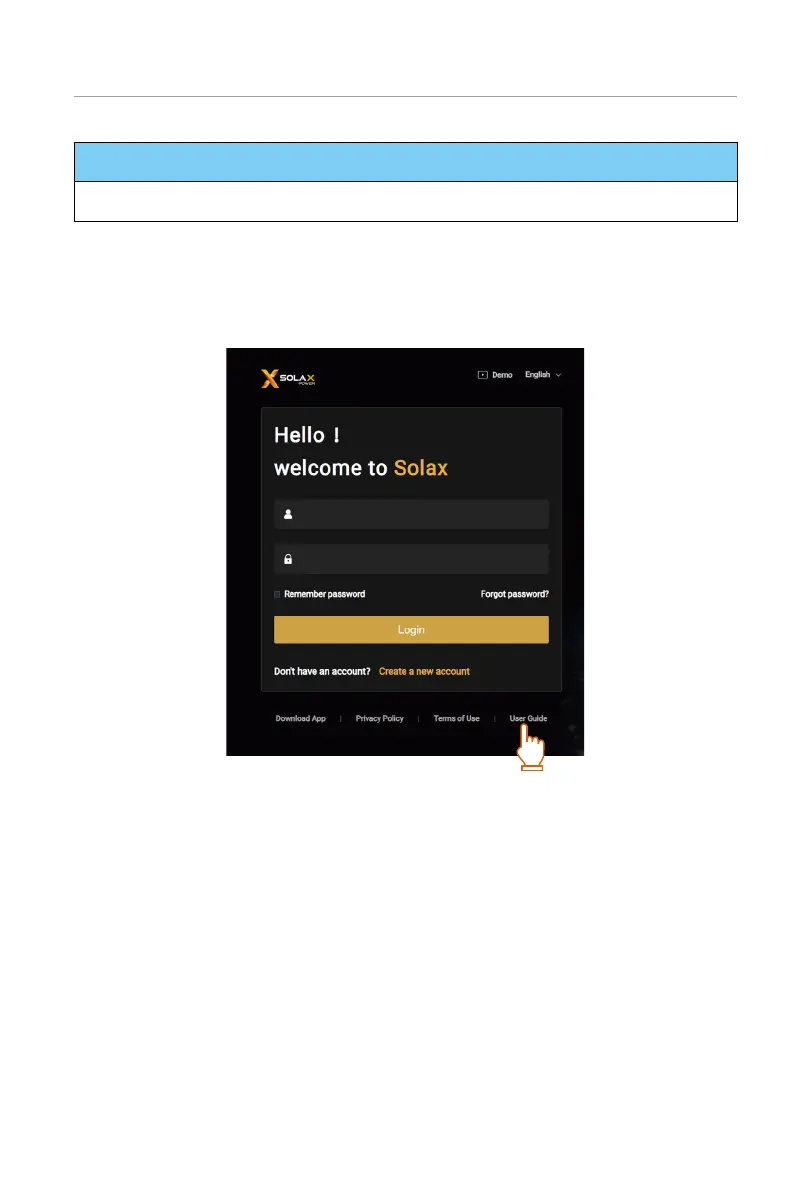

Figure 10-3
User guide Web
197
199
Table of Contents
Default Chapter
6
Table of Contents
6
1 Safety
9
General Safety
9
Safety Instructions of PV, Inverter, Grid and Battery
10
Safety Instructions of PV
10
Safety Instructions of Inverter
10
Safety Instructions of X3-Matebox G2
11
Safety Instructions of Utility Grid
12
Safety Instructions of Battery (T-BAT-SYS)
12
Additional Safety Instructions
15
2 Product Overview
17
System Description
17
Supported Power Grid
19
Appearance
20
Dimensions
21
Control Panel and Indicators
24
Ports of Devices of X3-IES System
29
Symbols on the Label and Devices of X3-IES System
34
Working Principle
36
Working Mode
36
Circuit Diagram
40
Micro Grid
45
3 Transportation and Storage
46
4 Preparation before Installation
47
Selection of Installation Location
47
Environment Requirement
47
Installation Options
49
Installation Carrier Requirement
52
Clearance Requirement
53
Tools Requirement
54
Additionally Required Materials
55
5 Unpacking and Inspection
57
Unpacking
57
Scope of Delivery
59
6 Mechanical Installation
65
Mechanical Installation of X3-IES System
65
Floor Mounting
67
One Tower for Floor Mounting
67
Two Towers for Floor Mounting
79
Wall Mounting
80
One Tower for Wall Mounting
80
Two Towers for Wall Mounting
91
Battery Capacity Expansion
92
X3-Matebox G2 Mounting
93
7 Electrical Connection
96
Electrical Connection of Battery
96
Details of Cables
96
Wiring Procedure
97
Installation of Cover
103
Electrical Connection of Inverter
104
Wiring Sequence of the Inverter
104
Grid and EPS Connection
105
PV Connection
111
Communication Connection
116
Monitoring Connection (UPGRADE/ Port)
136
Electrical Connection of X3-Matebox G2
139
8 System Commissioning
149
Checking before Power-On
149
Powering on the System
150
Checking after Power-On
153
Power off
153
Operation of Australian DC Switch
154
9 Operation on LCD
157
Overview of LCD
157
System ON/OFF
160
Work Mode
160
System Status
161
Parallel Status
163
History Data
164
Settings
166
User Setting
166
Advance Setting
172
About
195
10 Operation on Solax App and Web
197
Introduction of Solax Cloud App
197
Operation Guide on Solaxcloud App
197
Downloading and Installing App
197
Operation Guide on Solax Cloud Web
198
11 Troubleshooting and Maintenance
199
Troubleshooting
199
Maintenance
207
Maintenance Routines
207
Upgrading Firmware
209
12 Decommissioning
211
Disassembling X3-IES System
211
Packing the Devices of X3-IES System
218
Disposing of the Devices of X3-IES System
218
13 Technical Data
