41
Preparation before Installation
4.1.2 Installation Options
NOTICE!
• X3-IES series inverter can match 2~6 battery modules. "Option A/ B/ C" is for one
tower and "option D/ E/ F/ G" is for two towers.
• Generally, up to three battery modules in one tower are recommended. Four battery
modules in one tower can be selected when installation space is limited.
• The following installation options apply to the modes of floor mounting and wall
mounting.
There are 7 installation options available, with details as follows:
One Tower
Option A Option B Option C
1281 mm
1599 mm
1917 mm

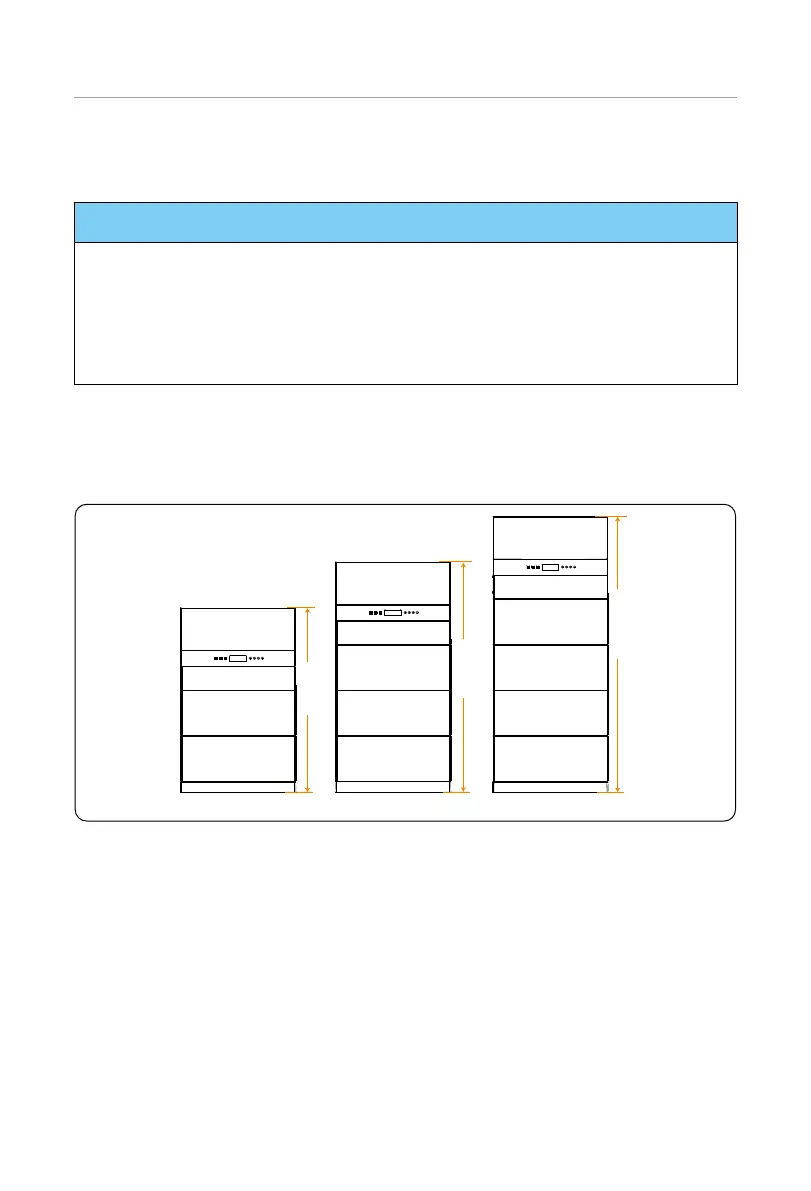

Figure 4-3 Installation options for one tower
