44
Preparation before Installation
Table 4-6 Net weight and dimensions of T-BAT-SYS
BMS
Battery
module
Base Series box Cover
Length (mm) 730 730 730 167 730
Width (mm) 150 150 150 121 150
Height (mm) 165 318 75 91.5 98
Net weight (kg) 9.3 47 3.9 1.3 1.3
4.1.3 Installation Carrier Requirement
The mounting location must be suitable for the weight and dimensions of the product and
the support surface for installation must be made of a non-flammable material.
• Solid brick/concrete, or mounting surface with equivalent strength;
• Please ensure that the bearing capacity of the ground and the wall, respectively,
that are used to install the X3-IES system must be over 940 kg, which is
determined based on option B. If option C is chosen by the user, the bearing
capacity of the ground and the wall, respectively, must be over 1090 kg;
• If you choose wall mounting, please make sure that the thickness of any section
of the wall is greater than 150 mm. When choosing floor mounting, the wall
thickness should be larger than 100 mm.
• The devices must not be installed on the wood wall.
Fire resistant
Be suitable for the
dimensions and weight
of X3-IES system.

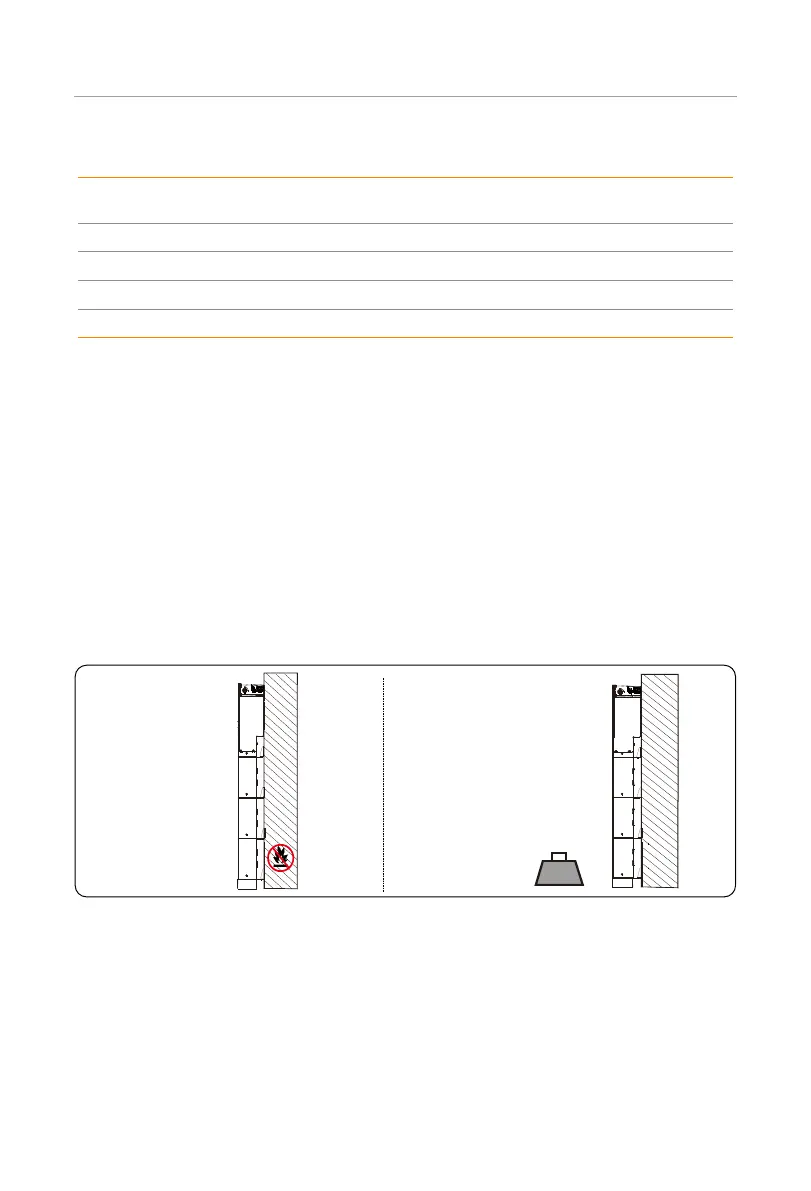

Figure 4-6 Installation carrier requirement
