Electrical Connection
7.3 Electrical Connection of X3-Matebox G2
Wiring procedures

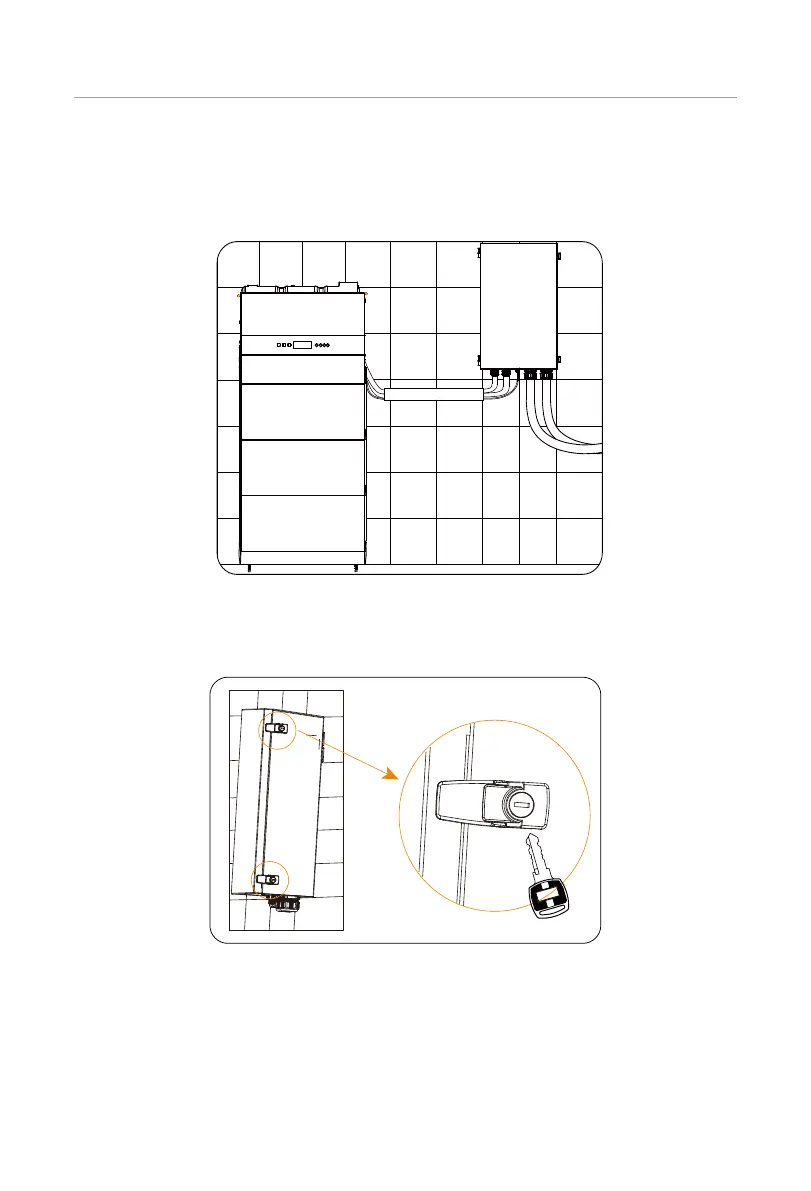

Figure 7-73 Well connected device
Step 1: Take the key from the anti-static bag from the carton. Before electrical
connection, release the buckles of a X3-Matebox G2.
Figure 7-74 Unlocking the buckles
Step 2: Loosen the screws at the corners of the plate and remove the plate.
