2.3.2 Control Panel and Indicators
Inverter control panel
Timely output power
Battery indicator light
Status or error
information
Today’s energy
Error indicator light
Operating indicator light
ESC
Up
Down
Enter
Power 0W
Today 0.0KWh
Battery 80%
Normal
Battery energy

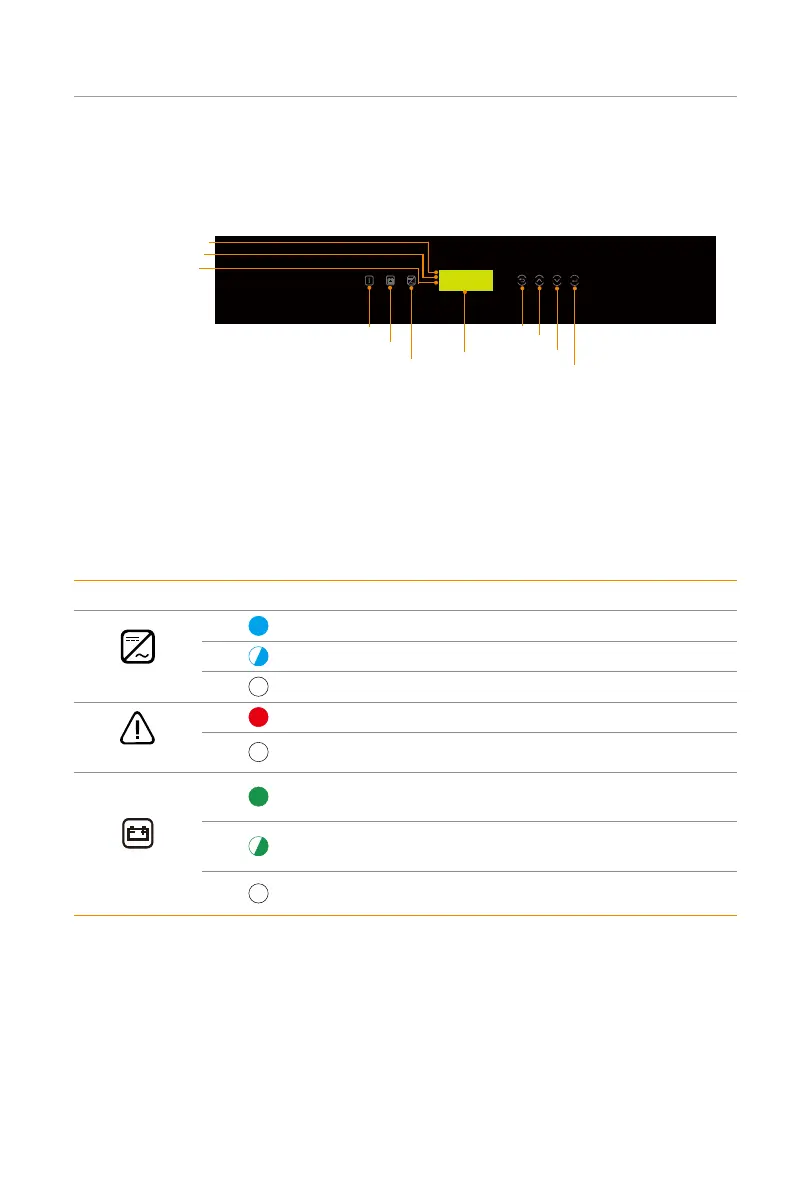

Figure 2-12 Control Panel
* The LCD screen in the whole passage is subject to the actual screen.
• In a normal state, the "Power", "Today" and "Battery" information will be displayed.
You can press the keys to switch information.
• In an error state, the fault message and error code will be displayed, please refer
to “11.1 Troubleshooting” in the user manual.
Table 2-2 Definition of indicators
LED indicator Status Definition
Operating
Solid blue The inverter is in a normal state.
Blue blinking The inverter is in a waiting state.
Light off The inverter is in a fault status.
Error
Solid red The inverter is in a fault state.
Light off The inverter is in a normal state.
Battery
Solid green
The battery communication is in a
normal state.
Green blinking
The battery communication is in an
idle state.
Light off The battery is in a fault state.
* Note: When the inverter is in an idle state, you can reset the work mode, the Min SOC
and the charging periods through the inverter LCD or the SolaX APP to charge the battery
to the Min SOC in the charging periods and then awaken the inverter. Please make sure
that the actual battery SOC - the modified Min SOC ≥ 2% under a specific work mode,
so that other modifications are effective. When the current system time is within the new
charging periods you reset, the battery begins charging.
