Mechanical Installation
6.2 Floor Mounting
6.2.1 One Tower for Floor Mounting
NOTICE!
• The mode of floor mounting is given priority for installation.
• Take the installation procedure for Option B (three battery modules in one tower) as
an example.
Step 1: Remove dustproof covers from the base, battery module(s) and BMS before
conducting installation.
Base Battery module
BMS

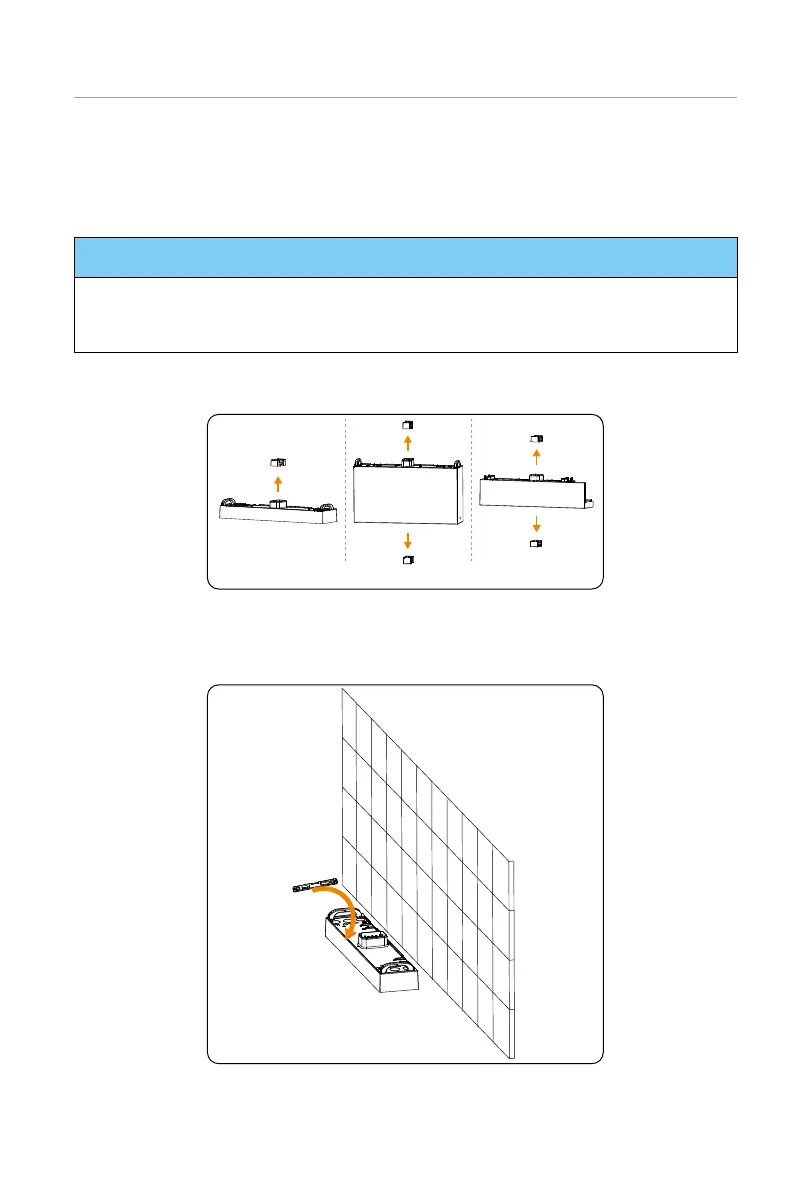

Figure 6-3 Removing dustproof covers
Step 2: Place a spirit level to check whether the base is even. If yes, refer to the Step 4; if
no, refer to the Step 3. The side with "R" shall be against the wall.
Figure 6-4 Determining whether the base is level
