Electrical Connection
7.2.4 Communication Connection

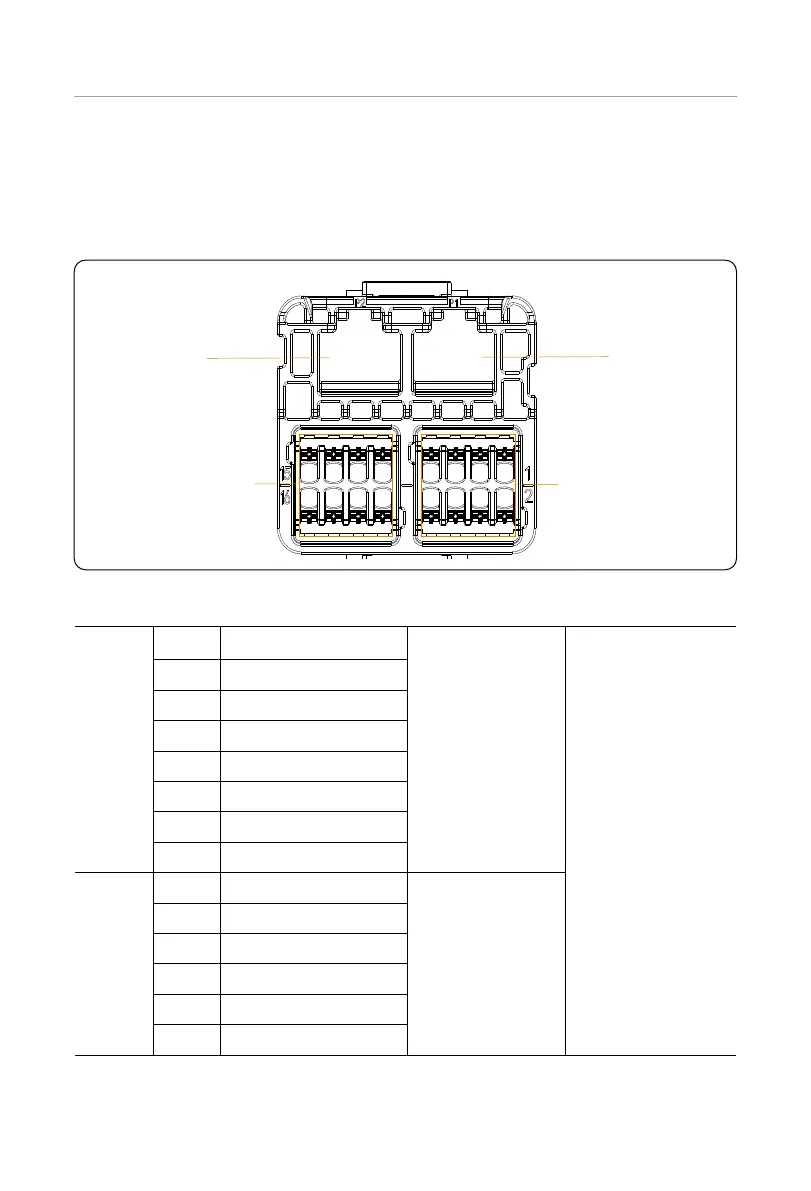

COM and CT/Meter ports are for the communication function of the inverter.
Communication Port Introduction
8
7
6
5
4
3
2
1
16
15
14
13
12
11
10
9
P1
P2
P4
P3
Table 7-1 Description of COM
P1
1
PARALLE_SYNC1
Parallel signal out-
put
Parallel signal port
(RJ45)
2
PARALLE_SYNC2
3
EPSBOX_RELAY_VCC
4
PARALLE485A
5
PARALLE485B
6
GND_COM
7
CAN_L
8
CAN_H
P2
1
PARALLE_SYNC1
Parallel signal input
2
PARALLE_SYNC2
3
N/A
4
PARALLE485A
5
PARALLE485B
6
GND_COM
