SolaX Power X3-IES Series User Manual

9
2 Product Overview
2.1 System Description
System Overview
S
o
laX
√
！
PV
PV
PV
PV
PV
PV
X3-IES
system
X3-IES
system
X3-IES
system
X Cloud
X3-PBOX-60kW-G2/
X3-PBOX-150kW-G2/
X3-Matebox G2
Datahub
DRM
Adapter
Box G2
EV
Charger
Generator
Grid
Load
DC
AC
COM

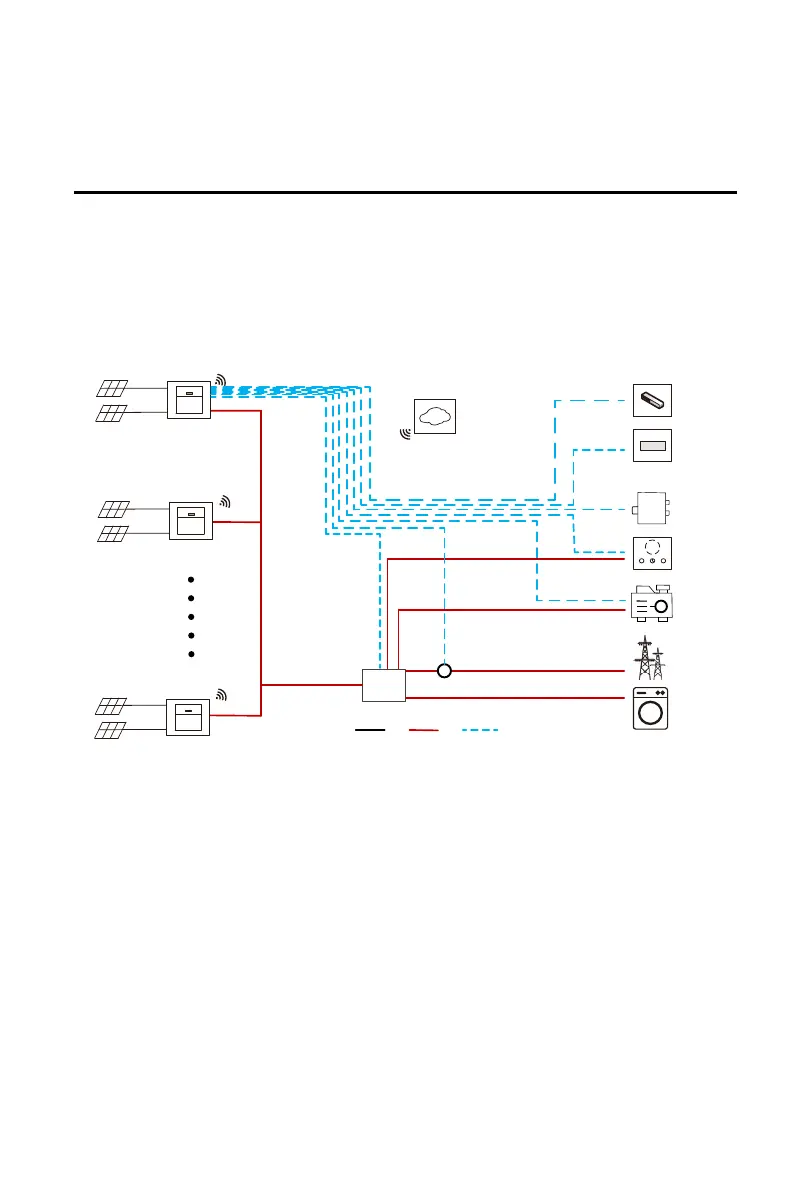

Figure 2-1 System overview diagram
X3-IES System
X3-IES series residential energy storage system integrates the inverter and a
T-BAT-SYS into one.
Inverter
The X3-IES series inverter is a transformerless three-phase PV grid-connected
inverter which is designed to convert the direct current generated from the PV
modules into grid-compatible AC current and feeds the AC current to the utility
grid or store in the batteries for future use. The way it works depends on user
preferences.
T-BAT-SYS
The T-BAT-SYS is a high voltage battery. The battery communicates with inverter
via BMS and must comply with the specification of regulations.
CT/Meter

SolaX Power X3-IES Series Specifications

General

Brand	SolaX Power
Model	X3-IES Series
Category	Inverter
Language	English
