132
Electrical Connection
M4*8
1.5±0.2 N·m

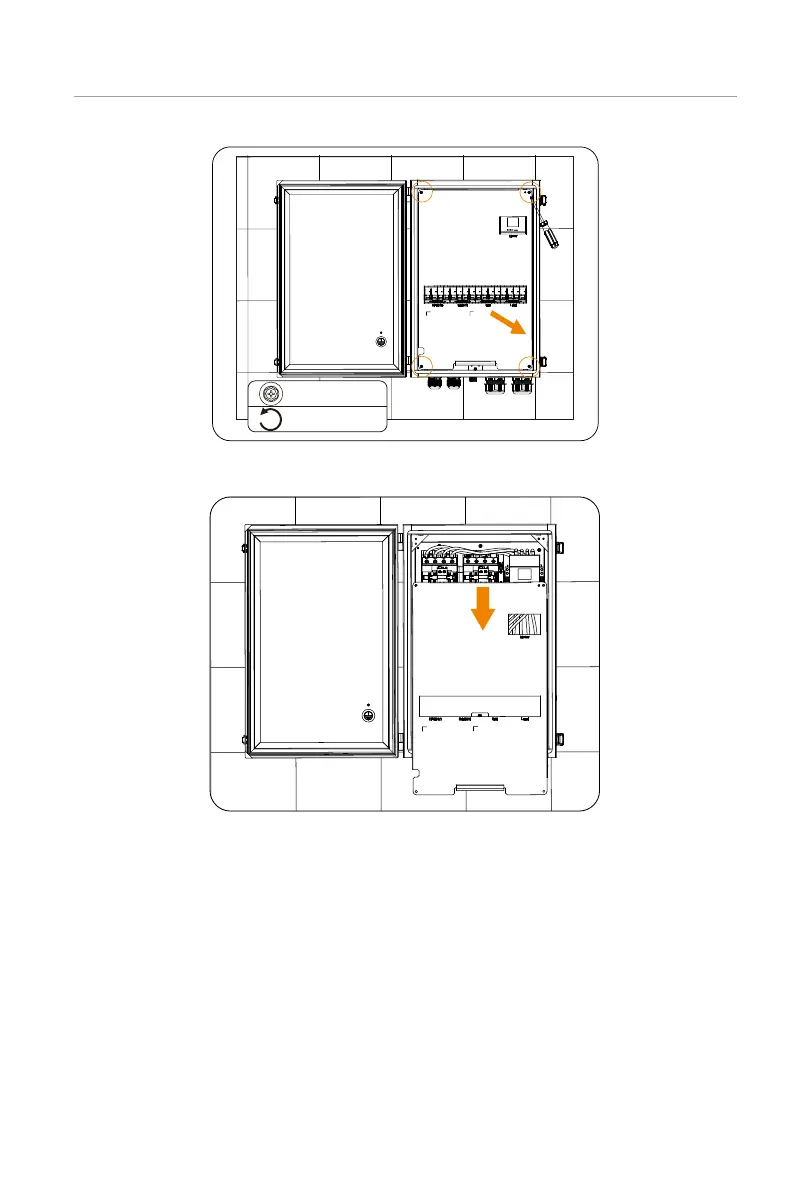

Figure 7-75 Loosening screws on the plate
Figure 7-76 Removing the plate
Step 3: Confirm the ports which needs to be wired in the next step.
