Product Overview
System Diagram A (applicable to most countries)
⋯
N
R
S
T
⋯
⋯
⋯
⋯
R
PE
N
S T R
N
S T
PE
Inverter
BAT+ BAT- BMS
T-BAT-SYS
Grid
EPS
PV1
PV2
COM
METER/CT
CT
Breaker
Main Breaker
E-BAR
Grid
Loads
Loads
N-BAR for EPS loads
N-BAR for loads
Breaker
Breaker
RCD
Distribution box
Dongle
PV

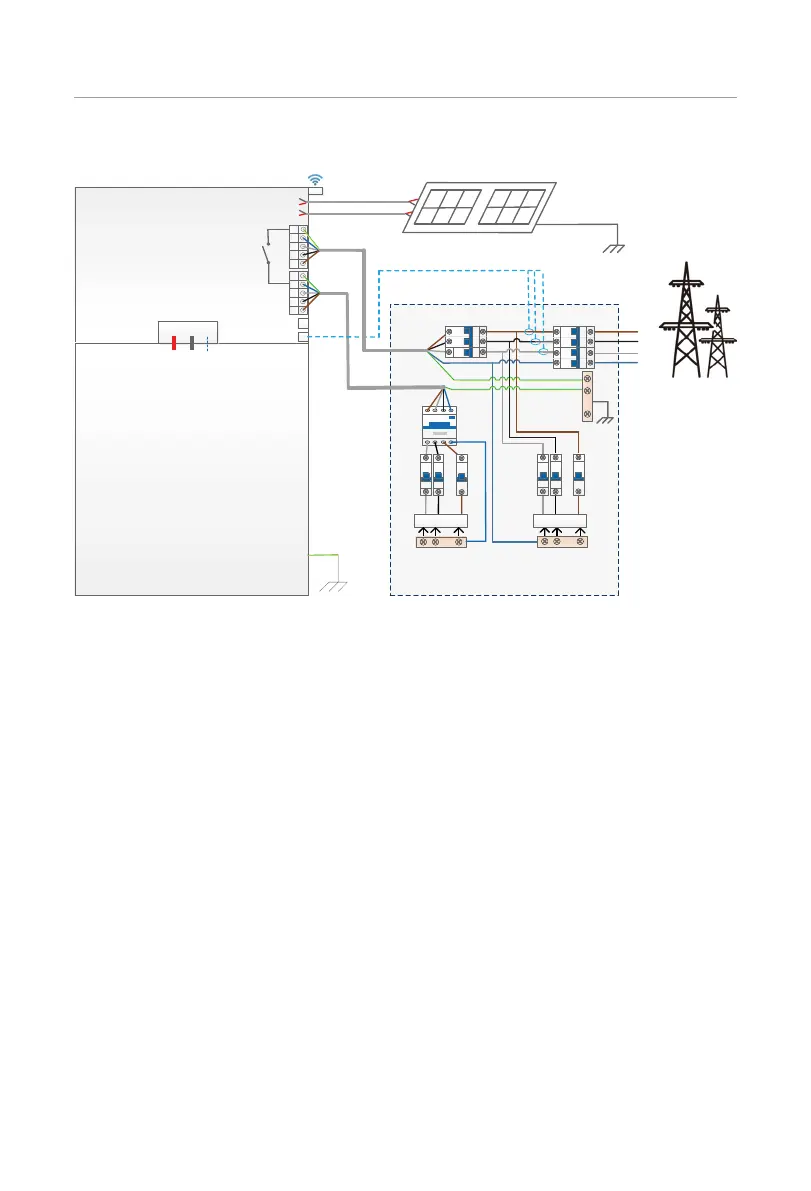

Figure 2-24 System diagram without X3-Matebox G2 for most countries
