Spectra-Physics InSight X3 - Figure 7-2 Unscrew Filter Assembly Bottom; Figure 7-3 Replace Filter in Assembly

7-4 Maintenance and Diagnostics
Chiller Maintenance Tips

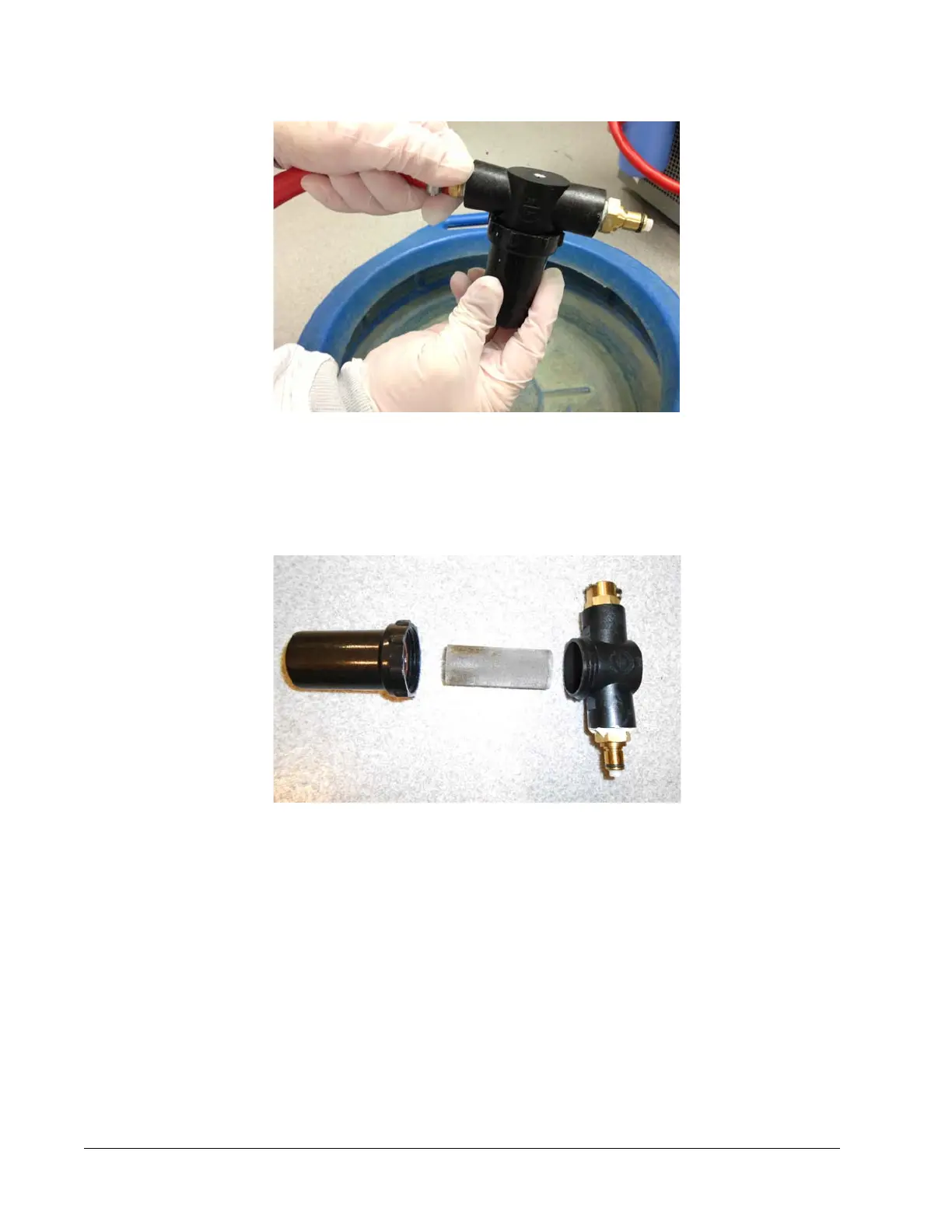

Figure 7-2 Unscrew filter assembly bottom
6. Rinse the mesh filter under water.
7. If needed, wash the mesh in the ultrasonic cleaner.
8. Replace the mesh filter into the filter assembly (Figure 7-3).
Figure 7-3 Replace filter in assembly
9. Screw the filter assembly back together.
10. Plug the hose back into the chiller and laser head (Figure 7-4).
