11
2
2
3
4
4
5
6
7
6
8
9
10

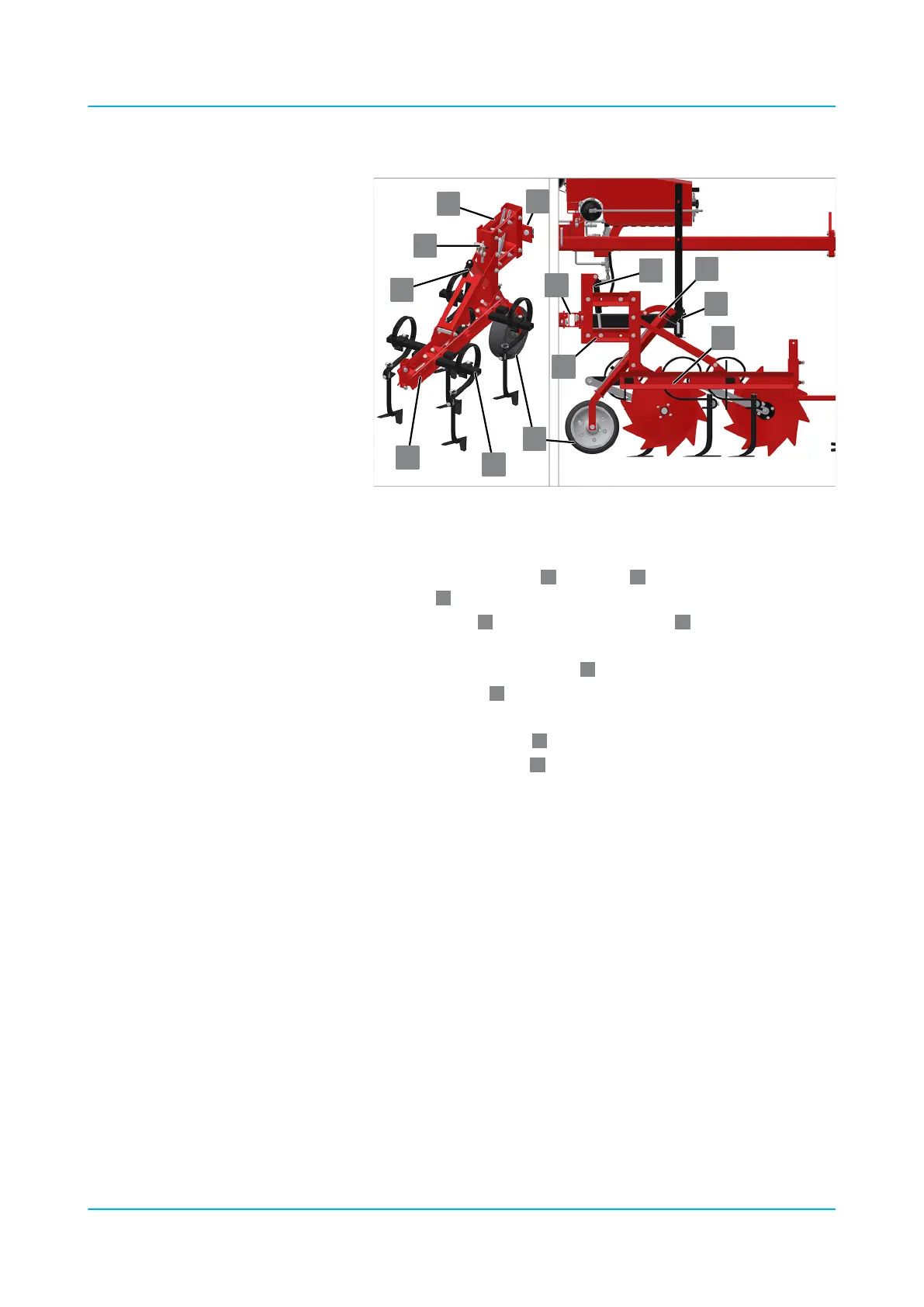

Examples of Combi-Elements
1
Depth guiding wheel
2
Crank
3
Scale for depth adjustment
4
Tool holder
5
Sliding part
6
Parallelogram
7
Latch
8
Hydraulic ram
9
Fastening element for square tube
10
Fastening element for prole tube
The Combi-Element includes:
n Depth guiding wheel
1
with crank
2
for depth adjustment and
scale
3
(not shown)
n Tool holder
4
for 5 tools and sliding parts
5
n Parallelogram
– With lifting mechanism
7
– With ram
8
for hydraulic lifting
n Fastening element for toolbar
– For square tube
9
– For prole tube
10
Combi-Element
Design and description
en-GB | Item no. 17513597 | BA 02/05-2022 29
