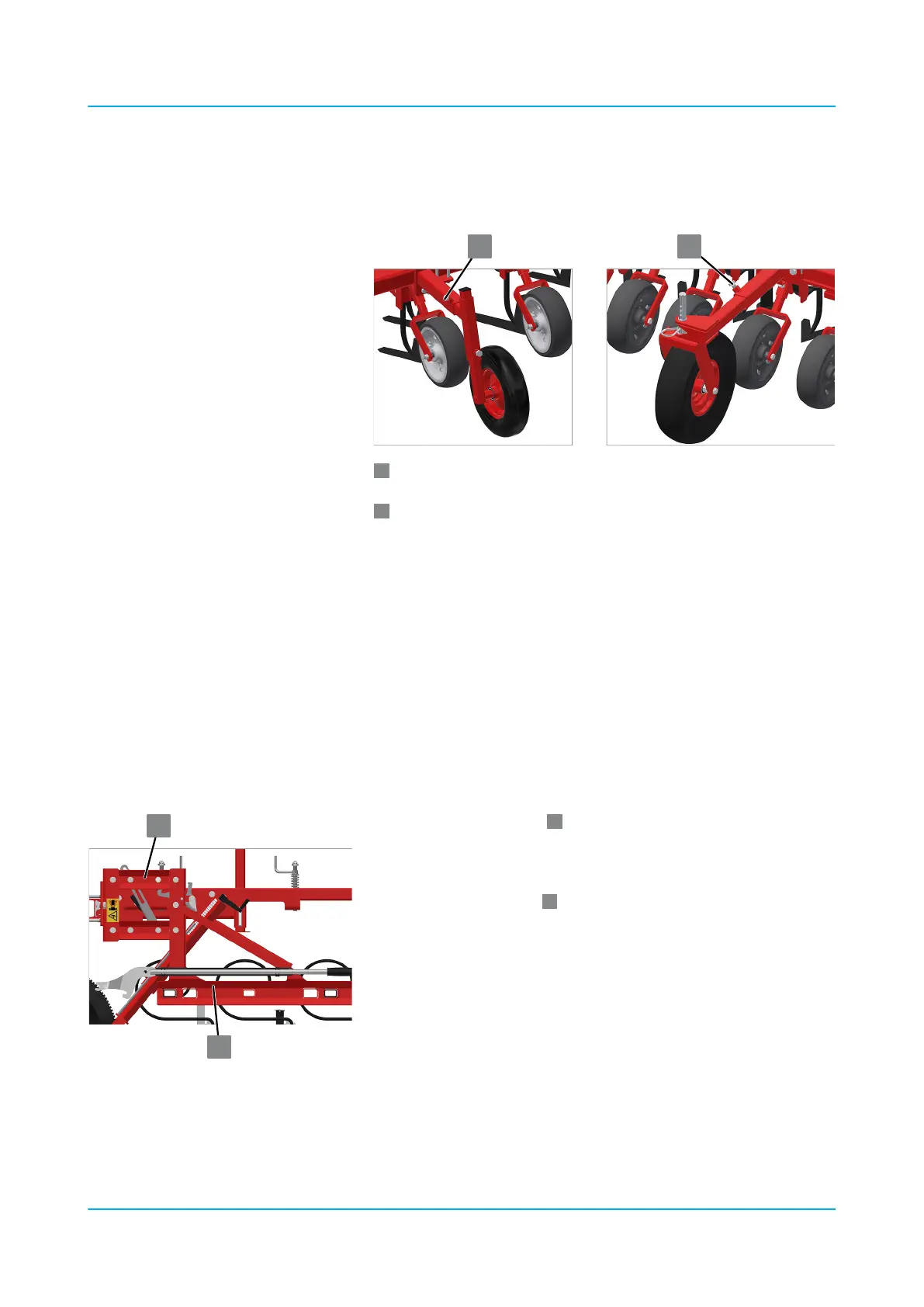

6.3.2.3 Length adjustment for various types of support wheels
The length of the following support wheels can be adjusted:
Set screw for the length adjustment of the support wheel at the
slanted tube
Set screw for the length adjustment of the support wheel with a
peg
To adjust the length:
1. Undo the set screw.
2. Pull out or push in the support wheel to the desired length at the
tube.
3. Tighten screw.
6.3.2.4 Align tool holder and parallelogram
The movable parallelogram of the hoeing element at the transition to
the toolbar determines the position of the hoeing element.
To align the parallelogram
:
► Retract or extend the top link until the parallelogram is aligned
exactly at a right angle.
ð
The tool holder
is horizontal and parallel to the ground.
Operation
en-GB | Item no. 17513597 | BA 02/05-2022 71
