n To adjust the working width:
– Move the tool outwards or inwards on the sliding part, or
– move the sliding part with a tool outwards or inwards.
Ä Chapter 6.3.4 ‘Check and adjust distances of the hoeing ele‐
ments’ on page 73
n To adjust the working depth:
– Move the tool leg up or down in the tool holder.
6.3.5.2 Special tool adjustments
Pitch angle
1.
Undo the screw nut
1
on the back of the blade.
2.
Rotate the blade in the slot
2
and adjust it to the desired angle.
3. Retighten the screw.
Aggressiveness due to tine spacing
Set tines further apart for younger crops. With robust, strong plants, the
tines may overlap and therefore work more aggressively.
1.
Undo the nuts on the screws
1
beneath the slots.
2. Move the tines inwards or outwards.
3. Tighten the nuts.
Angle to the ground
Adjust atter for younger crops. The angle to the ground can be
reduced for robust, strong plants.
1.
Undo the hexagon nut above the pin
2
.
2.
Move the pin in the slot. Use the scale
3
to adjust the angle.
3. Tighten the hexagon nut.
Adjusting the working width and
depth

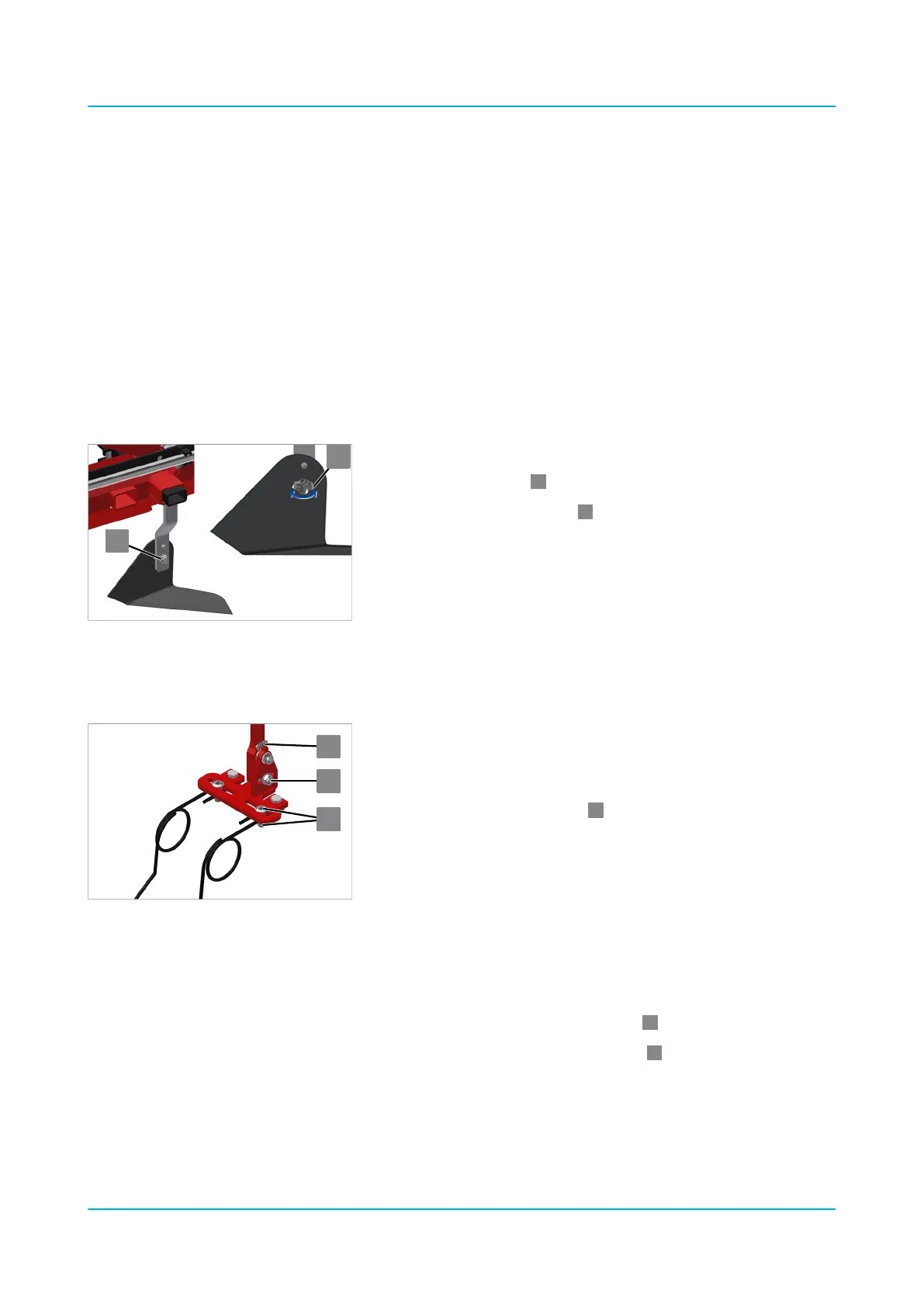

L-blade
1
2
1
Screw nut, back of blade
2
Screw in the slot
Torsion weeder
3
2
1
3
Angle scale
2
Hexagon nut
1
Screw nut
