Working width
1.
Undo the screw
1
.
2. Move the legs in the retainer tube.
3. Retighten the screw.
Working depth
1.
Undo the screw
2
.
2. Adjust the arm length.
3. Retighten the screw.
Parking position
The serrated protection discs are attached to a spring
1
. They can be
lifted manually to a parking position.
1. Press the disc on the arm from the inside outwards.
2.
Raise and hook it into the centre
2
or upper
3
retaining positions.
INFORMATION
The serrated protection disc can also be mounted in the
reverse running direction.

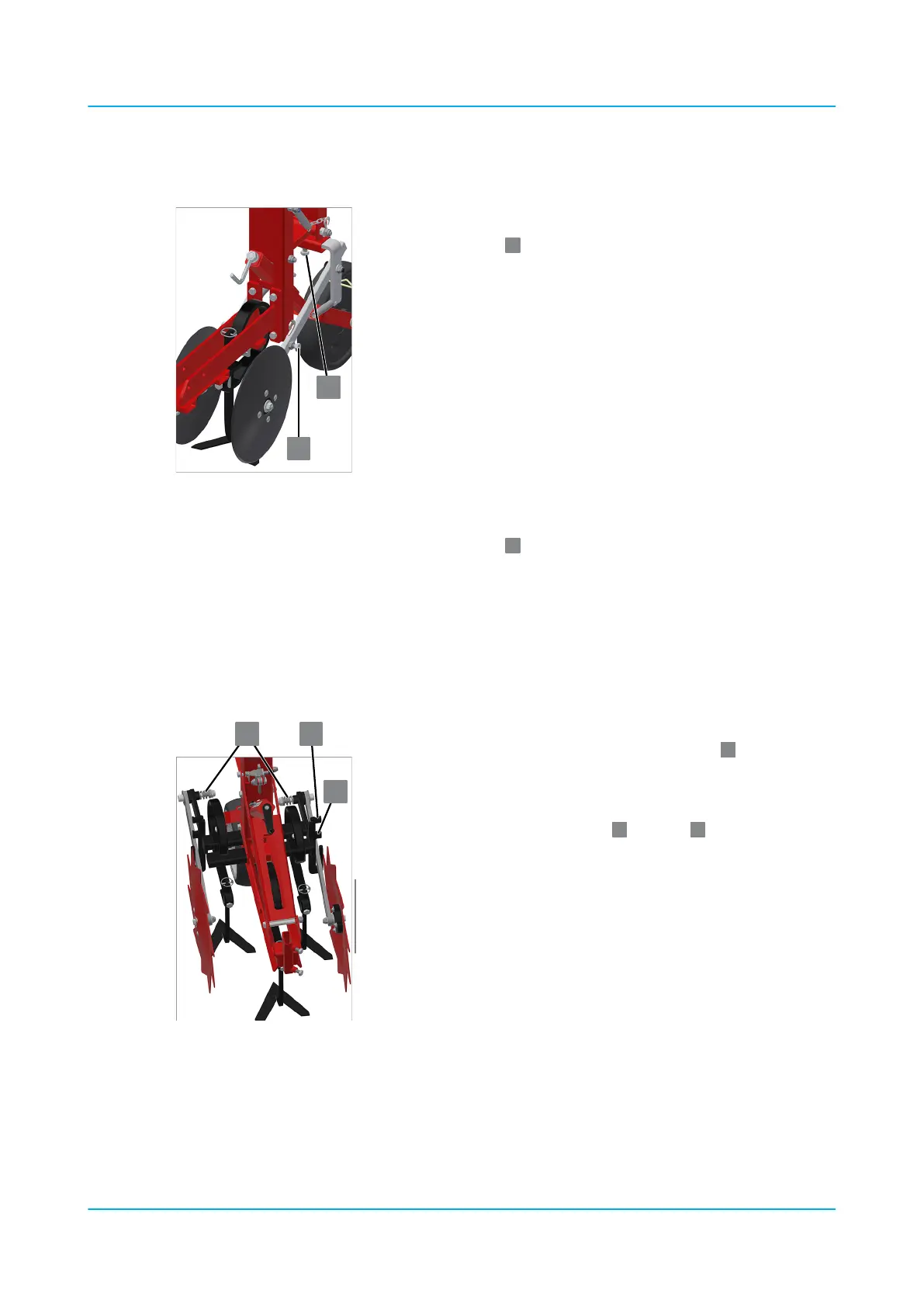

Small protection discs
1
2
1
2
Serrated protection disc
1
2
31
1
Spring
1
2
Centre retainer
3
Expansion bush
