Instruction Manual for AS380 Series Elevator Integrated Drive Controller
107
4- 葫芦孔

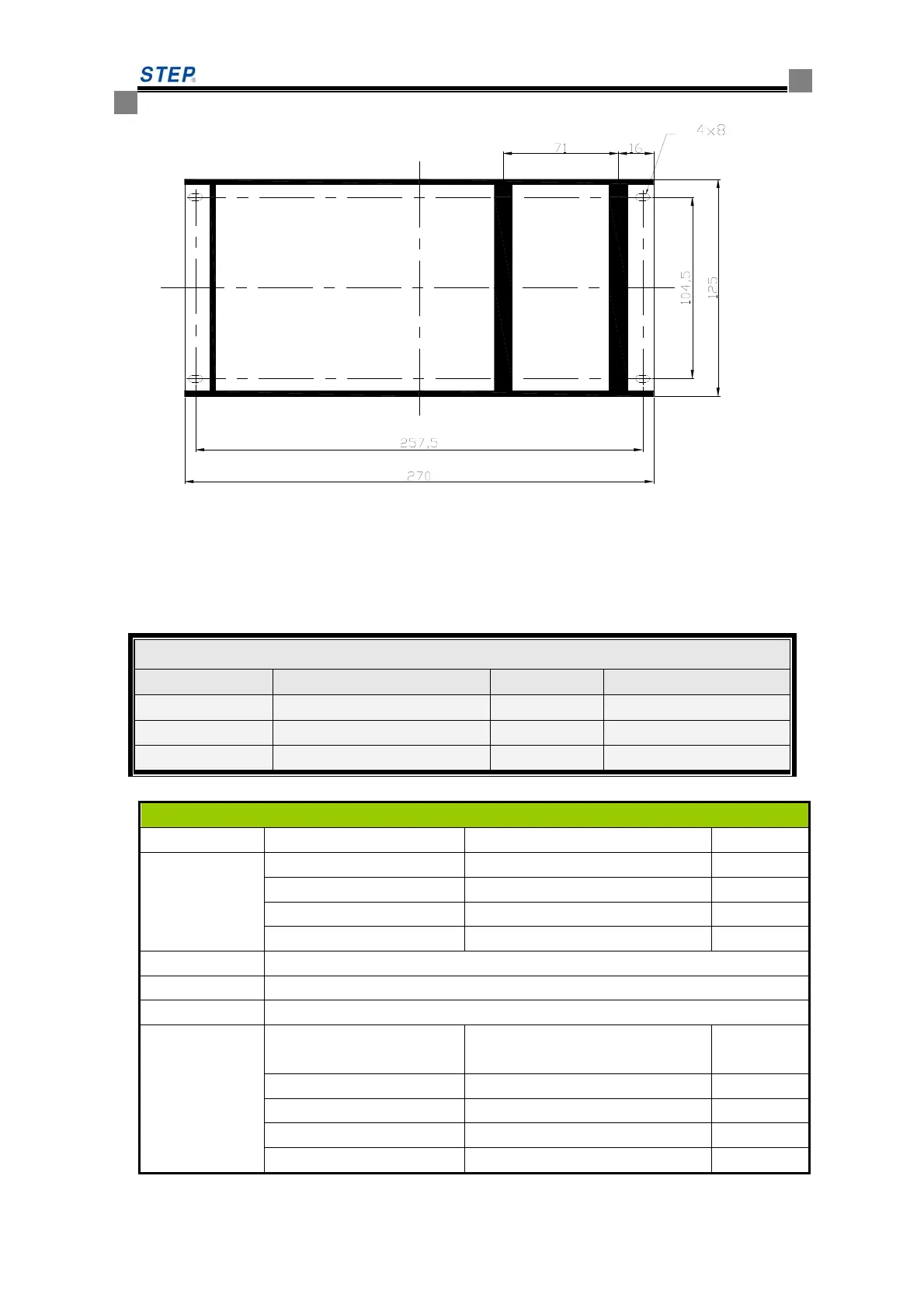

Fig 6.5 car control panel installation dimension
6.3.2 Car control board SM.02/G plug-in and port definition introduction
Table 6.5 car control board SM02/G plug-in specification
Table 6.6 car control board SM.02/G port definition
Port Definition
Socket No Port No Definition remark
JP1
1 24V red
2 GND yellow
3 CANH green
4 CANL blue
JP2
connecting instruction board
JP3
connecting car extension board
JP4
car adjusting port
JP5
1 Input GX0 ， attendant change
direction
Default NO
2 Input GX1， attendant Default NO
3 Input GX2, Independent Default NO
4 Input GX3, attendant by-pass Default NO
5 Input GX4, firemen Default NO
Car control board
Socket No model Socket No model
JP1
CH3.96-4A
JP5
5.08-6P
JP2/JP3
IDC-14P
JP6/JP7
CH2510-4A
JP4
B4B-XH-A
