STEP AS380-4T07P5 User Manual

Instruction Manual for AS380 Series Elevator Integrated Drive Controller
111
Serial No
the definition of 1#
instruction
controller pin
the definition of 2#
instruction controller
pin
…
the definition of 8#
instruction controller
pin
JP1
Connect 1
st
floor
instruction button
Connect 9th floor
instruction button
…
Connect 57th floor
instruction button
JP2
Connect 2nd floor
instruction button
Connect 10th floor
instruction button
… Connect 58
th
floor
instruction button
JP3
Connect 3rd floor
instruction button
Connect 11th floor
instruction button
… Connect 59
th
floor
instruction button
JP4
Connect 4th floor
instruction button
Connect 12th floor
instruction button
… Connect 60th floor
instruction button
JP5
Connect 5th floor
instruction button
Connect 13th floor
instruction button
… Connect 61st floor
instruction button
JP6
Connect 6th floor
instruction button
Connect 14th floor
instruction button
… Connect 62nd floor
instruction button
JP7
Connect 7th floor
instruction button
Connect 15th floor
instruction button
… Connect 63rd floor
instruction button
JP8
Connect 8th floor
instruction button
Connect 16th floor
instruction button
…
Connect 64th floor
instruction button
Note: instruction button and indicator lamp connection.
Pin 1 and 2 connect respectively to the “-“ and “+”terminal of power supply of indicator. And
pin 3 and 4 connect to the instruction button terminal.

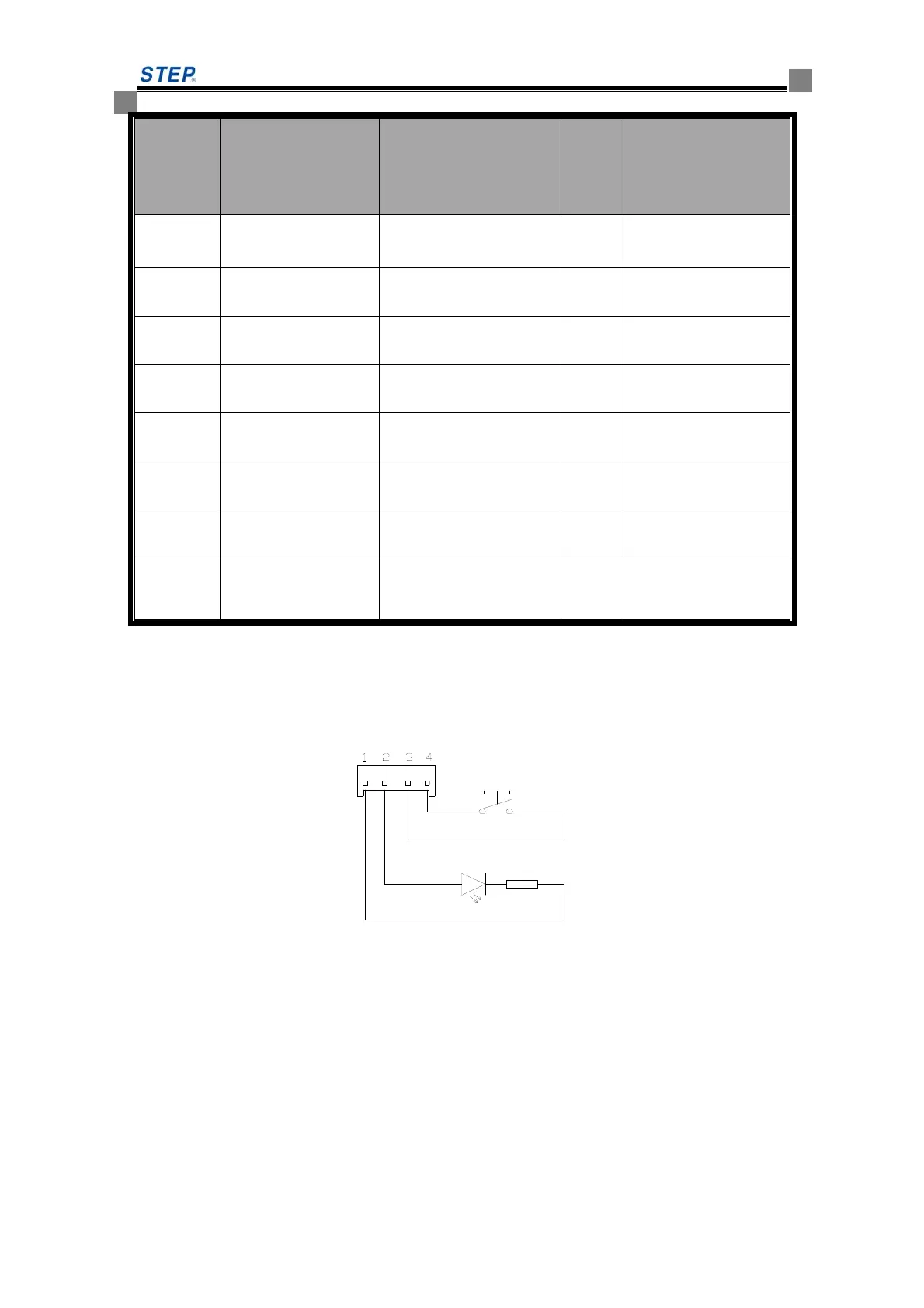

Fig 6.10 instruction button and indicator lamp wiring diagram
6.5 call & display control board
6.5.1 call &display control board SM-04-VRFS
SM-04-VRF outside view and installation dimension

STEP AS380-4T07P5 Specifications

General

Brand	STEP
Model	AS380-4T07P5
Category	Controller
Language	English
