6.5.7 Call& LED display control panel SM-04-VSD

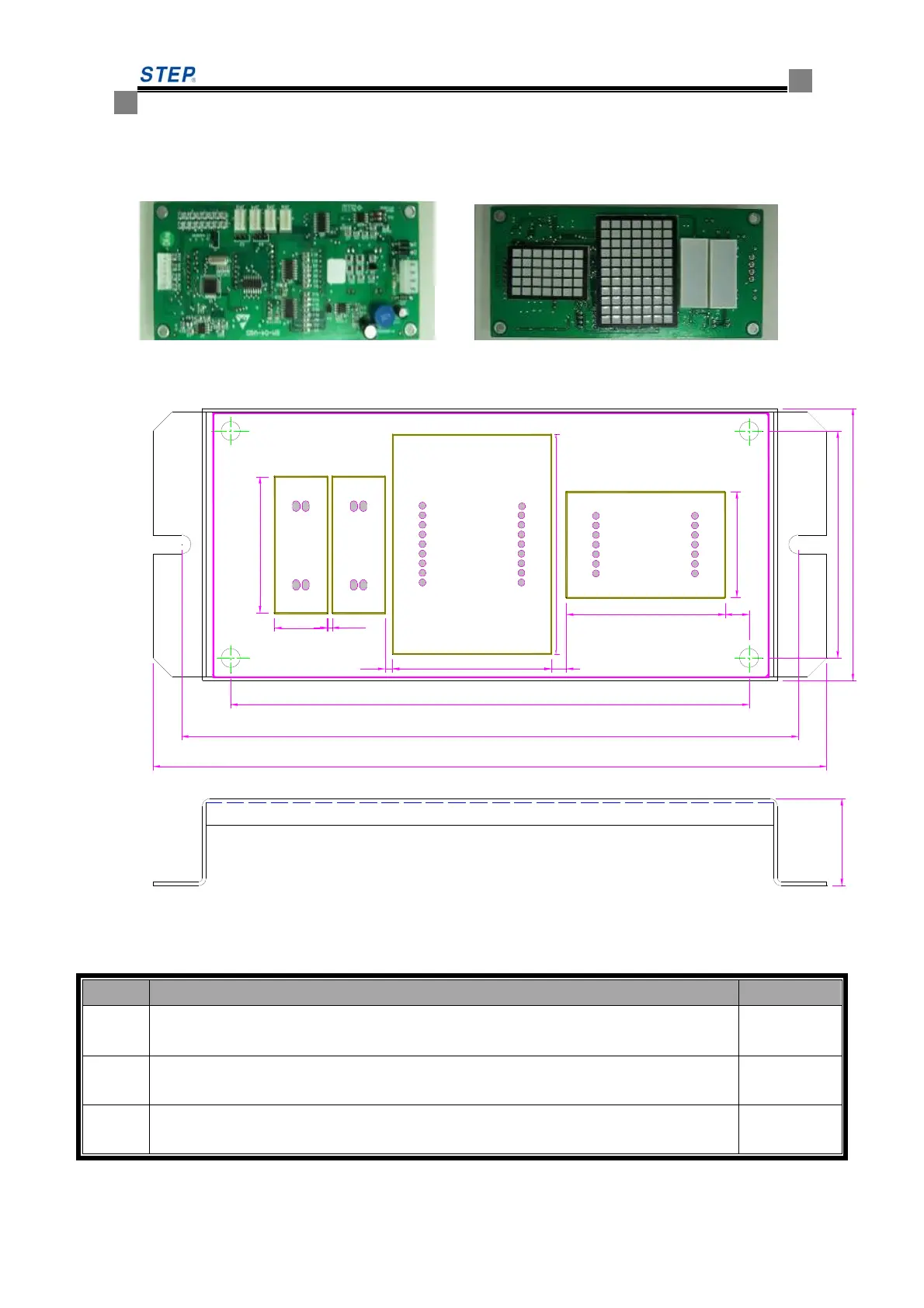

The outside view and installation dimension of SM-04-VSD
Fig 6.27 SM-04-VSD outside view
28
23
72 60
163
178
137
42
42
13.9
2 4
1.3
36
58
6.3
Fig 6.28 SM-04-VSD installation dimension
☆ SM-04-VSD plug-in specification and port definition
Table 6.17 SM-04-VSD plug-in specification and port definition
Serial Descriptions Remarks
JP1
Program burning record slot/ RS232 communication port
JP2
Serial communication port, in which pin 1 is TXV+, pin 2 is TXV-, pin 3 is TXA+, pin
4 is TXA-
CH3.96-4
JP3
Up-call terminals, of which Pin 1- and Pin 2+ for button indicator, Pin 3 and Pin 4 for
button input.
CH2510-4
