Instruction Manual
for
AS380 Series Elevator Integrated Drive Controller
86
2 Door open/close control
When Bit 3 of parameter F165 (door open./close control ) is set to 1, the door open/close
function of LED operator is activated. Press the F1 at this interface to make system output the
door open signal. Press F2 to make the system output door close signal.

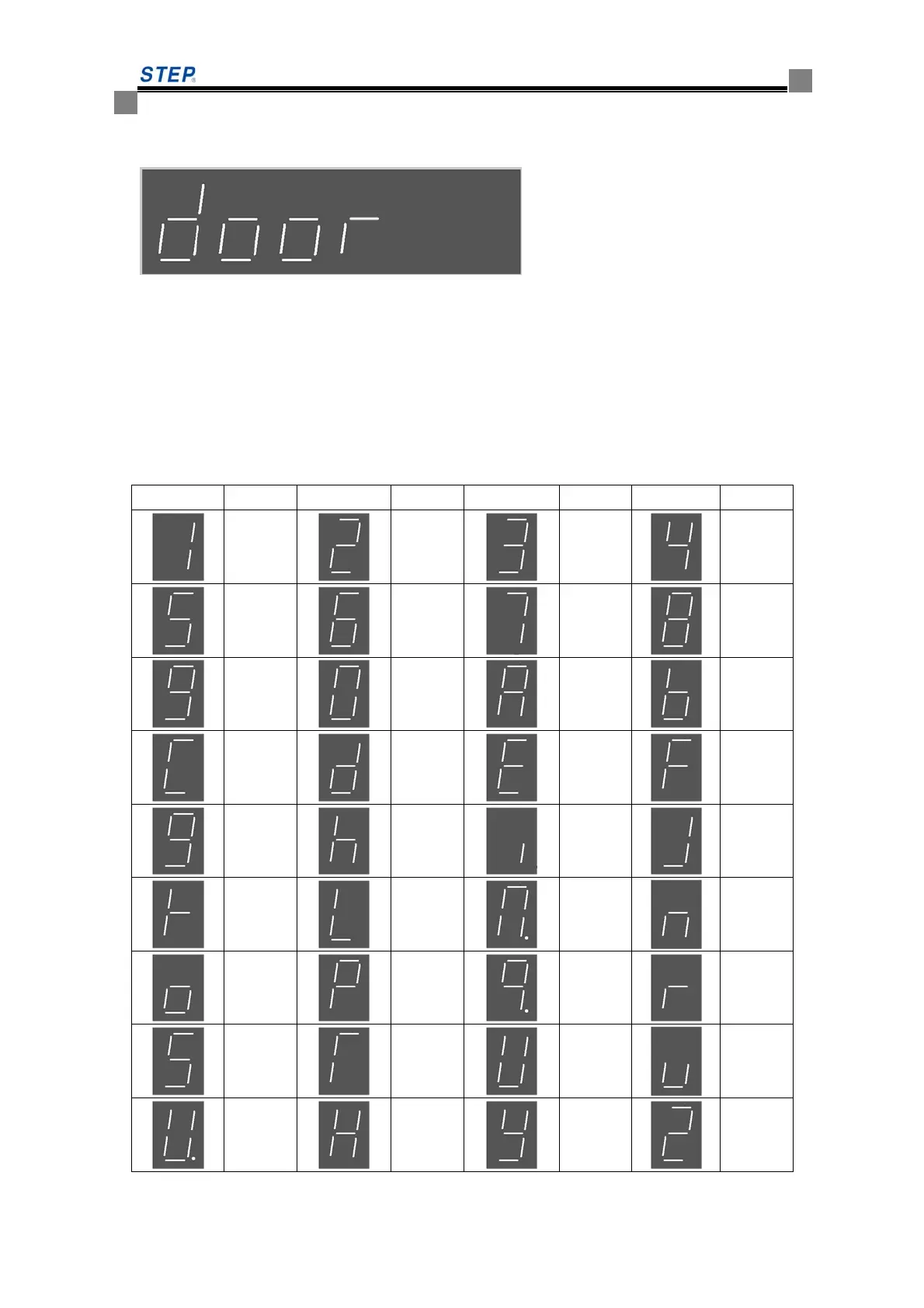

5.1.4 graphic symbol of number and letter on LED screen
Due to the confinement of LED structure, the number and letter displayed somehow difficult to
understand, therefore the parallel table about the symbol and related definition is given as below
display meaning display meaning display meaning display meaning
1
2
3
4
5
6
7
8
9
0
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
