STEP AS380-4T07P5 User Manual

Instruction Manual for AS380 Series Elevator Integrated Drive Controller
113
S1
Plug in jumper to set the address code of the display board and remove the jumper
after the setting complete
S2
Bridge S2.1 and S2.2 and use JP2 as the button of three wire system, bridge S2.2 and
S2.3 ( or do not bridge) as the button of four wire system
S3
Bridge S3.1 and S3.2 and use JP3 as button of three-wire system, bridge S3.2 AND
s3.3 ( or do not bridge) as button of four wire system
SW1
Resistor jumper of serial communication terminal and shortening mean the connection
to the built-in 120 ohm resistor
6.5.2 Call& display control board SM-04-HSC

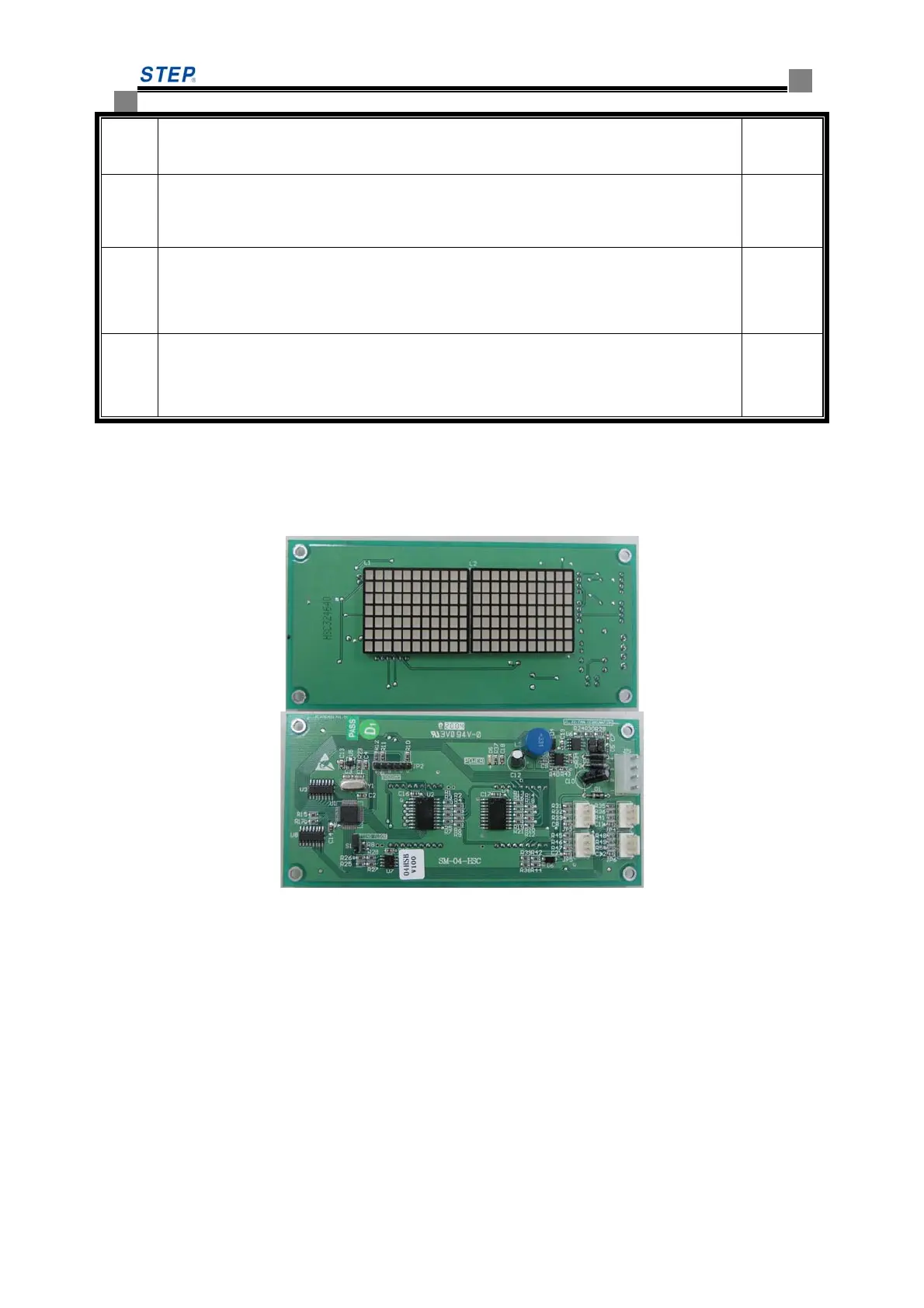

Outside View & Mounting Dimensions of SM-04-HSC
Fig. 6.17 Outside View of SM-04-HSC
