Instruction Manual
for
AS380 Series Elevator Integrated Drive Controller
16
integrated drive controller is in derated application is as below:
1000 2000 3000 4000（
）
100%
90%
80%
电流

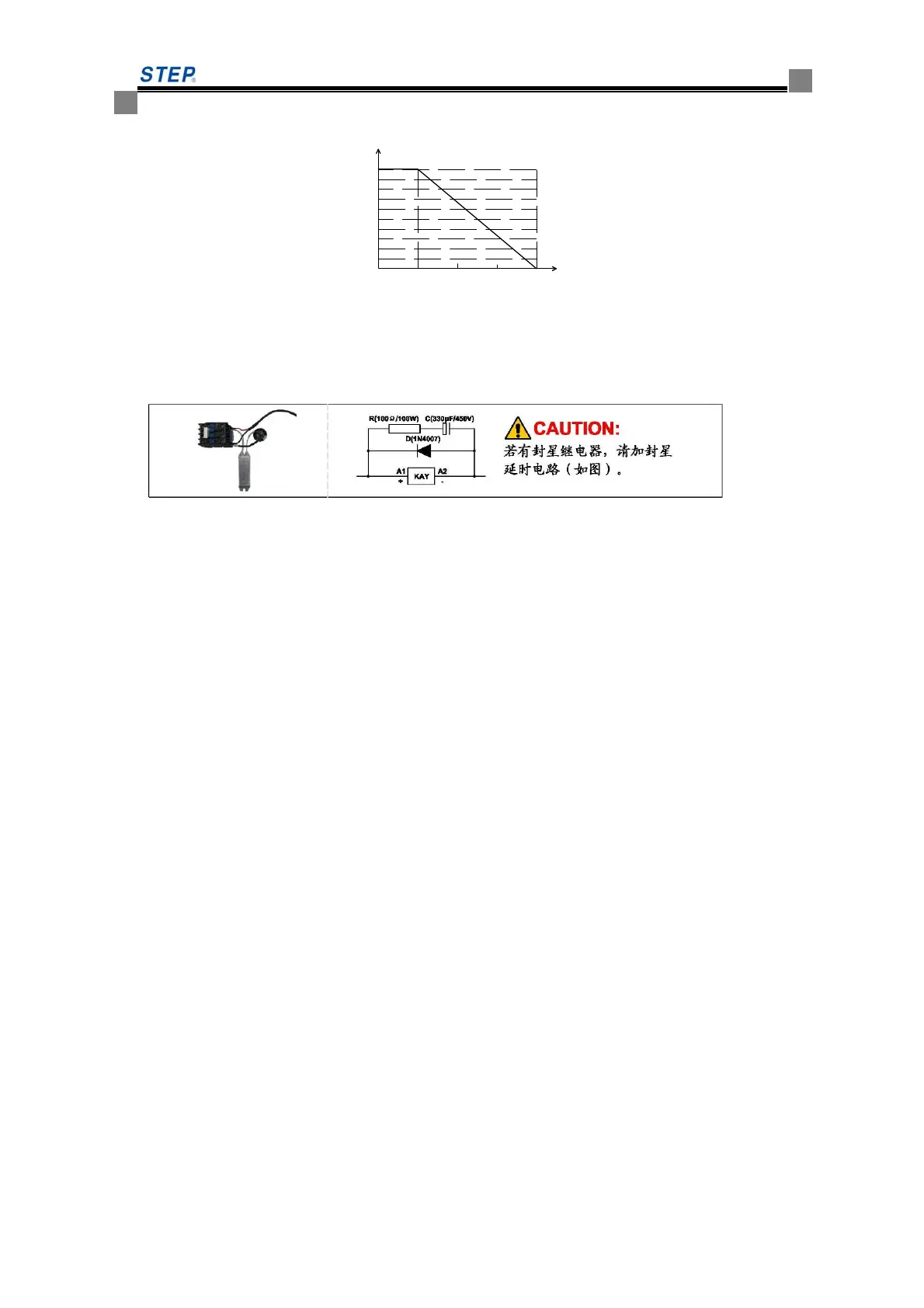

Fig 1.4 the diagram about the relation between the rated output current and altitude
1.6.6 Synchronous sealing star delay
Fig 1.5 sealing star delay circuit tag
1.6.7 Low Voltage directive complies
That our products comply with EN61800-5-1 ： 2007standards, which comply with the Low
Voltage Directive (Low Voltage Directive 2006/95/EC).
If the inverter as a component integration in the entire electrical system, make
sure theentire system meets the requirements of EC Directives.
Note:
① machine make sure the ground, and make sure the ground terminal is a separateground.
② inverter prohibited for use in of ᇞ ground and IT power systems.
③ If you are loading the cabinet, make sure that the cabinet ground.
④ use CE certified circuit breaker, electromagnetic contactor, and other accessories.Leakage
circuit breakers, please use the B-type leakage circuit breakers.
⑤ inverter in the overvoltage catalog III, Pollution Degree II, under the conditions
ofuse. The level of protection of the inverter protection class Ⅰ
1.7 waste disposal
Discarded integrated drive controller should be treated as the industrial waste
1.7.1 Disposal of capacitors
Burning electrolytic capacitor of main circuit and PCB may cause explosion, therefore,
electrolytic capacitor not allowed.
