Instruction Manual for AS380 Series Elevator Integrated Drive Controller
67
JP2.7 V＋
Encoder power
positive pole
Voltage 5VDC，max output current 500mA
JP2.8 V-
Encoder power
negative pole
JP2.9 PE
Shield
grounding
shield line grounding terminal
4.7.4 Endat absolute value PG card
Endat absolute value PG card (model AS.l06/l) can receive endat output signal of encoder,
which mean it can install the encoder with endat output signal. For example the HEADS model:
1313 or 413 encoder
4.7.4.1 Endat absolute value PG card terminal layout
Endat absolute value PG card ( model AS.L06/L ) terminal layout see fig 4.24

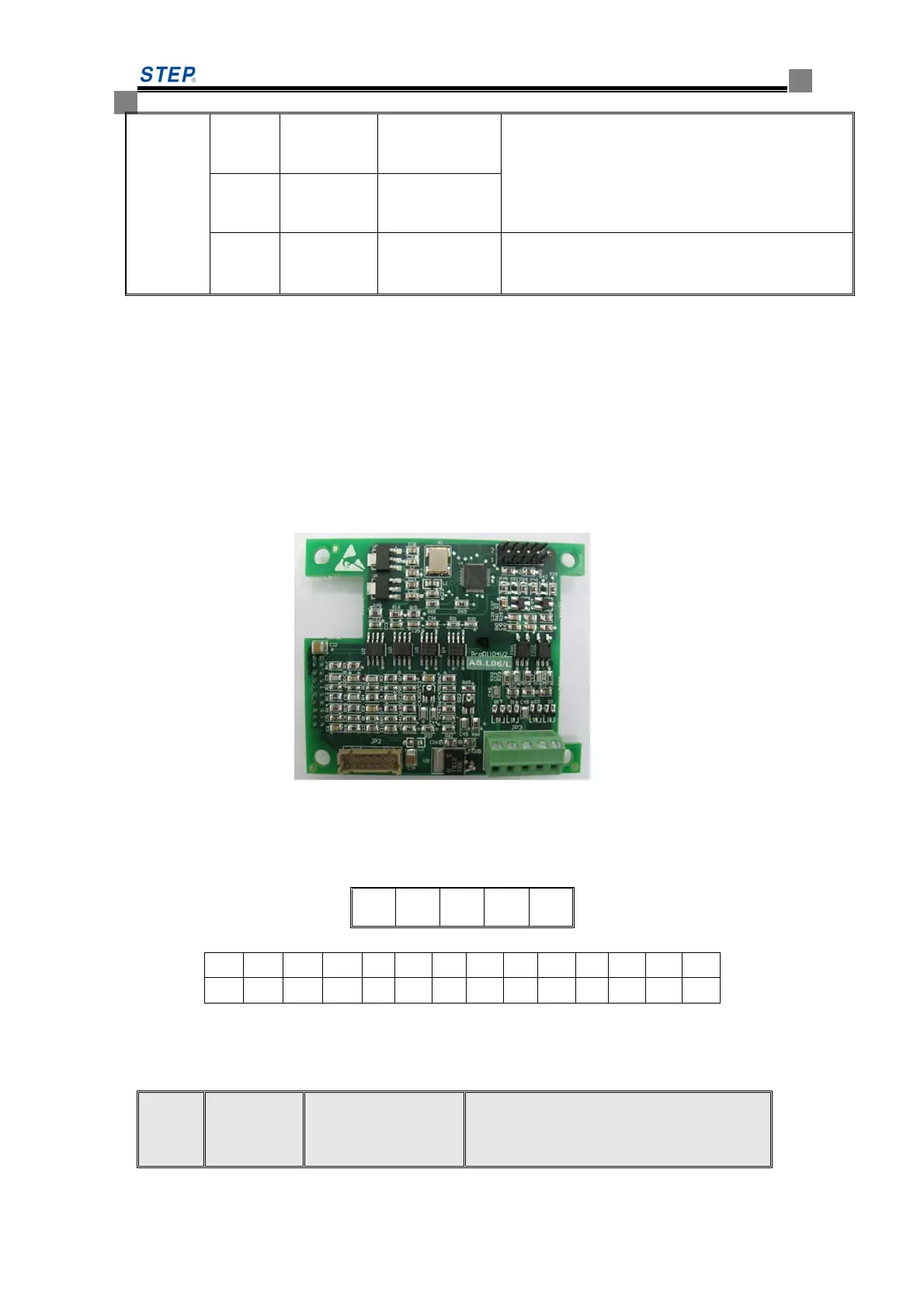

Fig .4.24 Endat absolute value PG card terminal layout
4.7.4.2 Endat absolute value PG card terminal label
Endat absolute value PG card terminal label as follow:
JP3 terminal label
FA V0 FB V0
12
JP2 terminal label (14 pin plug)
1 2 3 4 5 6 7 8 9 10 11 12 13 14
NC NC NC NC B- B+ A- A+ D- D+ C- C+ 0V V+
4.7.4.3 Endat absolute value PG card terminal function description
Endat absolute value PG card terminal function description see table 4.9
Table 4.9 Endat absolute value PG card terminal function description
name
Terminal
label
Terminal function
description
specification
