Instruction Manual
for
AS380 Series Elevator Integrated Drive Controller
104
Car top controller is mainly responsible for collecting part of switch-generated data
signal from car top and bottom, and transmit these signal status into main controller
through CAN bus. The switch signal is such as door-open/close input, door-open/close
in place, safety edge, overload, full load and etc.
connection of output signal of car top controller
Car controller control the relay output with the signals transmitted by CAN bus from
main controller. Its relay output control the arrival gong relay, lighting relay and etc for
function such as arrival forecast, energy-saving lighting control
6.2 car top extension board SM09I0/B introduction
6.2.1 Car top extension board SM09IO/B outside view and installation dimension

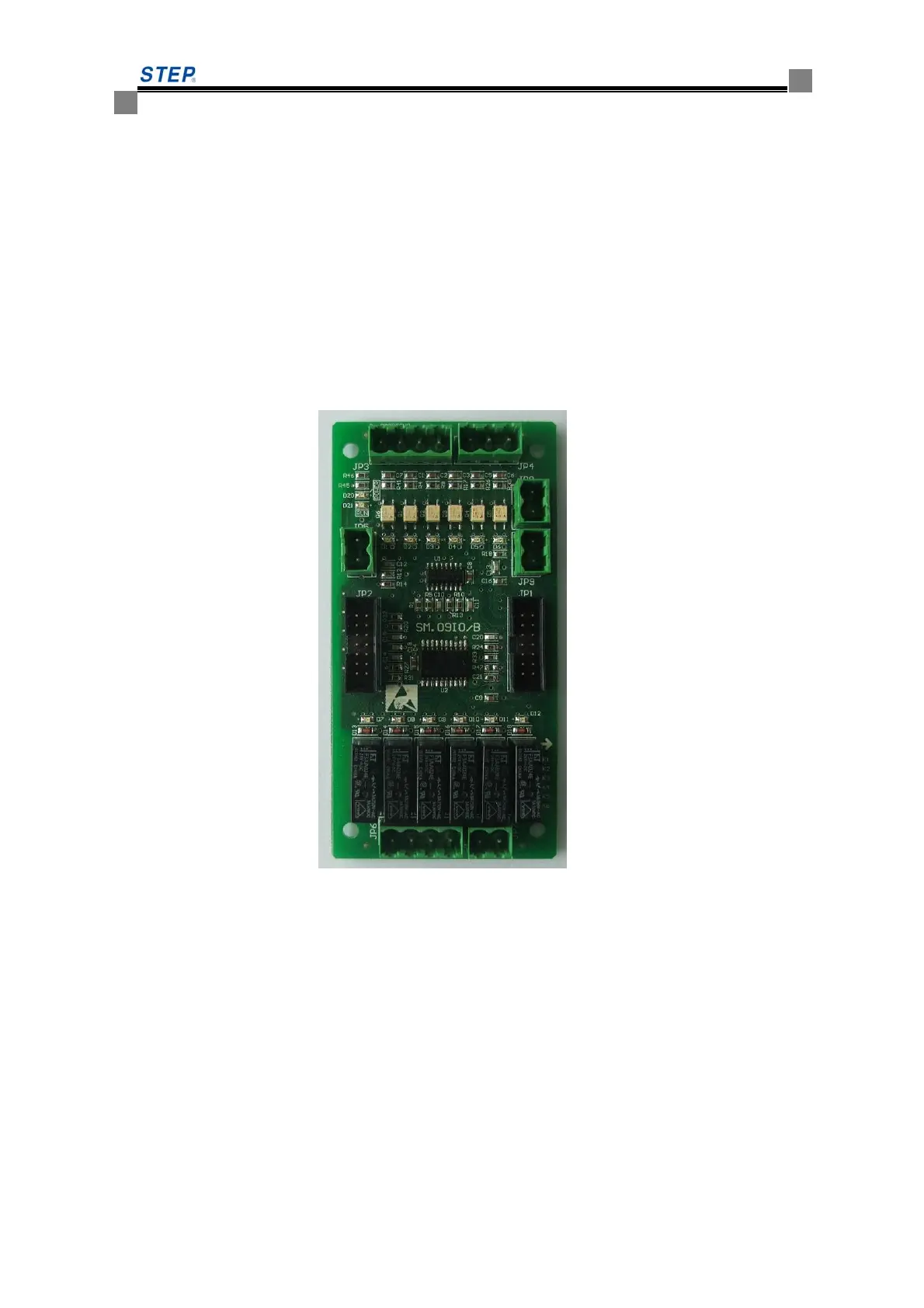

Fig 6.3 car top extension board outside view
