4.6.4 Wire specification of control circuit
The control circuit should adopt the 600V pressure-proof plastic insulated copper core wire. The
wire specification and fastening torque see table 4.5
Table 4.5 wire specification and fastening torque
model
Spec of connectible
wire mm
2
Spec of
recommended wire
mm
2
Fastening torque
（N.m）
AS380 all series
0.75～1 0.75 1.5
The wire specification is subject to the surrounding temperature 50℃ and allowable wire
temperature 75℃.

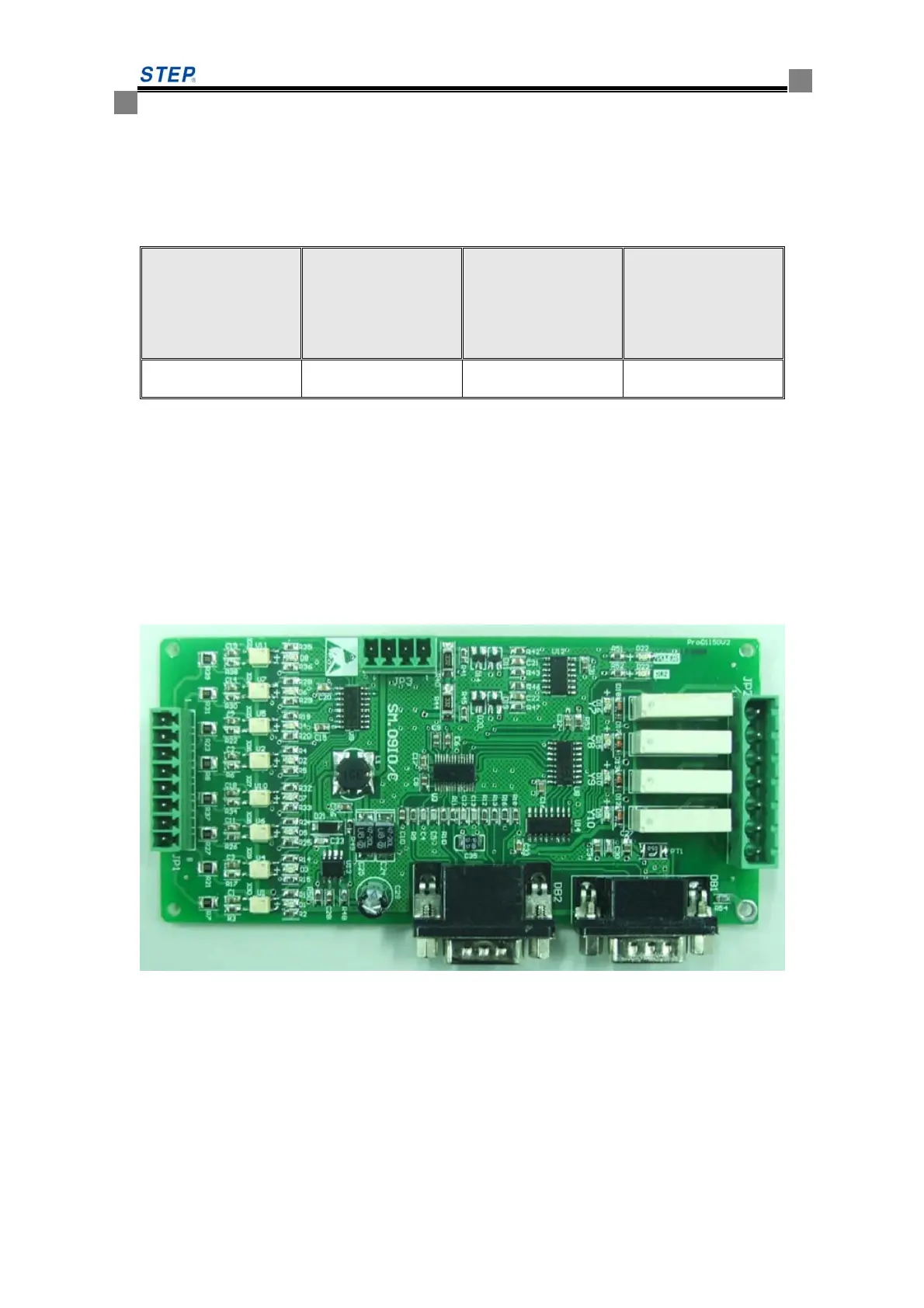

4.6.3 main extension board SM09I0/C introduction
4.6.3.1 main extension board SM09I0/C outside view and installation dimension
