Instruction Manual for AS380 Series Elevator Integrated Drive Controller
59

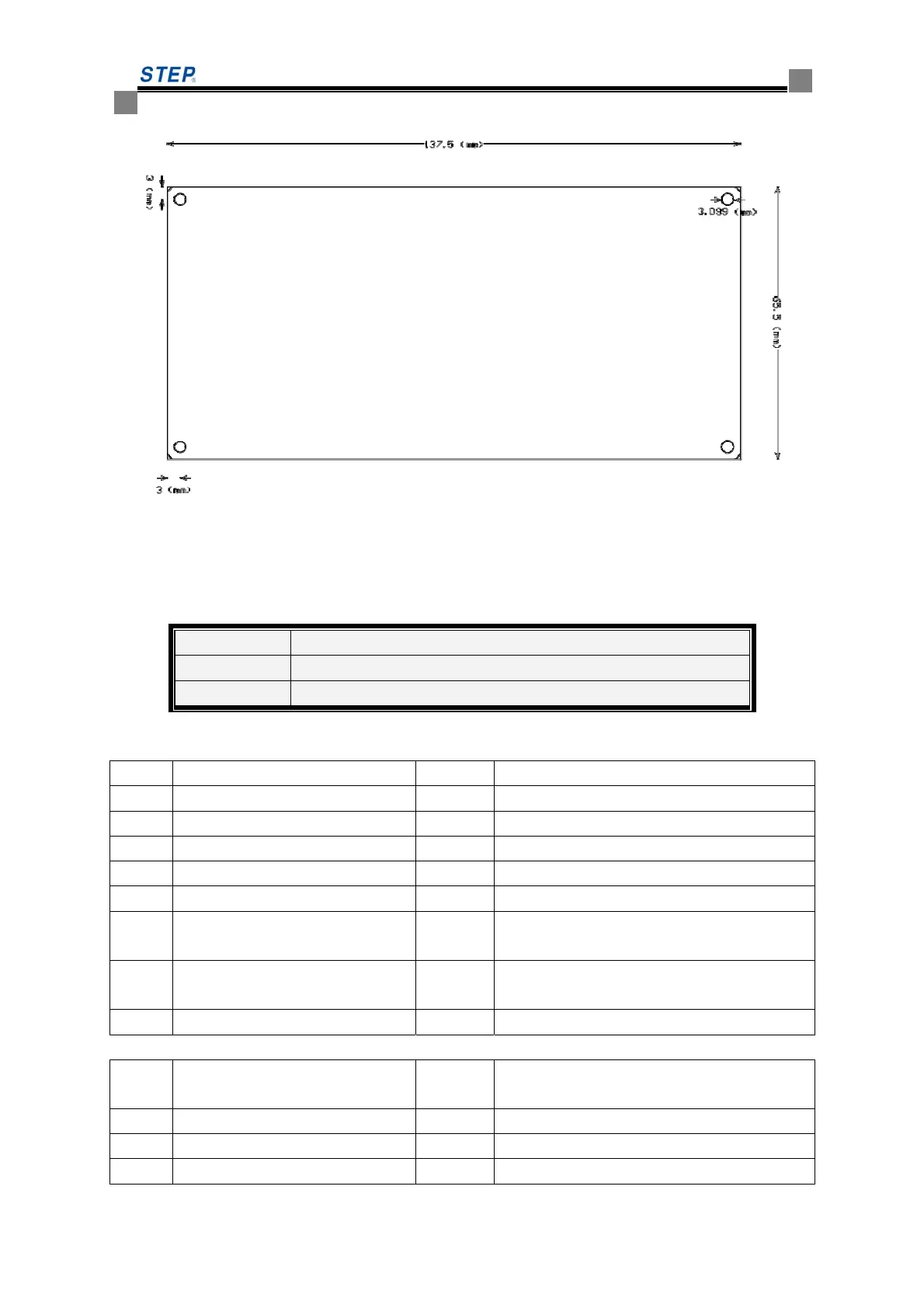

4.6.3.2 main extension board SM09IO/C plug-in and port definition and Configurable
content introduction
Tabl e 4. 5 IO main extension board SM09IO/C plug in specification
Tabl e 4. 6 IO
main extension board SM09IO/C Configurable content
JP1 input：
0 Emergency Levelling 1 earthquake
2 Back-up power 3 Overload
4 Full load 5 Light-load
6 Fireman 7 Elevator Lock-out
8 Self-tuning of Shaft Information 9 sealing star Detect
10 Back-up 11 Fire return
12 upward No 3 terminal
deceleration
13 downward No 3 terminal deceleration
14 upward No 4 terminal
deceleration
15 downward No 4 terminal deceleration
16 up limit 17 down limit
JP2 output：
0 pre door-opening slowdown
output（V<0.3m/s）
1 Fan output
2 Up 3 Down
4 Door lock 5 Door-zone
6 Front door open 7 Front door close
JP1
OQ/180D-3.81-8P，green
JP2
OQ-C/180D-5.08-7P，green
JP3
OQ/180D-3.81-4P，green
