Instruction Manual
for
AS380 Series Elevator Integrated Drive Controller
89

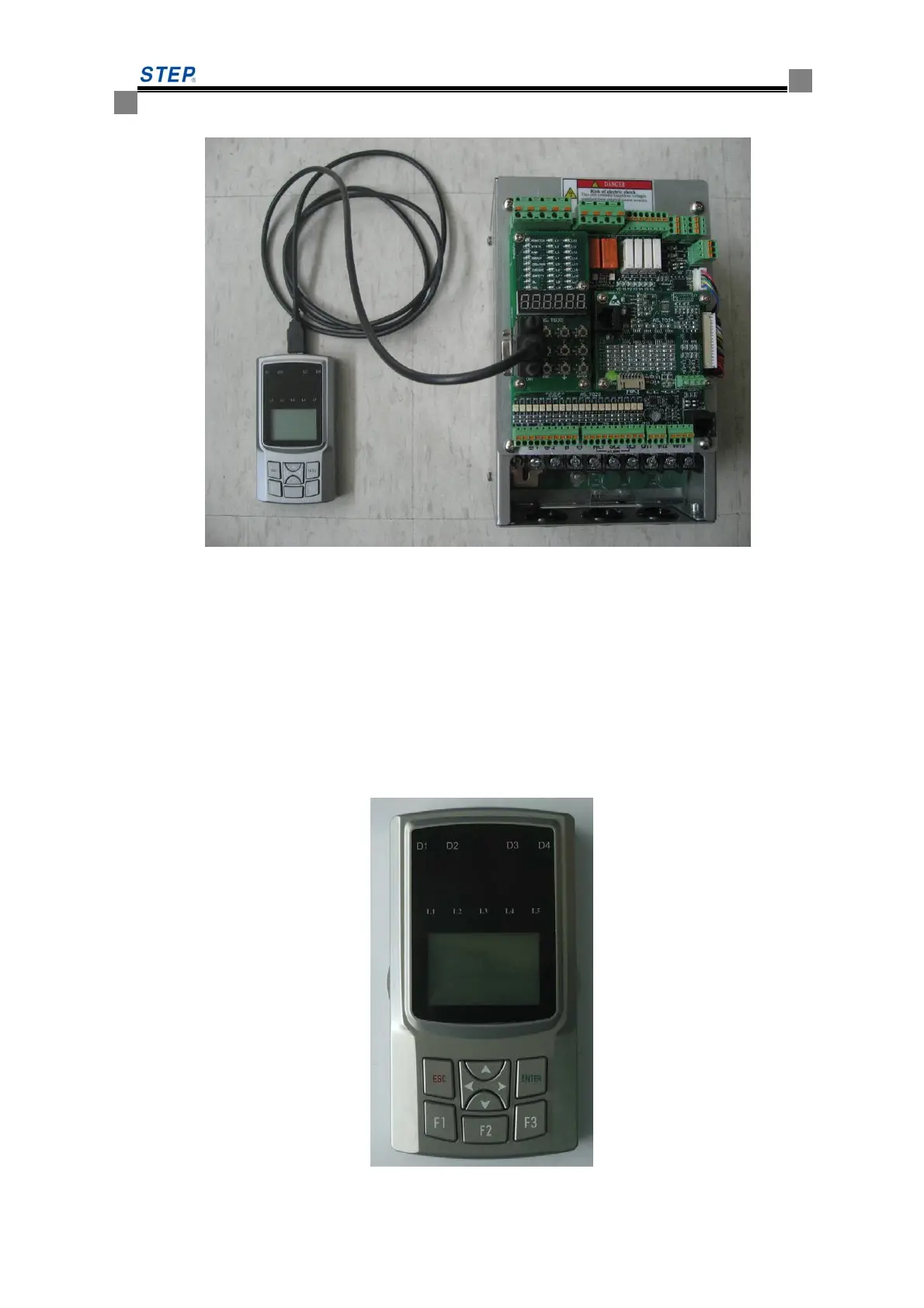

The following schematic diagram show how the integrated device connected to handheld operator
Fig. 5.3 the integrated device and handheld operator
Please note:
1) The connection of operator (including plug-in and pull out) can be done in hot plug mode when
the integrated device power on.
2) Do not knock or drop the operator and not to use it in bad environment.
5.2.3 Handheld operator function
The outer appearance of handheld operator is as blew fig 5.4. the detailed introduction about the
operation key function is listed in table 5.5
Fig 5.4 handheld operator outer appearance
