AS380 Series Elevator Integrated Drive Controller
120

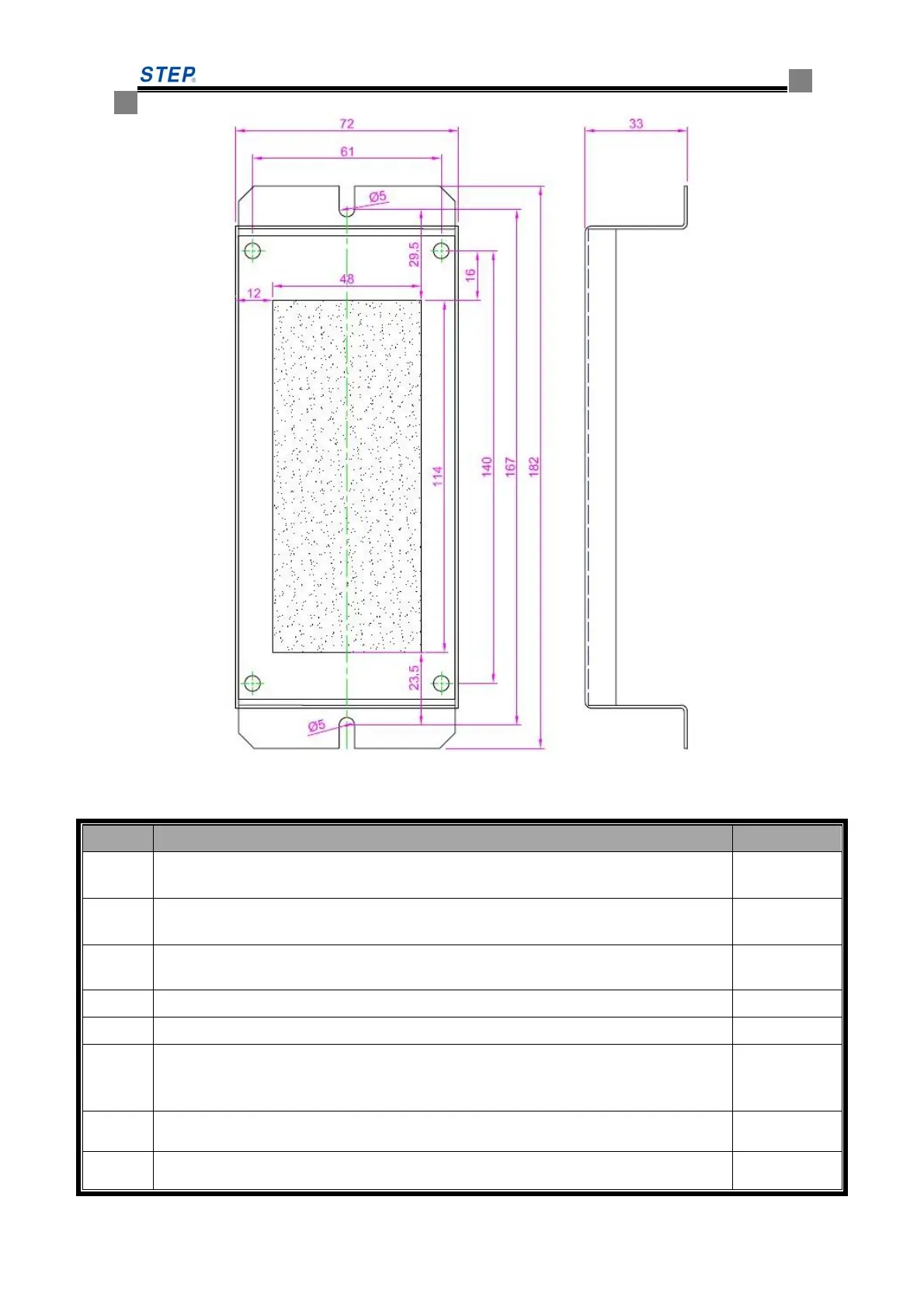

Fig.6.24 Mounting Dimensions of SM-04-VL16/A
Table 6.16 A SM-04-VL16/A plug-in specification and port definition
Serial Descriptions Remarks
JP1
Serial port, of which Pin 1 for TXV+, Pin 2 for TXV-, Pin 3 for TXA+ and Pin 4 for
TXA- respectively.
CH3.96-4
JP2
Up-call terminals, of which Pin 1- and Pin 2+ for button indicator, Pin 3 and Pin 4 for
button input.
CH2510-4
JP3
Down-call terminals, of which Pin 1- and Pin 2+ for button indicator, Pin 3 and Pin 4
for button input.
CH2510-4
JP4
Pin 3 and Pin 4 of JP5 connected to the normal open contact of elevator –lock switch CH2510-4
JP5
Pin 3 and Pin 4 of JP6 is the port for passenger button CH2510-4
SW2
The dip switch of serial communication terminal resistor , right turn mean the
connection of built-in 120Ω resistor
SW1.2
SW1.2 ON for display in English, OFF for display in Chinese and English together.
SW1.3
SW1.3 ON for 64 floor mode, otherwise, for 48 floor mode.
